4 Pieces Double Acting Hydraulic Piston Seals For Agricultural Machinery
product detail
Product Details
Style:
Double Acting Hydraulic Piston Seals
Material:
PU / POM / NBR
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Agricultural Machinery
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
KL38 Piston Compact Sets Are 4 Pieces Double Acting Seals Consisting Of Sealing Ring, Oring And 2 Guiding Rings
KL38 piston compact sets are 4 pieces double acting seals consisting of polyurethane sealing ring, energizer elastomer oring and 2 thermoplastic guiding rings.
Advantages
• Compact piston seal
• Economical sealing and guiding ring solution
• Easy Installation
• Economical sealing and guiding ring solution
• Easy Installation
Area of Application
• Agricultural machinery
• Industrial applications
• Industrial applications

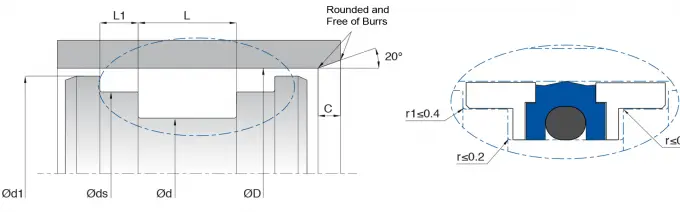

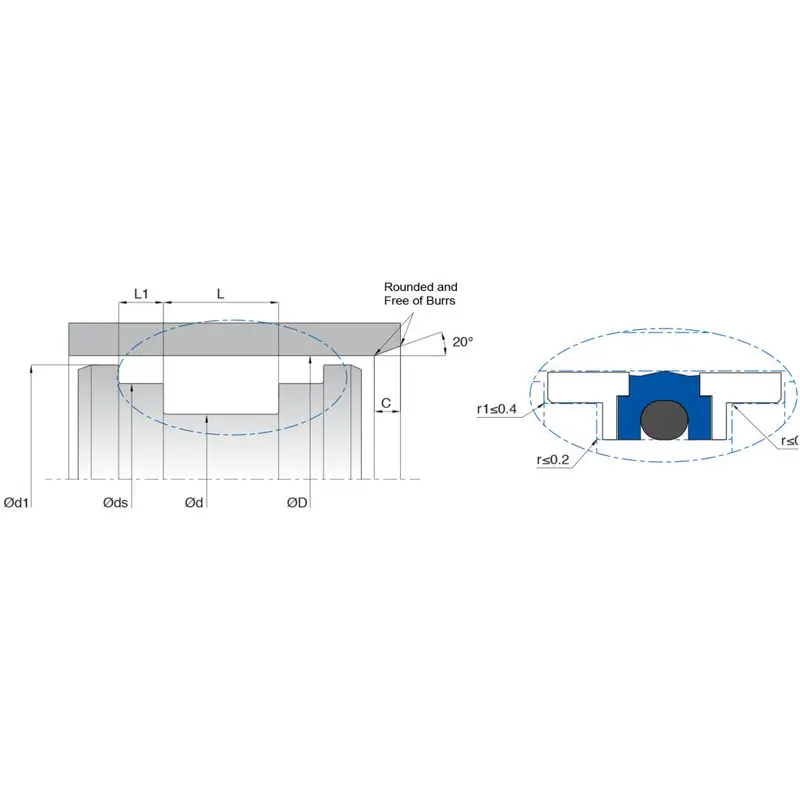

| D (H10) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | MATERIAL | |
| KL38 025-017 | 25 | 17 | 10 | 22 | 24 | 4 | 4 | PU |
| KL38 032-024 | 32 | 24 | 10 | 29 | 31 | 4 | 4 | PU |
| KL38 038.10-028.57 | 38.1 | 28.58 | 11.2 | 33.68 | 37.36 | 3.54 | 5 | PU |
| KL38 040-030 | 40 | 30 | 11 | 35.5 | 39 | 4 | 4 | PU |
| KL38 040-030/1 | 40 | 30 | 10 | 36.5 | 39 | 5 | 4 | PU |
| KL38 050.80-041.27 | 50.8 | 41.28 | 11.1 | 46.25 | 49.4 | 3.86 | 5 | PU |
| KL38 050-040 | 50 | 40 | 11 | 45.5 | 49 | 4 | 4 | PU |
| KL38 063.50-053.97 | 63.5 | 53.97 | 11.2 | 58.93 | 62.1 | 3.86 | 5 | PU |
| KL38 063-053 | 63 | 53 | 11 | 58.5 | 61.5 | 4 | 4 | PU |
| KL38 070-060 | 70 | 60 | 12.5 | 67 | 69 | 4 | 4.5 | PU |
| KL38 076.20-066.66 | 76.2 | 66.66 | 11.2 | 71.63 | 74.8 | 3.86 | 5 | PU |
| KL38 080-070 | 80 | 70 | 11 | 75.5 | 78.5 | 4 | 4.5 | PU |
| KL38 080-070/1 | 80 | 70 | 12.5 | 77 | 79 | 4 | 4.5 | PU |
| KL38 088.90-076.15 | 88.9 | 76.15 | 14.47 | 82.93 | 87.5 | 5.43 | 5 | PU |
| KL38 090-080 | 90 | 80 | 12.5 | 86 | 88.5 | 5 | 4.5 | PU |
| KL38 100-087 | 100 | 87 | 14 | 93.8 | 98.5 | 6 | 5 | PU |
| KL38 100-090 | 100 | 90 | 12.5 | 96 | 98.5 | 5 | 4.5 | PU |
