Custom Flexible Wire Braid Hydraulic Hose Various Covers Available
product detail
Wire Braid Hydraulic Hose Meets SAE 100 R1

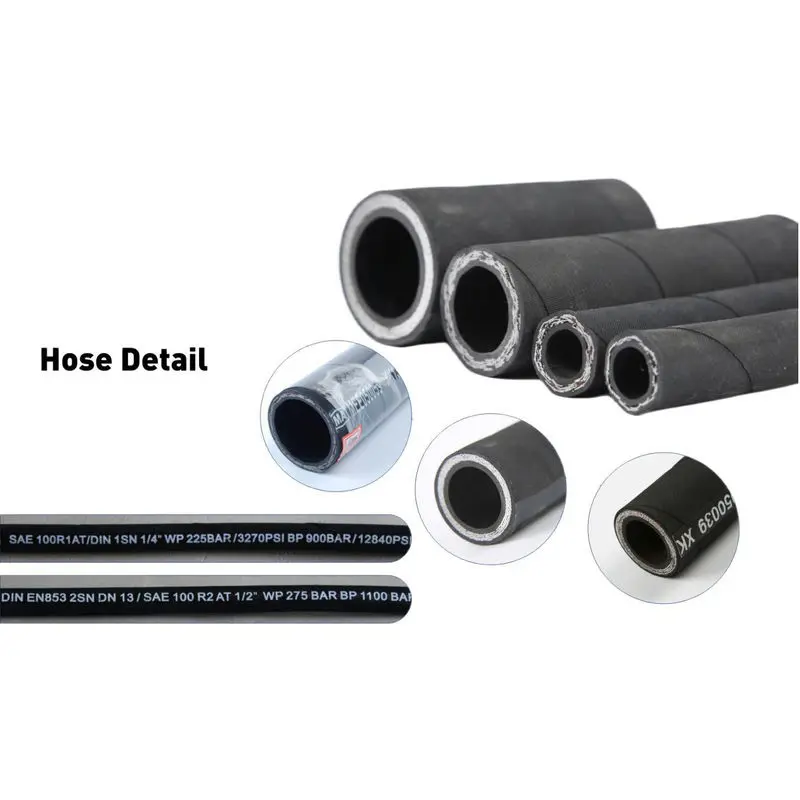

TUBE:
Oil-resistant synthetic rubber inner layer + steel wire braid + oil-resistant and weather-resistant synthetic rubber outer layer
Reinforcement:One braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note: Various covers available
Temperature range: -40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)

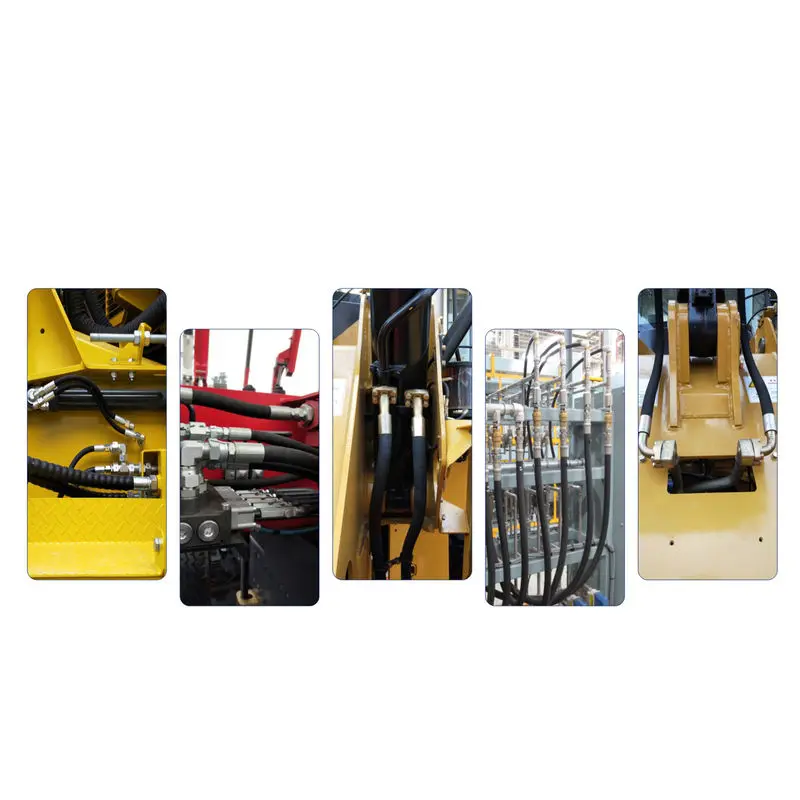

Applications:Suitable for petroleum-based hydraulic oil.

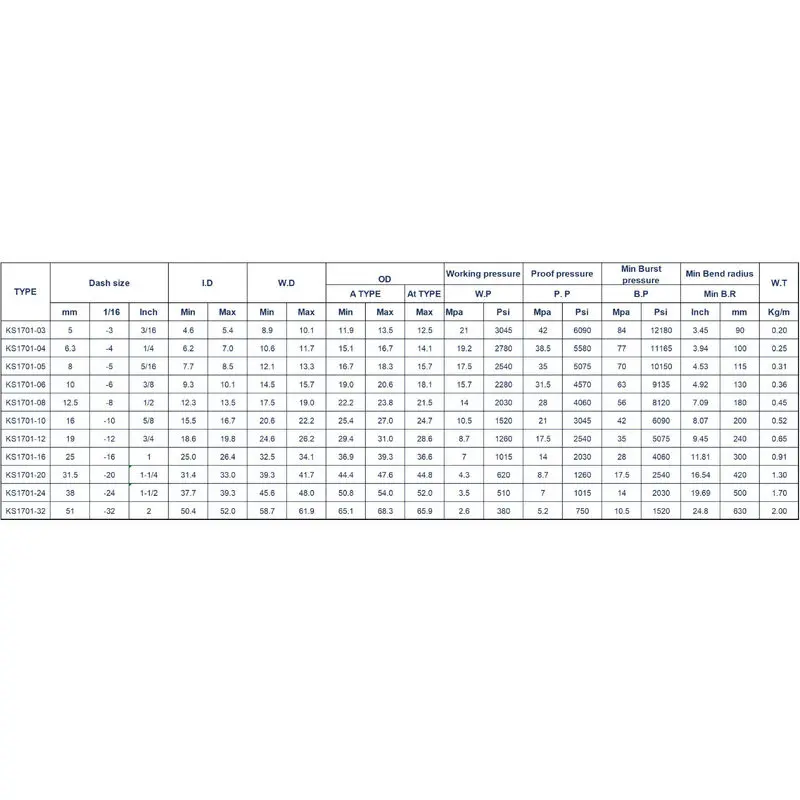

TYPE | Dash size | I.D | W.D | OD | Working pressure | Proof pressure | Min Burst pressure | Min Bend radius | W.T | ||||||||||
A TYPE | At TYPE | W.P | P. P | B.P | Min B.R | ||||||||||||||
mm | 1/16 | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
KS1701-03 | 5 | -3 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.45 | 90 | 0.20 |
KS1701-04 | 6.3 | -4 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.25 |
KS1701-05 | 8 | -5 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 4.53 | 115 | 0.31 |
KS1701-06 | 10 | -6 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 4.92 | 130 | 0.36 |
KS1701-08 | 12.5 | -8 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 7.09 | 180 | 0.45 |
KS1701-10 | 16 | -10 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 8.07 | 200 | 0.52 |
KS1701-12 | 19 | -12 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 9.45 | 240 | 0.65 |
KS1701-16 | 25 | -16 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 11.81 | 300 | 0.91 |
KS1701-20 | 31.5 | -20 | 1-1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 16.54 | 420 | 1.30 |
KS1701-24 | 38 | -24 | 1-1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 19.69 | 500 | 1.70 |
KS1701-32 | 51 | -32 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 5.2 | 750 | 10.5 | 1520 | 24.8 | 630 | 2.00 |
