Custom Pneumatic Rod Seals NBR / SAC Material For Open Grooves
product detail
Product Details
Name:
Custom Pneumatic Rod Seals
Material:
NBR SAC
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
1.0
Application:
• Pneumatic Cylinders • Recommended For Use In Cylinders According ISO 6432, 21287.
Pressure (max) Bar:
16
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

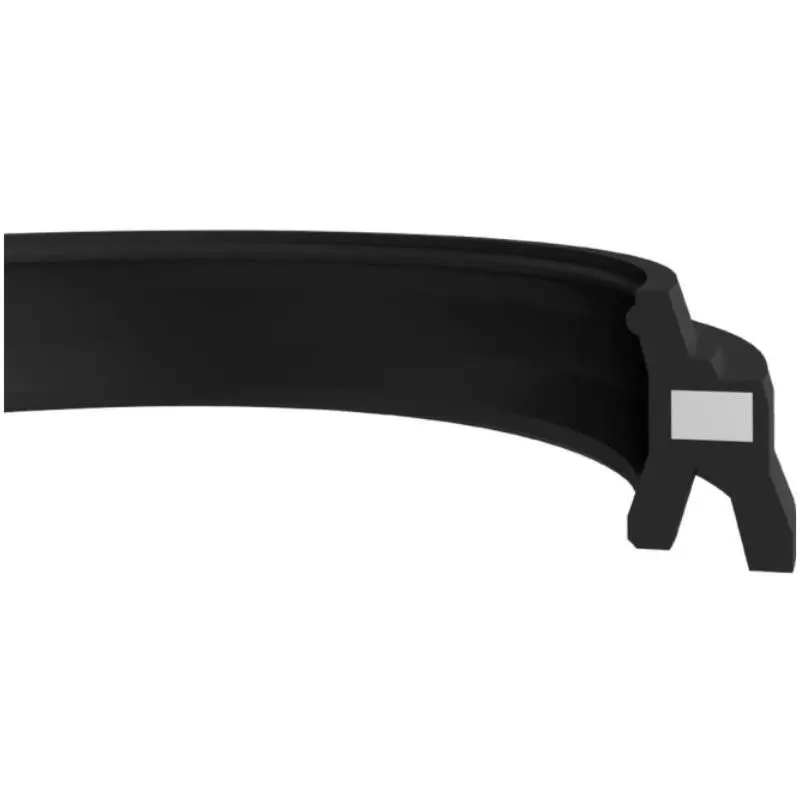

KL76 pneumatic rod seal is a single acting sealing element made of elastomer material and has a metal ring body inside for use in open grooves.
Advantages
• Superior wiping performance
• Superior sealing performance
• Wide range of dimensions
• Good adaptation to temperature changes thanks to the metal ring inside
• High quality raw material, dust-proof, water-proof, oil-proof
• Excellent durability in using and good sealing effect
• Wear resistance, long service life
• Show stable in high speed rotation.
Area of Application
• Pneumatic Cylinders
• Recommended for use in cylinders according ISO 6432, 21287.
