Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR
product detail
Product Details
Style:
Double Acting Piston Rod Seals
Material:
NBR
Pressure (max) Bar:
50
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
0.5
Application:
Light Duty Cylinders / Valves / Flanges
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

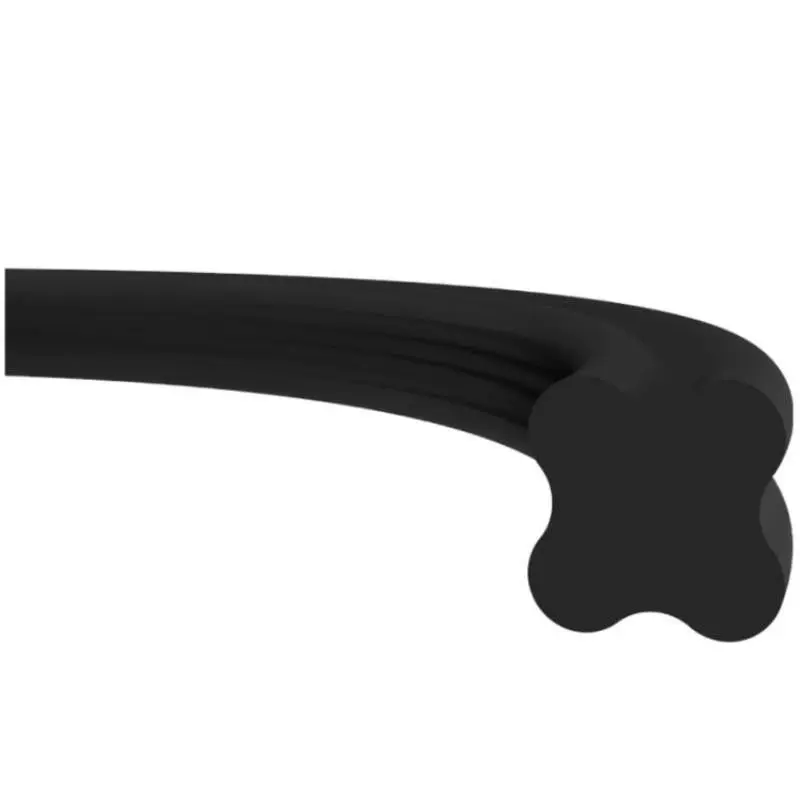

X-rings are double acting seals by elastomer materials, able to work as dynamic or static seal at many systems. It can be produced by FKM at the requirement of high temperature or chemical resistance.
Advantages
• Suitable for both static and dynamic applications
• Wide application area
• Low friction compared to o-rings
• No twisting in the housing
• Economical sealing solution for low pressure
Area of Application
• Hydraulic and pneumatic static applications
• Flanges
• Valves
• Light duty cylinders

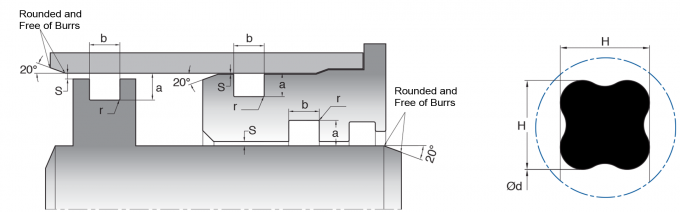

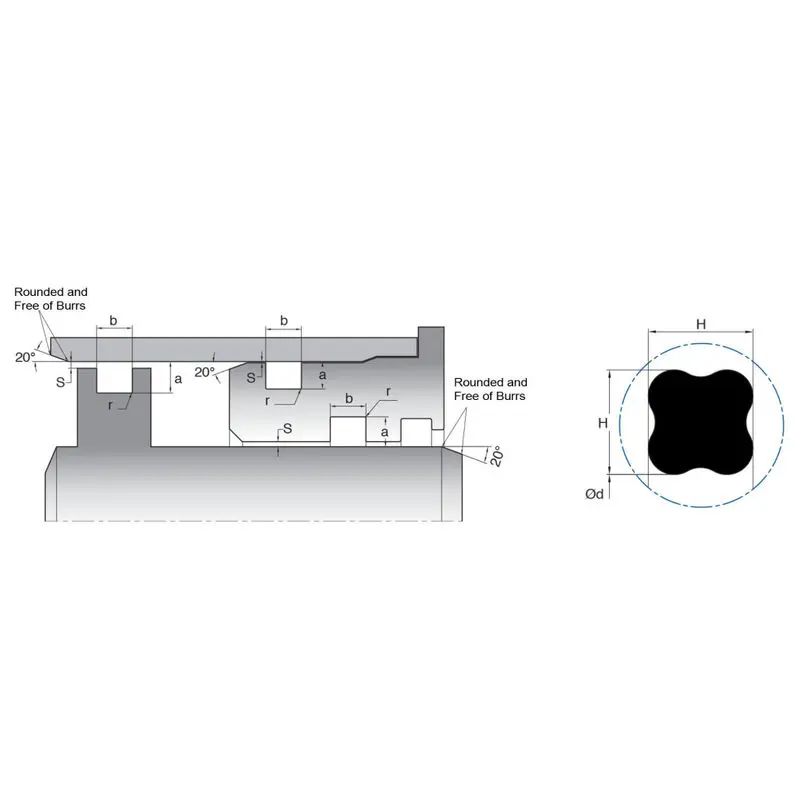

| d | H | (a)static | (a)dynamic | b (+0.2/-0) | r | s | MATERIAL | |
| KL25-0044817 | 4.48 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0052817 | 5.28 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0060717 | 6.07 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0076617 | 7.66 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0082017 | 8.2 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0092517 | 9.25 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0107826 | 10.78 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0123726 | 12.37 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0124217 | 12.42 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0139526 | 13.95 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0140017 | 14 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0154735 | 15.47 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0155426 | 15.54 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0156017 | 15.6 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0171717 | 17.17 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0186435 | 18.64 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0187226 | 18.72 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0187717 | 18.77 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0202235 | 20.22 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0202926 | 20.29 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0203517 | 20.35 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0218926 | 21.89 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0219517 | 21.95 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0234035 | 23.4 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0235217 | 23.52 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0249935 | 24.99 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0251217 | 25.12 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0265835 | 26.58 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0267017 | 26.7 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0281735 | 28.17 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0297535 | 29.75 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0298717 | 29.87 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0329235 | 32.92 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0345235 | 34.52 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0346517 | 34.65 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0361035 | 36.1 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0374753 | 37.47 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0376935 | 37.69 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0378217 | 37.82 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0406553 | 40.65 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0408735 | 40.87 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0441717 | 44.17 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0473517 | 47.35 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0501653 | 50.16 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0505217 | 50.52 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0533453 | 53.34 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0537017 | 53.7 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0568717 | 56.87 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0597053 | 59.7 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0600517 | 60.05 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0632217 | 63.22 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0662735 | 66.27 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0692253 | 69.22 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0695717 | 69.57 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0711226 | 71.12 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0726235 | 72.62 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0727517 | 72.75 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0755753 | 75.57 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0758726 | 75.87 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0759217 | 75.92 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0787453 | 78.74 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0789735 | 78.97 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-0822226 | 82.22 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0822717 | 82.27 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0885726 | 88.57 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0886217 | 88.62 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-0914453 | 91.44 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-0949226 | 92.92 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-0949717 | 94.97 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-1009753 | 100.97 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-1012726 | 101.27 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1013217 | 101.32 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-1076226 | 107.62 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1076717 | 107.62 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-1104953 | 110.49 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-1136753 | 113.67 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-1139726 | 113.97 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1140217 | 114.02 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-1200253 | 120.02 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-1200269 | 120.02 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1202535 | 120.25 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1203226 | 120.32 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1203717 | 120.37 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NBR |
| KL25-1234235 | 123.42 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1263769 | 126.37 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1266035 | 126.6 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1266726 | 126.67 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1329435 | 132.94 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1359069 | 135.9 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1393726 | 139.37 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1454269 | 145.42 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1457226 | 145.72 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1581253 | 158.12 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NBR |
| KL25-1581269 | 158.12 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1583535 | 158.35 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1584226 | 158.42 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1710535 | 171.05 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-1711126 | 171.11 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1774726 | 177.47 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1901726 | 190.17 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-1962269 | 196.22 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-1965226 | 196.52 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-2028726 | 202.87 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-2152769 | 215.27 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NBR |
| KL25-2155726 | 215.57 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-2219226 | 221.92 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-2345435 | 234.54 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-2346226 | 234.62 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NBR |
| KL25-2663035 | 266.3 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-2789935 | 278.99 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-2917035 | 291.7 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-3298035 | 329.8 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
| KL25-3552035 | 355.2 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NBR |
