Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation
product detail
Product Details
Temperature (max) °C:
-40/+110
Sliding Speed (max)- M/s:
1.0
Style:
Hydraulic Guiding Elements
Application:
Light And Medium Duty Cylinders
Material:
POM
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

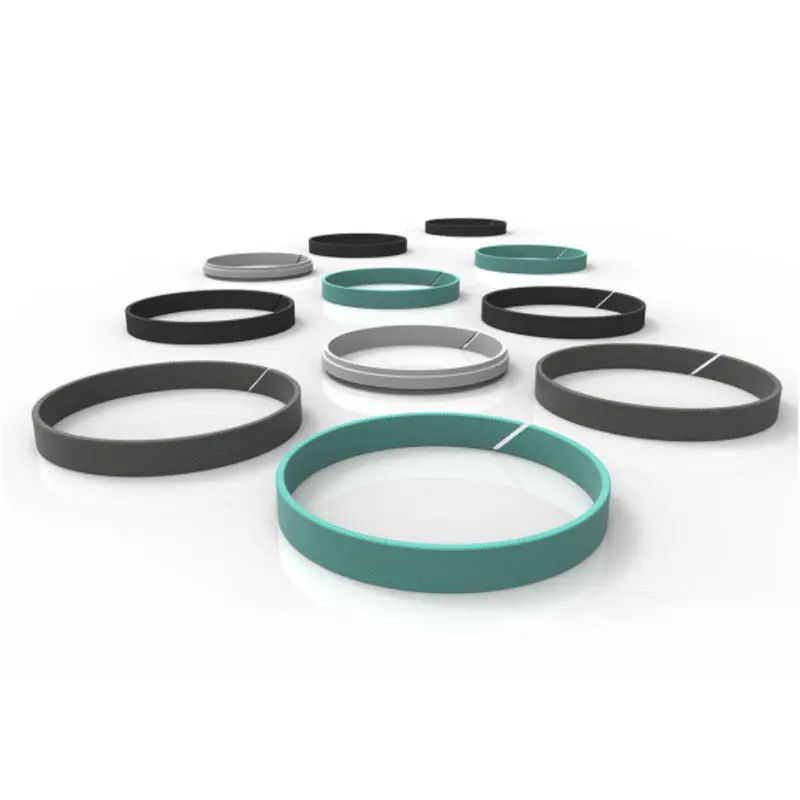

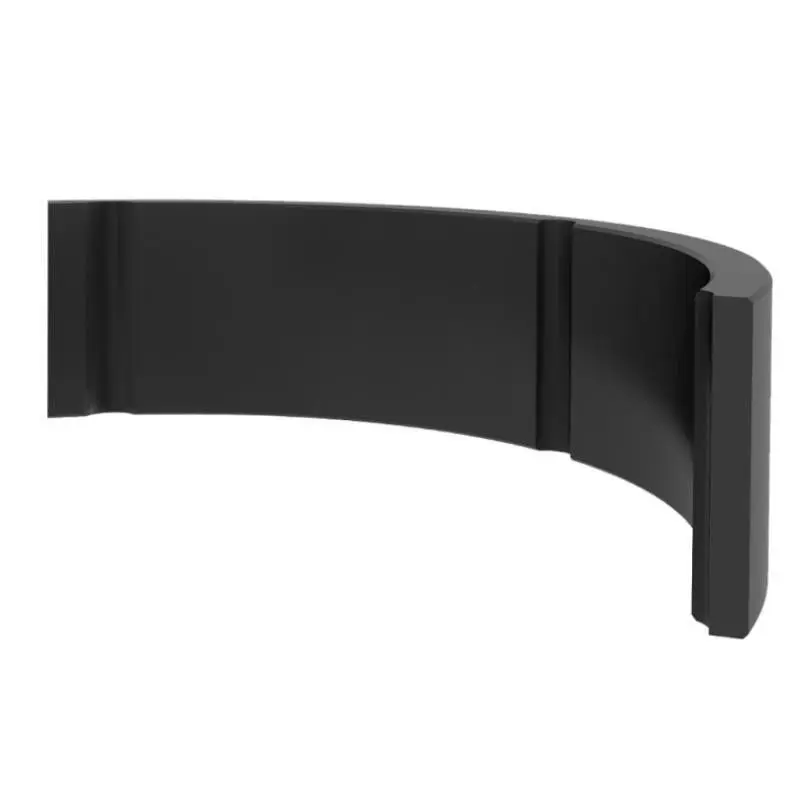

KL57 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.
BENEFITS:
• Extensive size range, either pre cut or coil lengths.
• Many sizes can be cut from one coil.
• Improves cylinder life.
Advantages
• Easy installation
• The high form stability at operating temperature range
• Wide dimension range
Area of Application
• Agricultural machinery
• Light and medium duty cylinders
• Mining
• Mobile hydraulics
• Off Highway Forestry
• Pneumatic cylinders for industrial application

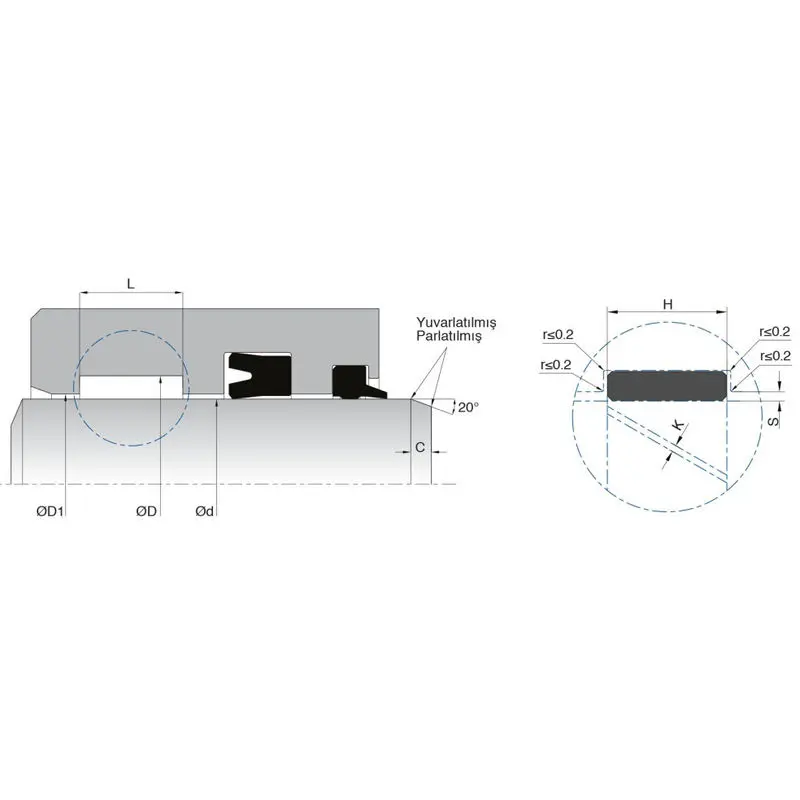

| d (f8) | D (H8) | D1 (H9) | L (+0.2/-0) | H | MATERIAL | |
| KL57-020 | 20 | 30 | 20.6 | 13 | 12.8 | POM |
| KL57-025 | 25 | 35 | 25.6 | 13 | 12.8 | POM |
| KL57-030 | 30 | 40 | 30.6 | 13 | 12.8 | POM |
| KL57-035 | 35 | 45 | 35.6 | 13 | 12.8 | POM |
| KL57-040 | 40 | 50 | 40.6 | 16 | 15.8 | POM |
| KL57-045 | 45 | 55 | 45.6 | 16 | 15.8 | POM |
| KL57-045/1 | 45 | 60 | 45.6 | 16 | 15.8 | POM |
| KL57-055 | 55 | 65 | 55.6 | 16 | 15.8 | POM |
| KL57-065 | 65 | 75 | 65.6 | 16 | 15.8 | POM |
| KL57-075 | 75 | 85 | 75.6 | 16 | 15.8 | POM |
