KL08 Single Acting Rod Seals Wear Resistant Easy Installation
product detail
Product Details
Style:
Single Acting Rod Seals Hydraulic
Temperature (max) °C:
-35/+100
Pressure (max) Bar:
400
Material:
PU
Sliding Speed (max)- M/s:
0.5
Application:
Injection Moulding Machines / Mobile Machinery
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

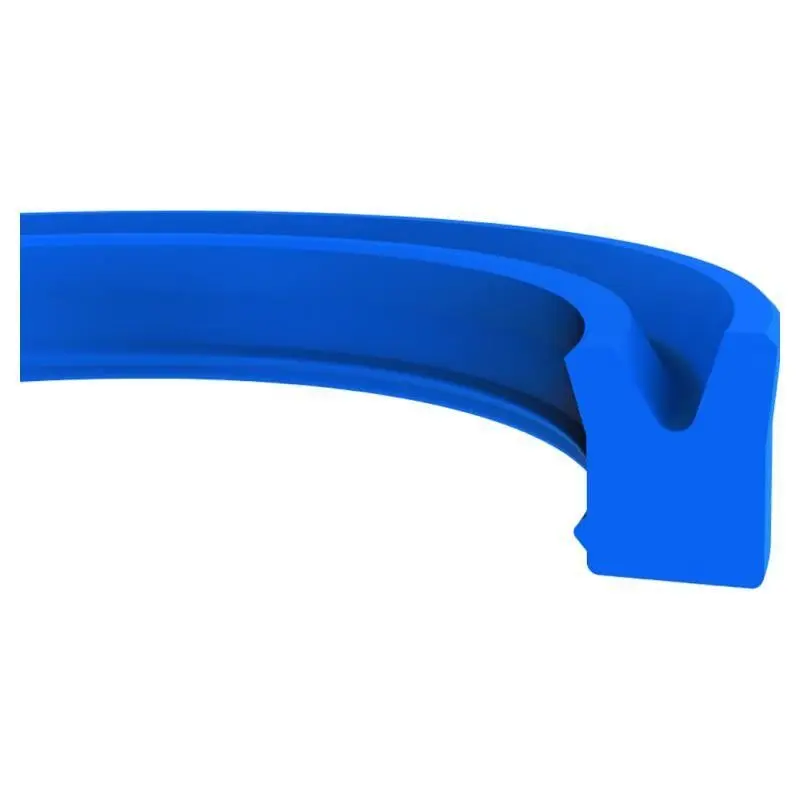

KL08 is a single acting rod seal with an extra lip designed for a wide range of hydraulic applications. K33 lip design offers an optimum oil film while the secondary lip provides additional wiping performance and system safety.
Advantages
• Secondary sealing lip provides extra protection against the
ingress of dirt particles.
ingress of dirt particles.
• Very good sealing thanks to the cut processed lip structure
• High wear resistance
• Easy installation into closed grooves
• Wide range of standard products
• Simple groove design
Area of Application
• Presses
• Construction machinery
• Cranes
• Injection moulding machines
• Mobile machinery
• Industrial cylinders

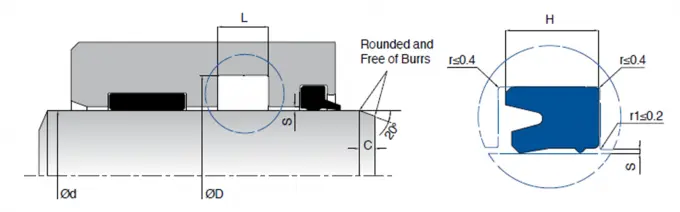

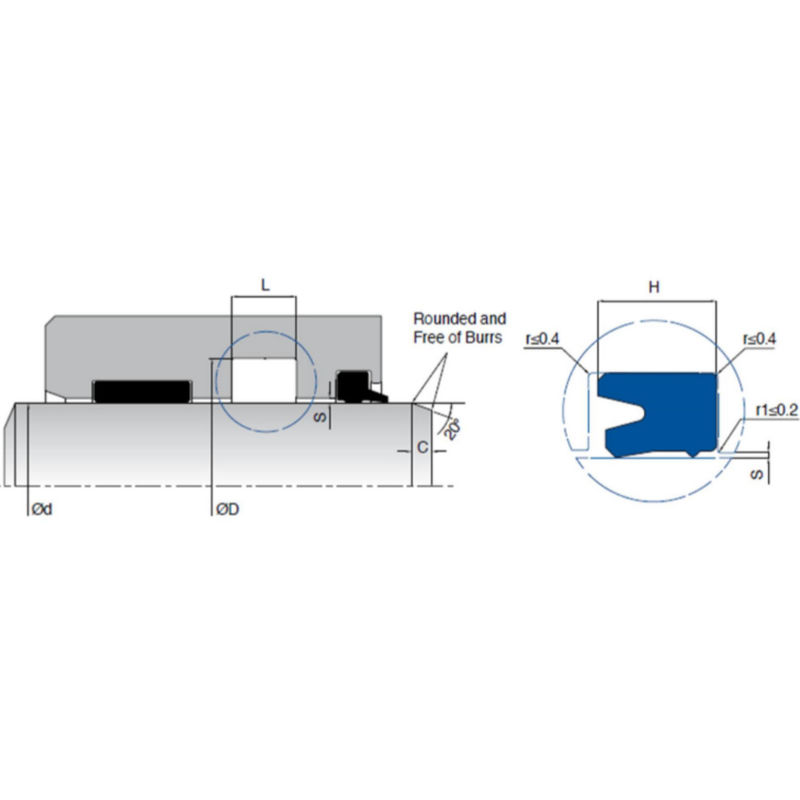

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL08-006 | 6 | 9 | 4 | 3.5 | 2.5 | PU |
| KL08-012 | 12 | 24 | 9 | 8 | 5.5 | PU |
| KL08-012/1 | 12 | 22 | 8 | 7 | 5.5 | PU |
| KL08-014 | 14 | 24 | 8.2 | 7.2 | 5.5 | PU |
| KL08-015 | 15.87 | 22.22 | 7.14 | 6.35 | 3.5 | PU |
| KL08-016 | 16 | 22 | 5 | 4.5 | 3.5 | PU |
| KL08-016/1 | 16 | 26 | 9 | 8 | 5.5 | PU |
| KL08-016/2 | 16 | 24 | 6 | 5 | 4.5 | PU |
| KL08-016/3 | 16 | 26 | 8.3 | 7.3 | 5.5 | PU |
| KL08-017 | 17 | 23 | 4.5 | 4 | 3.5 | PU |
| KL08-018 | 18 | 24 | 5.9 | 4.9 | 3.5 | PU |
| KL08-018/1 | 18 | 26 | 9 | 8 | 4.5 | PU |
| KL08-018/2 | 18 | 26 | 6 | 5 | 4.5 | PU |
| KL08-018/3 | 18 | 24 | 5 | 4.2 | 3.5 | PU |
| KL08-018/5 | 18 | 28 | 8.3 | 7.3 | 5.5 | PU |
| KL08-019 | 19.05 | 25.4 | 7.14 | 6.35 | 3.5 | PU |
| KL08-020 | 20 | 30 | 7 | 6 | 5.5 | PU |
| KL08-020/1 | 20 | 30 | 9 | 8 | 5.5 | PU |
| KL08-020/2 | 20 | 28 | 7 | 6 | 4.5 | PU |
| KL08-020/3 | 20 | 30 | 11 | 10 | 5.5 | PU |
| KL08-020/4 | 20 | 26 | 6.5 | 5.5 | 3.5 | PU |
| KL08-020/5 | 20 | 26 | 6 | 5 | 3.5 | PU |
| KL08-020/6 | 20 | 28 | 9 | 8 | 4.5 | PU |
| KL08-020/7 | 20 | 28 | 6 | 5 | 4.5 | PU |
| KL08-020/8 | 20 | 26 | 5 | 4.5 | 3.5 | PU |
| KL08-020/9 | 20 | 28 | 6.7 | 5.7 | 4.5 | PU |
| KL08-020/10 | 20 | 30 | 8 | 7 | 5.5 | PU |
| KL08-020/11 | 20 | 26 | 5.8 | 4.8 | 3.5 | PU |
| KL08-020/12 | 20 | 28 | 6.3 | 5.3 | 4.5 | PU |
| KL08-020/13 | 20 | 30 | 8.3 | 7.3 | 5.5 | PU |
| KL08-022 | 22 | 30 | 8 | 7 | 4.5 | PU |
| KL08-022/1 | 22 | 32 | 7 | 6 | 5.5 | PU |
| KL08-022/2 | 22 | 32 | 9 | 8 | 5.5 | PU |
| KL08-022/3 | 22 | 30 | 9 | 8 | 4.5 | PU |
| KL08-022/4 | 22 | 32 | 8 | 7 | 5.5 | PU |
| KL08-022/5 | 22.4 | 30 | 6 | 5 | 4.5 | PU |
| KL08-022/6 | 22 | 30 | 7 | 6 | 4.5 | PU |
| KL08-022/7 | 22.4 | 30 | 6 | 5.5 | 4.5 | PU |
| KL08-022/8 | 22 | 30 | 6.5 | 5.5 | 4.5 | PU |
| KL08-022/9 | 22 | 32 | 8.3 | 7.3 | 5.5 | PU |
| KL08-022/11 | 22.22 | 28.58 | 7.14 | 6.35 | 3.5 | PU |
| KL08-025 | 25 | 35 | 7 | 6 | 5.5 | PU |
| KL08-025/1 | 25 | 40 | 11 | 10 | 6 | PU |
| KL08-025/2 | 25 | 33 | 7 | 6 | 4.5 | PU |
| KL08-025/3 | 25 | 35 | 8 | 7 | 5.5 | PU |
| KL08-025/4 | 25 | 33 | 9 | 8 | 4.5 | PU |
| KL08-025/5 | 25 | 33 | 7.8 | 6.8 | 4.5 | PU |
| KL08-025/6 | 25 | 33 | 8.3 | 7.3 | 4.5 | PU |
| KL08-025/7 | 25 | 33 | 6.5 | 5.5 | 4.5 | PU |
| KL08-025/8 | 25.4 | 31.5 | 5.2 | 4.76 | 3.5 | PU |
| KL08-025/9 | 25 | 33 | 7.5 | 6.5 | 4.5 | PU |
| KL08-025/10 | 25 | 35 | 9 | 8 | 5.5 | PU |
| KL08-025/11 | 25 | 35 | 11 | 10 | 5.5 | PU |
| KL08-025/12 | 25 | 33 | 11 | 10 | 4.5 | PU |
| KL08-025/13 | 25 | 33 | 6 | 5 | 4.5 | PU |
| KL08-025/14 | 25 | 35 | 8.3 | 7.3 | 5.5 | PU |
| KL08-025/15 | 25 | 33 | 6.7 | 5.7 | 4.5 | PU |
| KL08-025/16 | 25.4 | 31.75 | 7.14 | 6.35 | 3.5 | PU |
| KL08-025/17 | 25.4 | 34.93 | 8.7 | 7.94 | 5.5 | PU |
| KL08-025/19 | 25 | 35 | 6 | 5 | 5.5 | PU |
| KL08-025/20 | 25 | 32 | 8 | 7 | 4 | PU |
| KL08-028 | 28 | 38 | 11 | 10 | 5.5 | PU |
| KL08-028/1 | 28 | 38 | 8 | 7 | 5.5 | PU |
| KL08-028/2 | 28 | 36 | 6.8 | 5.8 | 4.5 | PU |
| KL08-028/3 | 28 | 35.5 | 6 | 5 | 4.5 | PU |
| KL08-028/4 | 28 | 38 | 6.8 | 5.8 | 5.5 | PU |
| KL08-028/5 | 28 | 36 | 9 | 8 | 4.5 | PU |
| KL08-028/6 | 28 | 36 | 8.3 | 7.3 | 4.5 | PU |
| KL08-028/7 | 28 | 38 | 9 | 8 | 5.5 | PU |
| KL08-028/8 | 28 | 38 | 8.3 | 7.3 | 5.5 | PU |
| KL08-030 | 30 | 40 | 9 | 8 | 5.5 | PU |
| KL08-030/1 | 30 | 45 | 11 | 10 | 6 | PU |
| KL08-030/2 | 30 | 40 | 8 | 7 | 5.5 | PU |
| KL08-030/3 | 30 | 40 | 11 | 10 | 5.5 | PU |
| KL08-030/4 | 30 | 42 | 11 | 10 | 5.5 | PU |
| KL08-030/5 | 30 | 43 | 10 | 9 | 5.5 | PU |
| KL08-030/6 | 30 | 38 | 8 | 7 | 4.5 | PU |
| KL08-030/7 | 30 | 38 | 7 | 6 | 4.5 | PU |
| KL08-030/8 | 30 | 40 | 7 | 6 | 5.5 | PU |
| KL08-030/9 | 30 | 38 | 6.5 | 5.5 | 4.5 | PU |
| KL08-030/10 | 30 | 38 | 6.7 | 5.7 | 4.5 | PU |
| KL08-030/11 | 30 | 37 | 8 | 7 | 4 | PU |
| KL08-030/12 | 30 | 40 | 6.5 | 5.5 | 5.5 | PU |
| KL08-030/13 | 30 | 40 | 8.3 | 7.3 | 5.5 | PU |
| KL08-031 | 31.75 | 38.1 | 7.14 | 6.35 | 3.5 | PU |
| KL08-031/1 | 31.75 | 41.28 | 8.7 | 7.94 | 5.5 | PU |
| KL08-031/2 | 31.75 | 41.28 | 5.2 | 4.76 | 5.5 | PU |
| KL08-031/3 | 31.75 | 44.45 | 7.14 | 6.35 | 5.5 | PU |
| KL08-032 | 32 | 40 | 7 | 6 | 4.5 | PU |
| KL08-032/1 | 32 | 40 | 8 | 7 | 4.5 | PU |
| KL08-032/2 | 32 | 42 | 11 | 10 | 5.5 | PU |
| KL08-032/3 | 32 | 42 | 8.3 | 7.3 | 5.5 | PU |
| KL08-032/4 | 32 | 40 | 9 | 8 | 4.5 | PU |
| KL08-032/5 | 32 | 42 | 7 | 6 | 5.5 | PU |
| KL08-032/7 | 32 | 40 | 6.8 | 5.8 | 4.5 | PU |
| KL08-034 | 34.93 | 41.28 | 7.14 | 6.35 | 3.5 | PU |
| KL08-035 | 35 | 45 | 9 | 8 | 5.5 | PU |
| KL08-035/1 | 35 | 50 | 11 | 10 | 6 | PU |
| KL08-035/2 | 35 | 43 | 6.7 | 5.7 | 4.5 | PU |
