KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic
product detail
Product Details
Style:
High Pressure Rod Seal Hydraulic
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
700
Material:
NBR / FABRIC NBR / TPE / POM
Sliding Speed (max)- M/s:
0.5
Application:
Loading Platforms / Mining Industry
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
KL09 Heavy Duty Hydraulic Rod Seal Set In High Extrusion Resistance At High Pressures And Excellent Sealing Performance

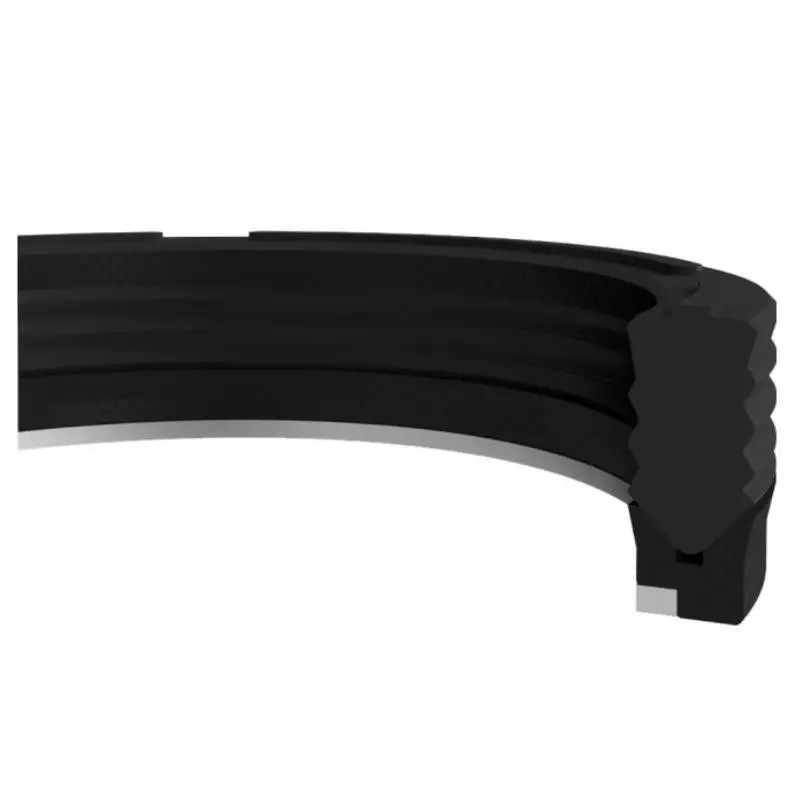

KL09 heavy duty hydraulic rod seal set consists of one elastomer sealing ring, one elastomer or fabric elastomer extrusion ring and one thermoplastic backup ring. The back-up ring and exturision ring supply long term service life while the elastomer ring gives an ability of superior sealing at variable and high pressures.
Advantages
• Excellent sealing performance at variable pressures
• Effective sealing during vibration, sudden and shock loading
• High extrusion resistance at high pressures
Area of Application
• Construction machinery
• Loading platforms
• Cranes
• Heavy duty cylinders
• Mining industry

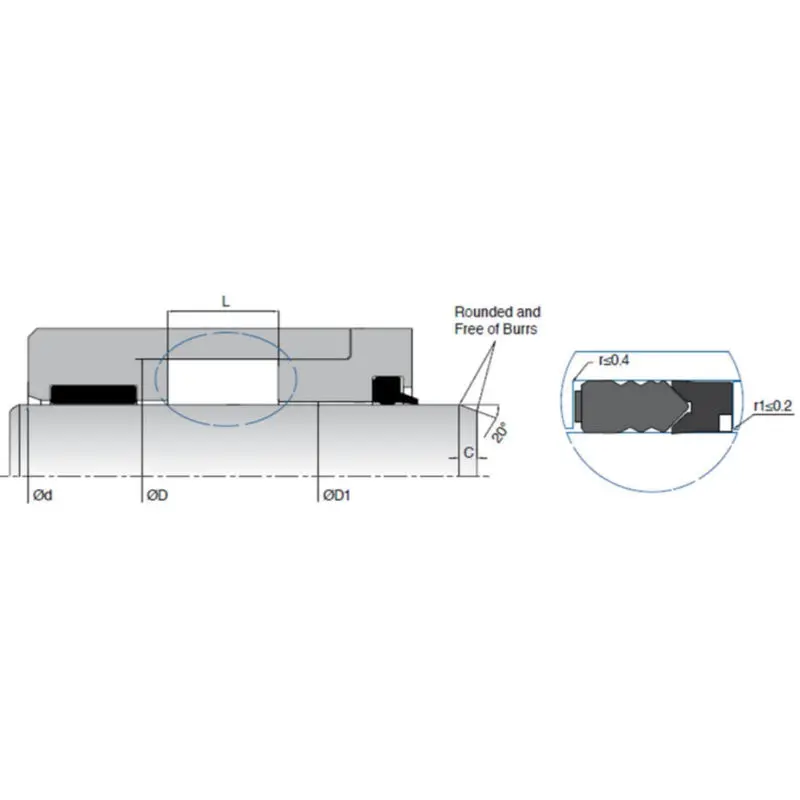

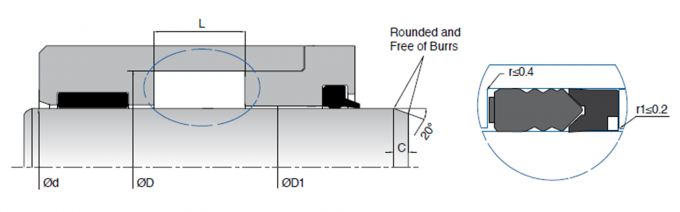

| d (f8) | D (H10) | L (+0.4/-0) | D1 (+0.1/-0) | C | MATERIAL | |
| KL09-030 | 30 | 43 | 20 | 30.4 | 5 | NBR |
| KL09-032 | 32 | 47 | 22.5 | 32.4 | 5 | NBR |
| KL09-035 | 35 | 47 | 22.5 | 35.4 | 5 | NBR |
| KL09-040 | 40 | 55 | 22.5 | 40.4 | 5 | NBR |
| KL09-045 | 45 | 60 | 22.5 | 45.4 | 5 | NBR |
| KL09-050 | 50 | 65 | 22.5 | 50.4 | 5 | NBR |
| KL09-050/1 | 50 | 65 | 24.5 | 50.4 | 5 | NBR |
| KL09-055 | 55 | 70 | 22.5 | 55.4 | 5 | NBR |
| KL09-060 | 60 | 75 | 22.5 | 60.4 | 5 | NBR |
| KL09-063 | 63 | 83 | 37 | 63.4 | 5 | NBR |
| KL09-070 | 70 | 85 | 22.5 | 70.4 | 5 | NBR |
| KL09-070/1 | 70 | 90 | 30 | 70.4 | 5 | NBR |
| KL09-080 | 80 | 100 | 30 | 80.4 | 5 | NBR |
| KL09-080/1 | 80 | 95 | 22.5 | 80.4 | 5 | NBR |
| KL09-085 | 85 | 95 | 22.5 | 85.4 | 5 | NBR |
| KL09-090 | 90 | 110 | 30 | 90.4 | 5 | NBR |
| KL09-100 | 100 | 120 | 30 | 100.4 | 7 | NBR |
| KL09-110 | 110 | 130 | 32.5 | 110.4 | 7 | NBR |
| KL09-115 | 115 | 130 | 30 | 115.7 | 7 | NBR |
| KL09-115/1 | 115 | 125 | 22.5 | 115.7 | 7 | NBR |
| KL09-120 | 120 | 140 | 30 | 120.7 | 7 | NBR |
| KL09-125 | 125 | 145 | 29.6 | 125.7 | 7 | NBR |
| KL09-140 | 140 | 155 | 22.5 | 140.7 | 7 | NBR |
| KL09-140/1 | 140 | 160 | 30 | 140.7 | 7 | NBR |
| KL09-140/2 | 140 | 160 | 28 | 140.7 | 7 | NBR |
| KL09-160 | 160 | 180 | 28 | 160.7 | 7 | NBR |
| KL09-180 | 180 | 205 | 35 | 180.7 | 7 | NBR |
| KL09-200 | 200 | 225 | 35 | 200.7 | 7 | NBR |
| KL09-220 | 220 | 240 | 22.5 | 220.7 | 10 | NBR |
| KL09-220/1 | 220 | 245 | 35 | 220.7 | 10 | NBR |
| KL09-260 | 260 | 280 | 30 | 260.7 | 10 | NBR |
| KL09-260/1 | 260 | 285 | 35 | 260.7 | 10 | NBR |
