KL10 Single Acting Rod Seal Low Friction For Wind Turbines / Servo Cylinders
product detail
Product Details
Style:
Single Acting Rod Seal Low Friction
Temperature (max) °C:
-30/+105 -30/+100
Pressure (max) Bar:
400
Material:
PTFE / NBR / PU / NBR
Sliding Speed (max)- M/s:
15.0 / 1.0
Application:
Wind Turbines / Servo Cylinders / Forklifts
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
KL10 singe acting rod seal consists of PTFE sealing ring and energizer elastomer o-ring. K35 is preffered in many applications as a single rod seal or as tandem while offering good sealing performance and low friction.
Advantages
• Low friction and free of stick-slip
• Excellent sealing at static and dynamic conditions
• Long service life
• High extrusion resistance
• Works at high speeds and frequencies
• Designed for grooves according to ISO 7425/1
Area of Application
• Cranes
• Injection moulding machines
• Hydraulic press cylinders
• Forklifts
• Construction machinery
• Servo cylinders
• Hydraulic breakers
• Wind turbines
• Automotive industry

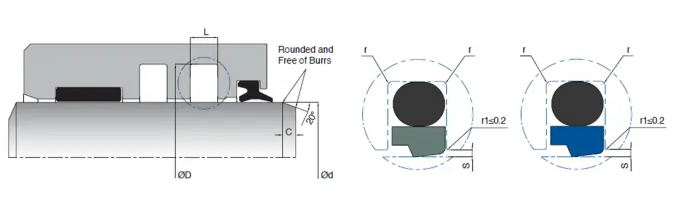

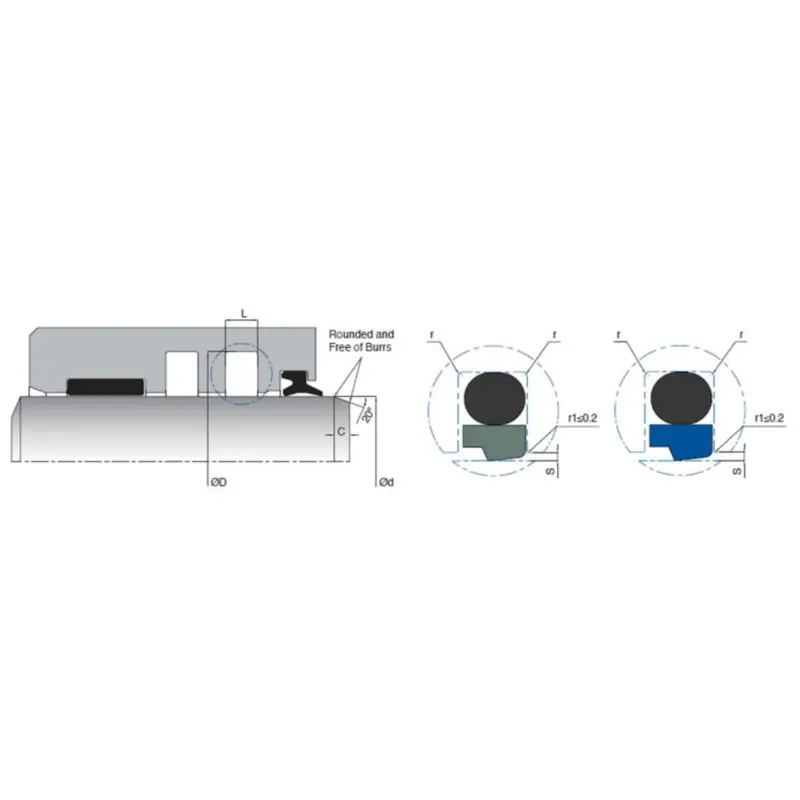

| d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL | |
| KL10-003 | 3 | 7.9 | 2.2 | 0.4 | 2 | 4.48x1.78 | PTFE |
| KL10-004 | 4 | 8.9 | 2.2 | 0.4 | 2 | 5.28x1.78 | PTFE |
| KL10-005 | 5 | 9.9 | 2.2 | 0.4 | 2 | 6.75x1.78 | PTFE |
| KL10-006 | 6 | 10.9 | 2.2 | 0.4 | 2 | 7.66x1.78 | PTFE |
| KL10-008 | 8 | 12.9 | 2.2 | 0.4 | 2 | 9.66x1.78 | PTFE |
| KL10-008/1 | 8 | 15.3 | 3.2 | 0.6 | 2.5 | 10.78x2.62 | PTFE |
| KL10-009 | 9 | 16.2 | 3.2 | 0.6 | 2.5 | 11.91x2.62 | PTFE |
| KL10-009/1 | 9 | 13.9 | 2.2 | 0.4 | 2 | 10.82x1.78 | PTFE |
| KL10-010 | 10 | 14.9 | 2.2 | 0.4 | 2 | 11.11x1.78 | PTFE |
| KL10-010/1 | 10 | 17.3 | 3.2 | 0.6 | 2.5 | 13.10x2.62 | PTFE |
| KL10-012 | 12 | 19.3 | 3.2 | 0.6 | 2.5 | 13.95x2.62 | PTFE |
| KL10-012/1 | 12 | 16.9 | 2.2 | 0.4 | 2 | 14.00x1.78 | PTFE |
| KL10-014 | 14 | 21.3 | 3.2 | 0.6 | 2.5 | 17.13x2.62 | PTFE |
| KL10-014/1 | 14 | 18.9 | 2.2 | 0.4 | 2 | 15.60x1.78 | PTFE |
| KL10-015 | 15 | 19.9 | 2.2 | 0.4 | 2 | 17.17x1.78 | PTFE |
| KL10-015/1 | 15 | 22.3 | 3.2 | 0.6 | 2.5 | 17.86x2.62 | PTFE |
| KL10-016 | 16 | 23.3 | 3.2 | 0.6 | 2.5 | 18.72x2.62 | PTFE |
| KL10-016/1 | 16 | 20.9 | 2.2 | 0.4 | 2 | 17.17x1.78 | PTFE |
| KL10-018 | 18 | 25.3 | 3.2 | 0.6 | 2.5 | 20.29x2.62 | PTFE |
| KL10-018/1 | 18 | 22.9 | 2.2 | 0.4 | 2 | 18.77x1.78 | PTFE |
| KL10-019 | 19 | 29.7 | 4.2 | 1 | 3.5 | 23.4x3.53 | PTFE |
| KL10-020 | 20 | 30.7 | 4.2 | 1 | 3.5 | 24.99x3.53 | PTFE |
| KL10-020/1 | 20 | 27.3 | 3.2 | 0.6 | 2.5 | 22.22x2.62 | PTFE |
| KL10-022 | 22 | 32.7 | 4.2 | 1 | 3.5 | 26.58x3.53 | PTFE |
| KL10-022/1 | 22 | 29.5 | 3.2 | 0.6 | 2.5 | 25.07x2.62 | PTFE |
| KL10-022/2 | 22 | 29.3 | 3.2 | 0.6 | 2.5 | 25.07x2.62 | PTFE |
| KL10-025 | 25 | 35.7 | 4.2 | 1 | 3.5 | 29.75x3.53 | PTFE |
| KL10-025/1 | 25 | 32.3 | 3.2 | 0.6 | 2.5 | 26.64x2.62 | PTFE |
| KL10-026 | 26 | 36.7 | 4.2 | 1 | 3.5 | 29.75x3.53 | PTFE |
| KL10-028 | 28 | 38.7 | 4.2 | 1 | 3.5 | 32.92x3.53 | PTFE |
| KL10-028 PU | 28 | 38.7 | 4.2 | 1 | 3.5 | 32.92x3.53 | PU |
| KL10-028/1 | 28 | 35.3 | 3.2 | 0.6 | 2.5 | 29.82x2.62 | PTFE |
| KL10-030 | 30 | 40.7 | 4.2 | 1 | 3.5 | 34.52x3.53 | PTFE |
| KL10-030/1 | 30 | 37.3 | 3.2 | 0.6 | 2.5 | 33.00x2.62 | PTFE |
| KL10-032 | 32 | 42.7 | 4.2 | 1 | 3.5 | 36.10x3.53 | PTFE |
| KL10-032/1 | 32 | 39.3 | 3.2 | 0.6 | 2.5 | 34.59x2.62 | PTFE |
| KL10-035 | 35 | 45.7 | 4.2 | 1 | 3.5 | 39.69x3.53 | PTFE |
| KL10-035/1 | 35 | 42.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PTFE |
| KL10-036 | 36 | 46.7 | 4.2 | 1 | 3.5 | 40.87x3.53 | PTFE |
| KL10-036 PU | 36 | 46.7 | 4.2 | 1 | 3.5 | 40.87x3.53 | PU |
| KL10-036/1 | 36 | 43.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PTFE |
| KL10-036/1 PU | 36 | 43.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PU |
| KL10-037 | 37 | 47.7 | 4.2 | 1 | 3.5 | 41.28x3.53 | PTFE |
| KL10-038 | 38 | 48.8 | 4.2 | 1 | 3.5 | 42.86x3.53 | PTFE |
| KL10-038/1 | 38 | 53.1 | 6.3 | 1.3 | 5.5 | 43.82x5.33 | PTFE |
| KL10-040 | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5.33 | PTFE |
| KL10-040 PU | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5.33 | PU |
| KL10-040/1 | 40 | 50.7 | 4.2 | 1 | 3.5 | 44.45x3.53 | PTFE |
| KL10-040/1 PU | 40 | 50.7 | 4.2 | 1 | 3.5 | 44.45x3.53 | PU |
| KL10-042 | 42 | 52.7 | 4.2 | 1 | 3.5 | 46.04x3.53 | PTFE |
| KL10-042/1 | 42 | 57.1 | 6.3 | 1.3 | 5.5 | 47.00x5.33 | PTFE |
| KL10-043 | 43 | 53.7 | 4.2 | 1 | 3.5 | 47.22x3.53 | PTFE |
| KL10-045 | 45 | 60.1 | 6.3 | 1.3 | 5.5 | 50.16x5.33 | PTFE |
| KL10-045/1 | 45 | 55.7 | 4.2 | 1 | 3.5 | 49.21x3.53 | PTFE |
| KL10-048 | 48 | 63.1 | 6.3 | 1.3 | 5.5 | 53.34x5.33 | PTFE |
| KL10-048/1 | 48 | 58.7 | 4.2 | 1 | 3.5 | 52.39x3.53 | PTFE |
| KL10-050 | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PTFE |
| KL10-050 PU | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PU |
| KL10-050/1 | 50 | 60.7 | 4.2 | 1 | 3.5 | 53.57x3.53 | PTFE |
| KL10-050/1 PU | 50 | 60.7 | 4.2 | 1 | 3.5 | 53.57x3.53 | PU |
| KL10-052 | 52 | 62.7 | 4.2 | 1 | 3.5 | 56.74x3.53 | PTFE |
| KL10-052/1 | 52 | 67.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PTFE |
| KL10-055 | 55 | 70.1 | 6.3 | 1.3 | 5.5 | 59.70x5.33 | PTFE |
| KL10-055/1 | 55 | 65.7 | 4.2 | 1 | 3.5 | 58.74x3.53 | PTFE |
| KL10-056 | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PTFE |
| KL10-056 PU | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PU |
| KL10-056/1 | 56 | 66.7 | 4.2 | 1 | 3.5 | 59.92x3.53 | PTFE |
| KL10-057 | 57 | 72.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PTFE |
| KL10-060 | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66.04x5.33 | PTFE |
| KL10-060 PU | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66.04x5.33 | PU |
| KL10-060/1 | 60 | 70.7 | 4.2 | 1 | 3.5 | 63.09x3.53 | PTFE |
| KL10-063 | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69.22x5.33 | PTFE |
| KL10-063 PU | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69.22x5.33 | PU |
| KL10-063/1 | 63 | 73.7 | 4.2 | 1 | 3.5 | 66.27x3.53 | PTFE |
| KL10-065 | 65 | 80.1 | 6.3 | 1.3 | 3.5 | 72.40x5.33 | PTFE |
| KL10-065/1 | 65 | 75.7 | 4.2 | 1 | 3.5 | 69.85x3.53 | PTFE |
| KL10-067 | 67 | 82.1 | 6.3 | 1.3 | 5.5 | 72.40x5.33 | PTFE |
| KL10-068 | 68 | 83.1 | 6.3 | 1.3 | 5.5 | 72.40x5.33 | PTFE |
| KL10-068/1 | 68 | 78.7 | 4.2 | 1 | 3.5 | 72.62x3.53 | PTFE |
| KL10-070 | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75.57x5.33 | PTFE |
| KL10-070 PU | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75.57x5.33 | PU |
| KL10-070/1 | 70 | 80.7 | 4.2 | 1 | 3.5 | 73.03x3.53 | PTFE |
| KL10-070/2 | 70 | 90.5 | 8.1 | 1.8 | 7.5 | 77.00x7 | PTFE |
| KL10-073 | 73 | 88.1 | 6.3 | 1.3 | 5.5 | 78.74x5.33 | PTFE |
| KL10-075 | 75 | 90.1 | 6.3 | 1.3 | 5.5 | 79.77x5.33 | PTFE |
| KL10-075/2 | 75 | 85.7 | 4.2 | 1 | 3.5 | 78.97x3.53 | PTFE |
| KL10-078 | 78 | 93.1 | 6.3 | 1.3 | 5.5 | 81.92x5.33 | PTFE |
| KL10-080 | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85.09x5.33 | PTFE |
| KL10-080 PU | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85.09x5.33 | PU |
| KL10-080/1 | 80 | 90.7 | 4.2 | 1 | 3.5 | 85.32x3.53 | PTFE |
| KL10-085 | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91.44x5.33 | PTFE |
| KL10-085 PU | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91.44x5.33 | PU |
| KL10-085/1 | 85 | 95.7 | 4.2 | 1 | 3.5 | 88.50x3.53 | PTFE |
| KL10-085/2 | 85 | 105.5 | 8.1 | 1.8 | 7.5 | 92.00x7 | PTFE |
| KL10-090 | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94.62x5.33 | PTFE |
| KL10-090 PU | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94.62x5.33 | PU |
| KL10-090/1 | 90 | 100.7 | 4.2 | 1 | 3.5 | 94.84x3.53 | PTFE |
| KL10-092 | 92 | 107.1 | 6.3 | 1.3 | 5.5 | 97.80x5.33 | PTFE |
| KL10-095 | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100.97x5.33 | PTFE |
| KL10-095 PU | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100.97x5.33 | PU |
| KL10-095/1 | 95 | 115.5 | 8.1 | 1.8 | 7.5 | 104.14x6.99 | PTFE |
| KL10-100 | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104.14x5.33 | PTFE |
| KL10-100 PU | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104.14x5.33 | PU |
| KL10-100/1 | 100 | 110.7 | 4.2 | 1 | 3.5 | 104.37x3.53 | PTFE |
| KL10-105 | 105 | 125.5 | 8.1 | 1.8 | 7.5 | 113.67x6.99 | PTFE |
| KL10-105/1 | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110.49x5.33 | PTFE |
| KL10-105/1 PU | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110.49x5.33 | PU |
| KL10-110 | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116.84x5.33 | PTFE |
| KL10-110 PU | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116.84x5.33 | PU |
| KL10-110/1 | 110 | 130.5 | 8.1 | 1.8 | 7.5 | 116.84x6.99 | PTFE |
| KL10-110/2 | 110 | 120.7 | 4.2 | 1 | 3.5 | 113.90x3.53 | PTFE |
| KL10-115 | 115 | 130.1 | 6.3 | 1.3 | 5.5 | 120.02x5.33 | PTFE |
| KL10-120 | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126.57x5.33 | PTFE |
| KL10-120 PU | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126.57x5.33 | PU |
| KL10-125 | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129.54x5.33 | PTFE |
| KL10-125 PU | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129.54x5.33 | PU |
| KL10-125/1 | 125 | 145.5 | 8.1 | 1.8 | 7.5 | 132.72x6.99 | PTFE |
| KL10-127 | 127 | 142.1 | 6.3 | 1.3 | 5.5 | 130.20x5.33 | PTFE |
| KL10-130 | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135.90x5.33 | PTFE |
| KL10-130 PU | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135.90x5.33 | PU |
| KL10-130/1 | 130 | 150.5 | 8.1 | 1.8 | 7.5 | 139.07x6.99 | PTFE |
| KL10-132 | 132 | 147.1 | 6.3 | 1.3 | 5.5 | 135.9x5.33 | PTFE |
| KL10-135 | 135 | 150.1 | 6.3 | 1.3 | 5.5 | 139.07x5.33 | PU |
| KL10-137 | 137 | 152.1 | 6.3 | 1.3 | 5.5 | 142.24x5.33 | PTFE |
| KL10-138 | 138 | 153.1 | 6.3 | 1.3 | 5.5 | 142.24x5.33 | PTFE |
| KL10-140 | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145.42x5.33 | PTFE |
| KL10-140 PU | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145.42x5.33 | PU |
| KL10-140/1 | 140 | 160.5 | 8.1 | 1.8 | 7.5 | 145.42x6.99 | PTFE |
| KL10-145 | 145 | 160.1 | 6.3 | 1.3 | 5.5 | 151.77x5.33 | PTFE |
| KL10-145/1 | 145 | 165.5 | 8.1 | 1.8 | 7.5 | 151.77x6.99 | PTFE |
| KL10-150 | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155.00x5.33 | PTFE |
| KL10-150 PU | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155.00x5.33 | PU |
| KL10-150/1 | 150 | 170.5 | 8.1 | 1.8 | 7.5 | 158.12x6.99 | PTFE |
| KL10-153 | 153 | 168.1 | 6.3 | 1.3 | 5.5 | 158.12x5.33 | PTFE |
| KL10-155 | 155 | 170.1 | 6.3 | 1.3 | 5.5 | 158.12x5.33 | PTFE |
| KL10-160 | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164.47x5.33 | PTFE |
| KL10-160 PU | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164.47x5.33 | PU |
| KL10-160/1 | 160 | 180.5 | 8.1 | 1.8 | 7.5 | 168.3x6.99 | PTFE |
| KL10-165 | 165 | 180.1 | 6.3 | 1.3 | 5.5 | 170.82x5.33 | PTFE |
| KL10-170 | 170 | 185.1 | 6.3 | 1.3 | 5.5 | 177.17x5.33 | PTFE |
| KL10-170/1 | 170 | 190.5 | 8.1 | 1.8 | 7.5 | 177.17x6.99 | PTFE |
| KL10-172/1 | 172 | 192.5 | 8.1 | 1.8 | 7.5 | 177.17x6.99 | PTFE |
| KL10-175 | 175 | 190.1 | 6.3 | 1.3 | 5.5 | 177.17x5.33 | PTFE |
| KL10-180 | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183.52x5.33 | PTFE |
| KL10-180 PU | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183.52x5.33 | PU |
| KL10-180/1 | 180 | 200.5 | 8.1 | 1.8 | 5.5 | 187.30x6.99 | PTFE |
| KL10-185 | 185 | 200.1 | 6.3 | 1.3 | 5.5 | 189.87x5.33 | PTFE |
| KL10-190 | 190 | 205.1 | 6.3 | 1.3 | 5.5 | 196.22x5.33 | PTFE |
| KL10-192 | 192 | 207.1 | 6.3 | 1.3 | 5.5 | 196.22x5.33 | PTFE |
| KL10-195 | 195 | 210.1 | 6.3 | 1.3 | 5.5 | 202.57x5.33 | PTFE |
| KL10-200 | 200 | 220.5 | 8.1 | 1.8 | 7.5 | 208.92x6.99 | PTFE |
| KL10-200/1 | 200 | 215.1 | 6.3 | 1.3 | 5.5 | 202.57x5.33 | PTFE |
| KL10-205 | 205 | 225.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PTFE |
| KL10-210 | 210 | 230.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PTFE |
| KL10-212 | 212 | 232.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PTFE |
| KL10-215 | 215 | 235.5 | 8.1 | 1.8 | 7.5 | 221.62x6.99 | PTFE |
| KL10-220 | 220 | 240.5 | 8.1 | 1.8 | 7.5 | 227.97x6.99 | PTFE |
| KL10-225 | 225 | 245.5 | 8.1 | 1.8 | 7.5 | 234.32x6.99 | PTFE |
| KL10-230 | 230 | 250.5 | 8.1 | 1.8 | 7.5 | 240.67x6.99 | PTFE |
| KL10-235 | 235 | 255.5 | 8.1 | 1.8 | 7.5 | 240.67x6.99 | PTFE |
| KL10-240 | 240 | 260.5 | 8.1 | 1.8 | 7.5 | 247.00x6.99 | PTFE |
| KL10-245 | 245 | 265.5 | 8.1 | 1.8 | 7.5 | 253.57x6.99 | PTFE |
| KL10-250 | 250 | 270.5 | 8.1 | 1.8 | 7.5 | 259.70x6.99 | PTFE |
| KL10-260 | 260 | 284 | 8.1 | 1.8 | 8 | 272.40x6.99 | PTFE |
| KL10-260/1 | 260 | 280.5 | 8.1 | 1.8 | 7.5 | 266.07x6.99 | PTFE |
| KL10-265 | 265 | 289 | 8.1 | 1.8 | 8 | 278.77x6.99 | PTFE |
| KL10-270 | 270 | 294 | 8.1 | 1.8 | 8 | 278.77x6.99 | PTFE |
| KL10-275 | 275 | 299 | 8.1 | 1.8 | 8 | 285.10x6.99 | PTFE |
| KL10-280 | 280 | 304 | 8.1 | 1.8 | 8 | 291.47x6.99 | PTFE |
| KL10-285 | 285 | 309 | 8.1 | 1.8 | 8 | 297.88x6.99 | PTFE |
| KL10-290 | 290 | 314 | 8.1 | 1.8 | 8 | 297.88x6.99 | PTFE |
| KL10-295 | 295 | 319 | 8.1 | 1.8 | 8 | 304.17x6.99 | PTFE |
| KL10-300 | 300 | 324 | 8.1 | 1.8 | 8 | 310.50x6.99 | PTFE |
| KL10-300/1 | 300 | 320.5 | 8.1 | 1.8 | 7.5 | 310.50x6.99 | PTFE |
| KL10-310 | 310 | 334 | 8.1 | 1.8 | 8 | 316.87x6.99 | PTFE |
| KL10-320 | 320 | 344 | 8.1 | 1.8 | 5.5 | 329.57x6.99 | PTFE |
| KL10-330 | 330 | 354 | 8.1 | 1.8 | 8 | 342.27x6.99 | PTFE |
| KL10-340 | 340 | 364 | 8.1 | 1.8 | 8 | 354.90x6.99 | PTFE |
| KL10-345 | 345 | 369 | 8.1 | 1.8 | 8 | 354.90x6.99 | PTFE |
| KL10-350 | 350 | 374 | 8.1 | 1.8 | 8 | 367.67x6.99 | PTFE |
| KL10-360 | 360 | 384 | 8.1 | 1.8 | 8 | 367.67x6.99 | PTFE |
| KL10-370 | 370 | 394 | 8.1 | 1.8 | 8 | 380.37x6.99 | PTFE |
| KL10-375 | 375 | 399 | 8.1 | 1.8 | 8 | 380.37x6.99 | PTFE |
| KL10-380 | 380 | 404 | 8.1 | 1.8 | 8 | 393.07x6.99 | PTFE |
| KL10-390 | 390 | 414 | 8.1 | 1.8 | 8 | 405.26x6.99 | PTFE |
| KL10-400 | 400 | 424 | 8.1 | 1.8 | 8 | 417.96x6.99 | PTFE |
| KL10-405 | 405 | 429 | 8.1 | 1.8 | 8 | 417.96x6.99 | PTFE |
| KL10-410 | 410 | 434 | 8.1 | 1.8 | 8 | 417.96x6.99 | PTFE |
| KL10-420 | 420 | 444 | 8.1 | 1.8 | 8 | 430.66x6.99 | PTFE |
| KL10-430 | 430 | 454 | 8.1 | 1.8 | 8 | 443.36x6.99 | PTFE |
| KL10-435 | 435 | 459 | 8.1 | 1.8 | 8 | 443.36x6.99 | PTFE |
| KL10-440 | 440 | 464 | 8.1 | 1.8 | 8 | 443.36x6.99 | PTFE |
| KL10-450 | 450 | 474 | 8.1 | 1.8 | 8 | 456.06x6.99 | PTFE |
| KL10-460 | 460 | 484 | 8.1 | 1.8 | 8 | 468.76x6.99 | PTFE |
| KL10-470 | 470 | 494 | 8.1 | 1.8 | 8 | 481.46x6.99 | PTFE |
| KL10-480 | 480 | 504 | 8.1 | 1.8 | 8 | 494.16x6.99 | PTFE |
| KL10-490 | 490 | 514 | 8.1 | 1.8 | 8 | 494.16x6.99 | PTFE |
| KL10-500 | 500 | 524 | 8.1 | 1.8 | 8 | 506.86x6.99 | PTFE |
| KL10-510 | 510 | 534 | 8.1 | 1.8 | 8 | 532.26x6.99 | PTFE |
| KL10-520 | 520 | 544 | 8.1 | 1.8 | 8 | 532.26x6.99 | PTFE |
| KL10-530 | 530 | 554 | 8.1 | 1.8 | 8 | 532.26x6.99 | PTFE |
| KL10-540 | 540 | 564 | 8.1 | 1.8 | 8 | 557.66x6.99 | PTFE |
| KL10-550 | 550 | 574 | 8.1 | 1.8 | 8 | 557.66x6.99 | PTFE |
| KL10-560 | 560 | 584 | 8.1 | 1.8 | 8 | 582.68x6.99 | PTFE |
| KL10-570 | 570 | 594 | 8.1 | 1.8 | 8 | 582.68x6.99 | PTFE |
