KL100 TPU Double Lip Wiper Seal Red / Blue / Black for Pneumatic Cylinders
product detail
Product Details
Name:
TPU Double Lip Wiper Seal
Material:
PU
Temperature (max) °C:
-40/+100
Sliding Speed (max)- M/s:
1.0
Area Of Application:
Pneumatic Cylinders
Color:
Red / Blue / Black / Customer Color
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

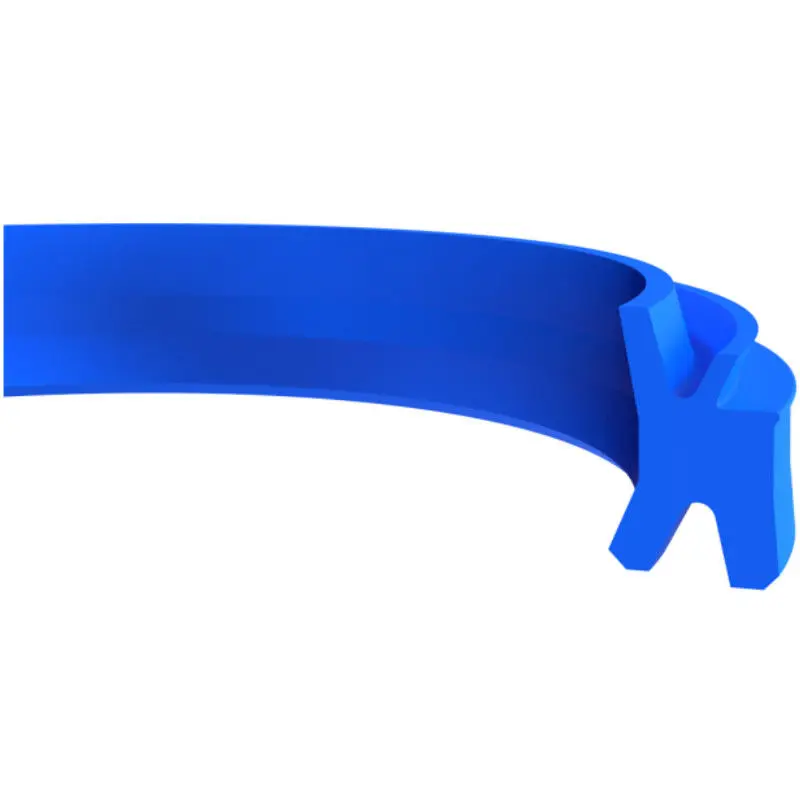

KL100 is TPU double wiper with a static sealing lip as an addition to the wiping lip. The dynamic lips of KL100 double wiper are designed with a radius in order to optimize the oil film on counter running surface and the seal geometry is designed to relief hydrodynmaic pressure in the system.
Advantages
• Superior wiping performance
• Build-up of hydrodynamic pressure is avoided with notch design
• Thing oil film due to double lip design
• No twisting in the housing
• Used in heavy conditions by the good tear and rupture properties of PU material
• Leakage preventing exterior static sealing lip design
• Easy installation
Area of Application
• Construction machinery
• Mobile machinery
• Cranes
• Industrial cylinders
• Forklifts
• Cylinders that work in open air environment

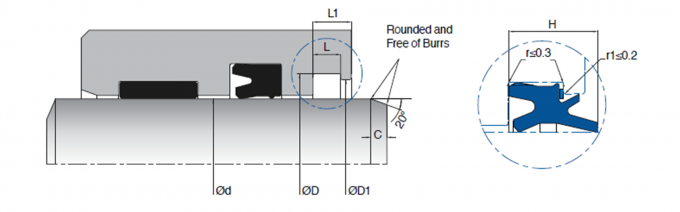

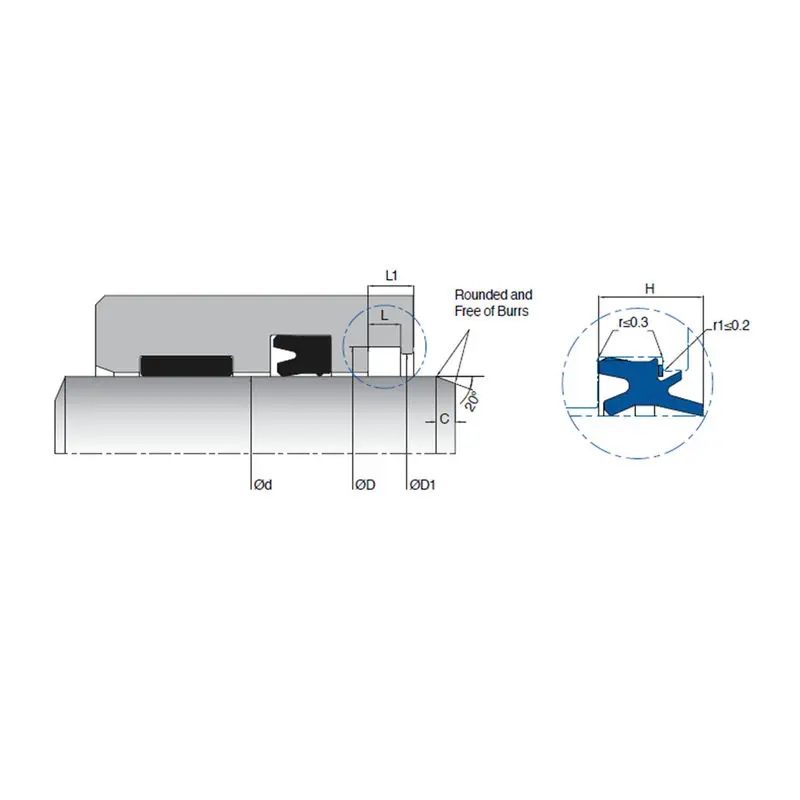

| d (f7) | D (H9) | D1 (H10) | L (+0.2/-0) | L1 | H | MATERIAL | |
| KL100-020 | 20 | 26 | 24.6 | 4 | 6 | 7 | PU |
| KL100-020/1 | 20 | 28 | 26 | 4 | 6 | 7 | PU |
| KL100-025 | 25 | 33 | 31 | 4 | 6 | 7 | PU |
| KL100-030 | 30 | 38 | 36 | 4 | 6 | 7 | PU |
| KL100-032 | 32 | 40 | 38 | 4 | 6 | 7 | PU |
| KL100-035 | 35 | 43 | 41 | 4 | 6 | 7 | PU |
| KL100-036 | 36 | 44 | 42 | 5 | 7 | 8 | PU |
| KL100-040 | 40 | 48 | 46 | 4 | 6 | 7 | PU |
| KL100-040/1 | 40 | 50 | 48 | 6.3 | 8.3 | 9 | PU |
| KL100-045 | 45 | 53 | 51 | 4 | 6 | 7 | PU |
| KL100-046 | 46 | 54 | 52 | 4 | 6 | 7 | PU |
| KL100-048 | 48 | 58 | 55 | 6.3 | 8.3 | 9 | PU |
| KL100-050 | 50 | 60 | 57 | 6.3 | 8.3 | 9 | PU |
| KL100-055 | 55 | 65 | 62 | 6.3 | 8.3 | 9 | PU |
| KL100-060 | 60 | 70 | 67 | 6.3 | 8.3 | 9 | PU |
| KL100-060/1 | 60 | 68 | 66 | 4 | 6 | 7 | PU |
| KL100-065 | 65 | 75 | 73 | 6.3 | 8.3 | 9 | PU |
| KL100-070 | 70 | 80 | 77 | 6.3 | 8.3 | 9 | PU |
| KL100-075 | 75 | 85 | 82 | 6.3 | 8.3 | 9 | PU |
| KL100-080 | 80 | 90 | 87 | 6.3 | 8.3 | 9 | PU |
| KL100-085 | 85 | 95 | 92 | 6.3 | 8.3 | 9 | PU |
| KL100-090 | 90 | 100 | 97 | 6.3 | 8.3 | 9 | PU |
