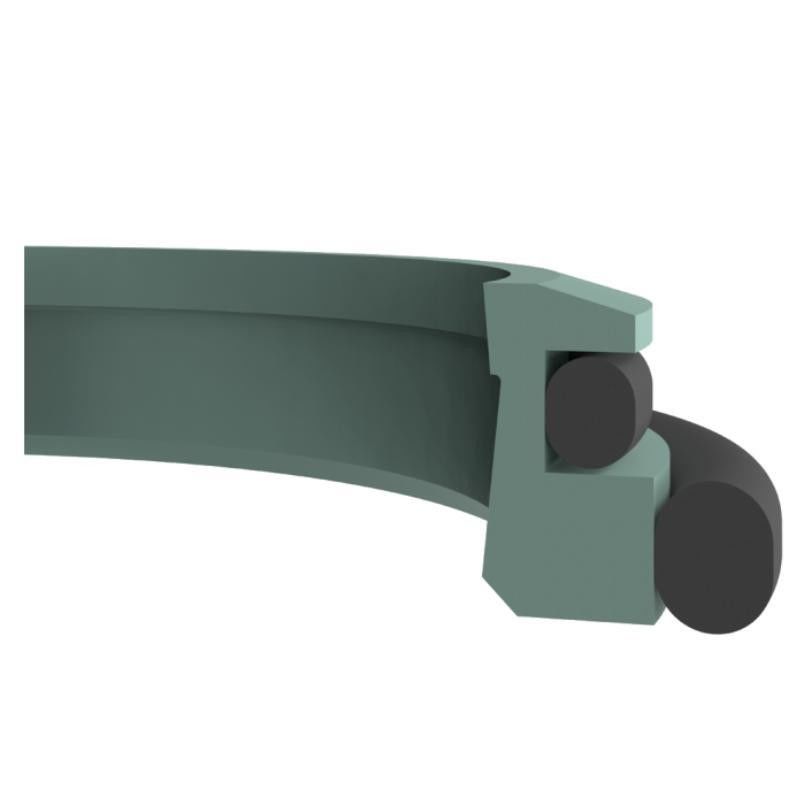

KL106 Large Diameter Double Lip Wiper Seal With Large Sealing Gap Protection
product detail
Product Details
Name:
Double Wiper Seal
Material:
PTFE NBR
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
5.0
Area Of Application:
Iron And Steel Industry
Color:
Red / Blue / Black / Customer Color
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
KL106 wipers prevent that foreign particles from outer environment penetrate into the cylinder in the hydraulic applications, and reduce the oil film thickness. In highly contaminated systems, all effects (water, mud, dust, etc.) coming from the external environment are avoided with the special cap design. All effects in systems with high pollution from outer environment (water, mud, dust, etc.) can be prevented thanks to the special head design. KL106, used in heavy duty applications with large sealing gaps, has superior protection feature.
Advantages
• Excellent positioning and regulation ability during operation
• Superior protection against particles in the external environment
• Low friction and stick-slip free
• Operating wit different PTFE materials at high frequencies and low strokes
• Suitable design for large diameters
Area of Application
• Iron and steel industry
• Injection moulding machines
• Presses

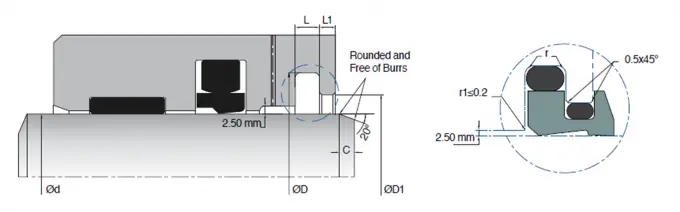

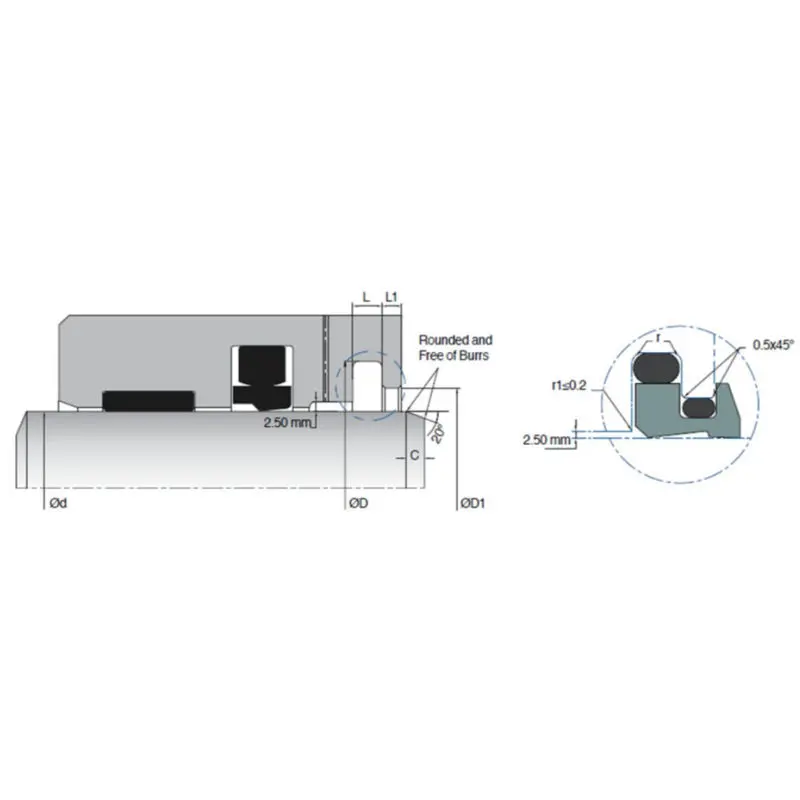

| d (f8) | D (H9) | D1 (H9) | L (+0.2/-0) | L1 (+0.2/-0) | r | MATERIAL | |
| KL106-100 | 100 | 122.2 | 110.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-110 | 110 | 132.2 | 120.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-120 | 120 | 142.2 | 130.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-130 | 130 | 152.2 | 140.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-140 | 140 | 162.2 | 150.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-150 | 150 | 172.2 | 160.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-160 | 160 | 182.2 | 170.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-170 | 170 | 192.2 | 180.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-180 | 180 | 202.2 | 190.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-190 | 190 | 212.2 | 200.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-200 | 200 | 222.2 | 210.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-220 | 220 | 242.2 | 230.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-380 | 380 | 413 | 395.1 | 8.1 | 6.3 | 1.2 | PTFE |
