KL12 Hydraulic Lip Seal Wear Resistant With Small Housing Design
product detail
Product Details
Style:
Hydraulic Lip Seal
Temperature (max) °C:
-35/+100
Pressure (max) Bar:
400
Material:
PU
Sliding Speed (max)- M/s:
0.5
Application:
Telescopic Cylinders / Industrial Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

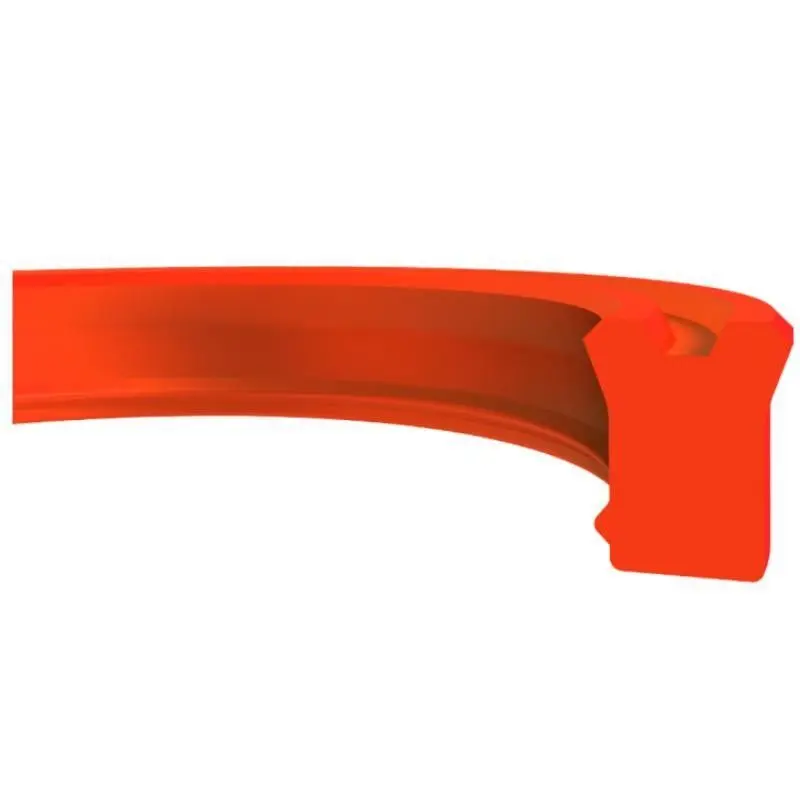

KL12 is a rod seal with an additional lip design, which is ideal for cylinders with small housing design. The groove design of KL12 generates a higher preload which is an advantage in lower pressures and long stroke cylinders.
Advantages
• Good sealing performance at high and low pressures
• Secondary sealing lip provides extra protection against the ingress of dirt particles
• High wear resistance
• Easy installation into closed grooves
• Suitable with small housing dimensions
Area of Application
• Mobile machinery
• Industrial cylinders
• Telescopic cylinders

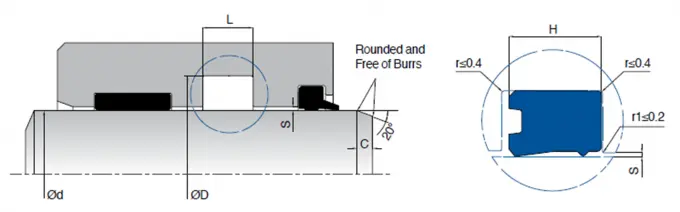

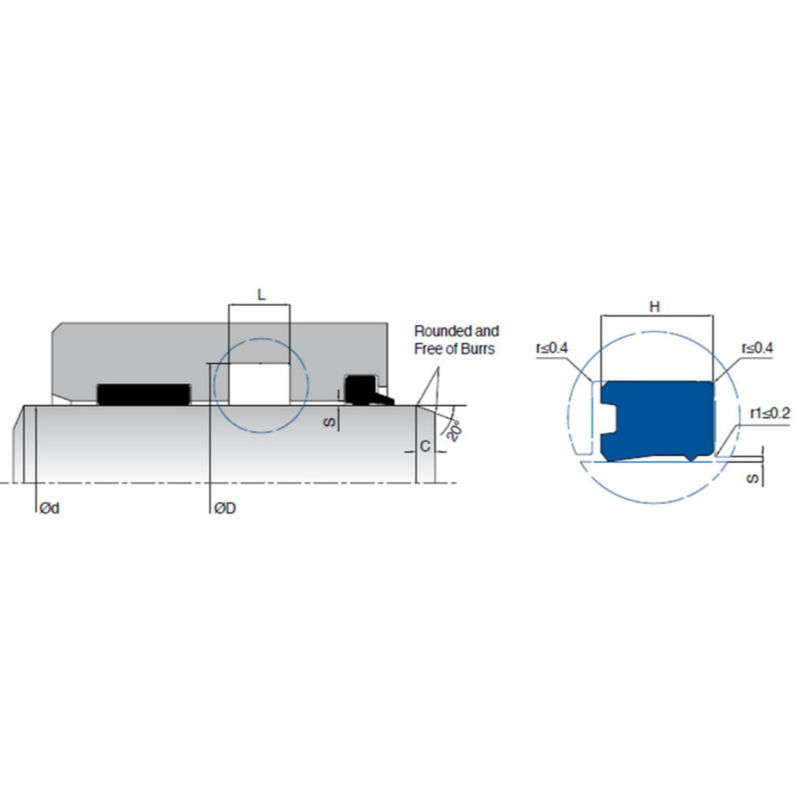

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL12-006 | 6 | 14 | 6.8 | 5.8 | 4.5 | PU |
| KL12-008 | 8 | 16 | 6.8 | 5.8 | 4.5 | PU |
| KL12-010 | 10 | 18 | 6.8 | 5.8 | 4.5 | PU |
| KL12-012 | 12 | 19 | 6.7 | 5.7 | 4 | PU |
| KL12-012/1 | 12 | 20 | 6.8 | 5.8 | 4.5 | PU |
| KL12-014 | 14 | 22 | 6.8 | 5.8 | 4.5 | PU |
| KL12-015 | 15 | 21.5 | 4.7 | 4.2 | 3.5 | PU |
| KL12-016 | 16 | 24 | 6.8 | 5.8 | 4.5 | PU |
| KL12-016/1 | 16 | 22 | 4.5 | 4 | 3.5 | PU |
| KL12-018 | 18 | 26 | 6.8 | 5.8 | 4.5 | PU |
| KL12-018/1 | 18 | 26 | 9 | 8 | 4.5 | PU |
| KL12-018/2 | 18 | 25 | 6 | 5 | 4 | PU |
| KL12-020 | 20 | 27 | 6.8 | 5.8 | 4 | PU |
| KL12-020/1 | 20 | 28 | 6.8 | 5.8 | 4.5 | PU |
| KL12-020/2 | 20 | 30 | 8 | 7 | 5.5 | PU |
| KL12-022 | 22 | 28 | 5 | 4.5 | 3.5 | PU |
| KL12-022/1 | 22 | 30 | 6.8 | 5.8 | 4.5 | PU |
| KL12-022/2 | 22 | 30 | 8 | 7 | 4.5 | PU |
| KL12-022/3 | 22 | 32 | 9 | 8 | 5.5 | PU |
| KL12-022/5 | 22.22 | 28.57 | 7 | 6.35 | 3.5 | PU |
| KL12-022/6 | 22.23 | 28.58 | 3.5 | 3.18 | 3.5 | PU |
| KL12-024 | 24.5 | 30 | 5 | 4.5 | 3.5 | PU |
| KL12-025 | 25 | 33 | 6.8 | 5.8 | 4.5 | PU |
| KL12-025/1 | 25 | 33 | 8 | 7 | 4.5 | PU |
| KL12-025/2 | 25 | 35 | 8 | 7 | 5.5 | PU |
| KL12-025/3 | 25 | 35 | 11 | 10 | 5.5 | PU |
| KL12-025/4 | 25 | 35 | 9 | 8 | 5.5 | PU |
| KL12-028 | 28 | 38 | 6.8 | 5.8 | 5.5 | PU |
| KL12-028/1 | 28 | 38 | 8 | 7 | 5.5 | PU |
| KL12-028/2 | 28 | 36 | 7.3 | 6.3 | 4.5 | PU |
| KL12-028/3 | 28 | 36 | 6.8 | 5.8 | 4.5 | PU |
| KL12-028/4 | 28 | 34 | 3.9 | 3.4 | 3.5 | PU |
| KL12-028/5 | 28 | 36 | 6 | 5 | 4.5 | PU |
| KL12-030 | 30 | 38 | 6.8 | 5.8 | 4.5 | PU |
| KL12-030/1 | 30 | 38 | 9 | 8 | 4.5 | PU |
| KL12-030/2 | 30 | 36 | 7 | 6 | 3.5 | PU |
| KL12-030/3 | 30 | 40 | 7.5 | 6.5 | 5.5 | PU |
| KL12-030/4 | 30 | 40 | 11 | 10 | 5.5 | PU |
| KL12-030/5 | 30 | 40 | 8 | 7 | 5.5 | PU |
| KL12-030/6 | 30 | 38 | 8 | 7 | 4.5 | PU |
| KL12-032 | 32 | 40 | 9 | 8 | 4.5 | PU |
| KL12-032/1 | 32 | 42 | 8 | 7 | 5.5 | PU |
| KL12-032/2 | 32 | 40 | 8 | 7 | 4.5 | PU |
| KL12-032/3 | 32 | 40 | 7.5 | 6.5 | 4.5 | PU |
| KL12-032/4 | 32 | 42 | 9 | 8 | 5.5 | PU |
| KL12-034 | 34 | 50 | 11 | 10 | 6 | PU |
| KL12-035 | 35 | 43 | 6.8 | 5.8 | 4.5 | PU |
| KL12-035/1 | 35 | 43 | 9 | 8 | 4.5 | PU |
| KL12-035/2 | 35 | 45 | 11 | 10 | 5.5 | PU |
| KL12-035/3 | 35 | 50 | 11 | 10 | 6 | PU |
| KL12-035/4 | 35 | 45 | 8 | 7 | 5.5 | PU |
| KL12-036 | 36 | 44 | 6.8 | 5.8 | 4.5 | PU |
| KL12-036/1 | 36 | 44 | 9 | 8 | 4.5 | PU |
| KL12-037 | 37 | 47 | 11 | 10 | 5.5 | PU |
| KL12-038 | 38 | 50 | 9.5 | 8.5 | 5.5 | PU |
| KL12-040 | 40 | 48 | 6.8 | 5.8 | 4.5 | PU |
| KL12-040/1 | 40 | 48 | 9 | 8 | 4.5 | PU |
| KL12-040/2 | 40 | 50 | 8 | 7 | 5.5 | PU |
| KL12-040/3 | 40 | 50 | 11 | 10 | 5.5 | PU |
| KL12-040/4 | 40 | 55 | 11 | 10 | 6 | PU |
| KL12-040/5 | 40 | 60 | 11 | 10 | 6.5 | PU |
| KL12-040/6 | 40 | 50 | 9 | 8 | 5.5 | PU |
| KL12-040/7 | 40 | 48 | 7 | 6 | 4.5 | PU |
| KL12-042 | 42 | 50 | 7 | 6 | 4.5 | PU |
| KL12-042/1 | 42 | 52 | 9 | 8 | 5.5 | PU |
| KL12-045 | 45 | 53 | 6.8 | 5.8 | 4.5 | PU |
| KL12-045/1 | 45 | 55 | 6.8 | 5.8 | 5.5 | PU |
| KL12-045/2 | 45 | 55 | 8 | 7 | 5.5 | PU |
| KL12-045/3 | 45 | 55 | 11 | 10 | 5.5 | PU |
| KL12-045/4 | 45 | 52 | 13 | 12 | 4 | PU |
| KL12-045/5 | 45 | 53 | 9 | 8 | 4.5 | PU |
| KL12-045/6 | 45 | 53 | 7.3 | 6.3 | 4.5 | PU |
| KL12-046 | 46 | 54 | 9 | 8 | 4.5 | PU |
| KL12-048 | 48 | 60 | 7 | 6 | 5.5 | PU |
| KL12-050 | 50 | 58 | 9 | 8 | 4.5 | PU |
| KL12-050/1 | 50 | 60 | 8 | 7 | 5.5 | PU |
| KL12-050/2 | 50 | 60 | 10 | 9 | 5.5 | PU |
| KL12-050/3 | 50 | 60 | 11 | 10 | 5.5 | PU |
| KL12-050/4 | 50 | 65 | 11 | 10 | 6 | PU |
| KL12-050/5 | 50 | 70 | 14.5 | 13.5 | 6.5 | PU |
| KL12-050/8 | 50 | 63 | 10 | 9 | 5.5 | PU |
| KL12-050/9 | 50 | 63 | 11 | 10 | 5.5 | PU |
| KL12-055 | 55 | 63 | 9 | 8 | 4.5 | PU |
| KL12-055/1 | 55 | 65 | 11 | 10 | 5.5 | PU |
| KL12-055/2 | 55 | 65 | 13 | 12 | 5.5 | PU |
| KL12-055/3 | 55 | 65 | 9 | 8 | 5.5 | PU |
| KL12-055/4 | 55 | 65 | 8 | 7 | 5.5 | PU |
| KL12-056 | 56 | 66 | 7.5 | 6.5 | 5.5 | PU |
| KL12-056/1 | 56 | 71 | 12.5 | 11.5 | 6 | PU |
| KL12-056/2 | 56 | 64 | 9 | 8 | 4.5 | PU |
| KL12-060 | 60 | 68 | 9 | 8 | 4.5 | PU |
| KL12-060/1 | 60 | 70 | 8.5 | 7.5 | 5.5 | PU |
| KL12-060/2 | 60 | 70 | 11 | 10 | 5.5 | PU |
| KL12-060/3 | 60 | 70 | 12.5 | 11.5 | 5.5 | PU |
| KL12-060/4 | 60 | 72 | 10 | 9 | 5.5 | PU |
| KL12-060/5 | 60 | 68 | 13 | 12 | 4.5 | PU |
| KL12-060/6 | 60 | 70 | 8 | 7 | 5.5 | PU |
| KL12-060/7 | 60 | 68 | 8 | 7 | 4.5 | PU |
| KL12-060/8 | 60 | 68 | 7.3 | 6.3 | 4.5 | PU |
| KL12-061 | 61 | 69 | 9 | 8 | 4.5 | PU |
| KL12-063 | 63 | 71 | 9 | 8 | 4.5 | PU |
| KL12-063/2 | 63 | 75 | 9.6 | 8.6 | 5.5 | PU |
| KL12-065 | 65 | 73 | 9 | 8 | 4.5 | PU |
| KL12-065/1 | 65 | 75 | 13.5 | 12.5 | 5.5 | PU |
| KL12-068 | 68 | 76 | 9 | 8 | 4.5 | PU |
| KL12-070 | 70 | 78 | 9 | 8 | 4.5 | PU |
| KL12-070/1 | 70 | 80 | 13 | 12 | 5.5 | PU |
| KL12-070/2 | 70 | 85 | 12.5 | 11.5 | 6 | PU |
| KL12-070/3 | 70 | 82 | 10 | 9 | 5.5 | PU |
| KL12-070/4 | 70 | 80 | 7.5 | 6.5 | 5.5 | PU |
| KL12-070/5 | 70 | 80 | 8 | 7 | 5.5 | PU |
| KL12-074 | 74 | 82 | 9 | 8 | 4.5 | PU |
| KL12-075 | 75 | 83 | 9 | 8 | 4.5 | PU |
| KL12-075/1 | 75 | 85 | 9 | 8 | 5.5 | PU |
| KL12-075/2 | 75 | 85 | 8 | 7 | 5.5 | PU |
| KL12-075/3 | 75 | 83 | 7.5 | 6.5 | 4.5 | PU |
| KL12-075/4 | 75 | 83 | 7.3 | 6.3 | 4.5 | PU |
| KL12-076 | 76 | 84 | 9 | 8 | 4.5 | PU |
| KL12-078 | 78 | 86 | 13 | 12 | 4.5 | PU |
| KL12-080 | 80 | 88 | 9 | 8 | 4.5 | PU |
| KL12-080/1 | 80 | 90 | 11 | 10 | 5.5 | PU |
| KL12-080/2 | 80 | 90 | 13 | 12 | 5.5 | PU |
| KL12-080/3 | 80 | 95 | 12.5 | 11.5 | 6 | PU |
| KL12-080/4 | 80 | 96 | 10.5 | 9.5 | 6 | PU |
| KL12-080/5 | 80 | 92 | 10 | 9 | 5.5 | PU |
| KL12-085 | 85 | 93 | 9 | 8 | 4.5 | PU |
| KL12-085/1 | 85 | 95 | 13 | 12 | 5.5 | PU |
| KL12-086 | 86 | 101 | 13 | 12 | 6 | PU |
| KL12-088 | 88 | 96 | 9 | 8 | 4.5 | PU |
| KL12-090 | 90 | 98 | 9 | 8 | 4.5 | PU |
| KL12-090/1 | 90 | 102 | 10 | 9 | 5.5 | PU |
| KL12-090/2 | 90 | 105 | 12.5 | 11.5 | 6 | PU |
| KL12-090/3 | 90 | 110 | 15 | 14 | 6.5 | PU |
| KL12-090/4 | 90 | 98 | 7.5 | 6.5 | 4.5 | PU |
| KL12-091 | 91 | 99 | 9 | 8 | 4.5 | PU |
| KL12-092 | 92 | 100 | 7.3 | 6.3 | 4.5 | PU |
| KL12-095 | 95 | 103 | 9 | 8 | 4.5 | PU |
| KL12-095/1 | 95 | 105 | 9 | 8 | 5.5 | PU |
| KL12-097 | 97 | 105 | 14 | 13 | 4.5 | PU |
| KL12-097/1 | 97 | 105 | 13 | 12 | 4.5 | PU |
| KL12-100 | 100 | 108 | 12.5 | 11.5 | 4.5 | PU |
| KL12-100/1 | 100 | 115 | 13 | 12 | 6 | PU |
| KL12-100/2 | 100 | 120 | 16 | 15 | 6.5 | PU |
| KL12-100/3 | 100 | 108 | 9 | 8 | 4.5 | PU |
| KL12-104 | 104 | 112 | 9 | 8 | 4.5 | PU |
| KL12-105 | 105 | 113 | 9 | 8 | 5.5 | PU |
| KL12-106 | 106 | 116 | 9 | 8 | 4.5 | PU |
| KL12-107 | 107 | 115 | 9 | 8 | 4.5 | PU |
| KL12-108 | 108 | 116 | 9 | 8 | 6.5 | PU |
| KL12-110 | 110 | 130 | 16 | 15 | 6 | PU |
| KL12-110/1 | 110 | 125 | 10.5 | 9.5 | 6 | PU |
| KL12-112 | 112 | 127 | 13 | 12 | 4.5 | PU |
| KL12-115 | 115 | 123 | 9 | 8 | 5.5 | PU |
| KL12-115/1 | 115 | 125 | 9 | 8 | 5 | PU |
| KL12-115/2 | 115 | 124 | 16 | 15 | 4.5 | PU |
| KL12-115/3 | 115 | 123 | 12.5 | 11.5 | 4.5 | PU |
| KL12-118 | 118 | 126 | 14 | 13 | 4.5 | PU |
| KL12-120 | 120 | 128 | 12.5 | 11.5 | 6 | PU |
| KL12-120/1 | 120 | 135 | 16 | 15 | 3.5 | PU |
| KL12-122 | 122 | 128 | 9 | 8 | 6.5 | PU |
| KL12-125 | 125 | 145 | 19 | 15 | 4.5 | PU |
| KL12-126 | 126 | 134 | 9 | 8 | 4.5 | PU |
| KL12-135 | 135 | 143 | 12.5 | 11.5 | 5.5 | PU |
| KL12-135/1 | 135 | 145 | 9 | 8 | 3.5 | PU |
| KL12-142 | 142 | 148 | 9 | 8 | 4.5 | PU |
| KL12-145 | 145 | 153 | 9 | 8 | 4.5 | PU |
| KL12-155 | 155 | 163 | 12.5 | 11.5 | 6 | PU |
| KL12-155/1 | 155 | 170 | 12.5 | 11.5 | 5.5 | PU |
| KL12-160 | 160 | 170 | 9 | 8 | 4.5 | PU |
| KL12-165 | 165 | 173 | 9 | 8 | 5.5 | PU |
| KL12-166 | 166 | 176 | 13 | 12 | 4.5 | PU |
| KL12-175 | 175 | 183 | 12.5 | 11.5 | 5.5 | PU |
| KL12-180 | 180 | 190 | 12 | 11 | 5.5 | PU |
| KL12-185 | 185 | 195 | 9 | 8 | 5.5 | PU |
| KL12-210 | 210 | 220 | 12 | 11 | 5.5 | PU |
| KL12-212 | 212 | 223 | 9 | 8 | 5.5 | PU |
| KL12-220 | 220 | 230 | 12.5 | 11.5 | 5.5 | PU |
