KL14 Hydraulic Rod Seals Elastomer Seals With Special Inner Lip Design
product detail
Product Details
Style:
Hydraulic Rod Seals
Temperature (max) °C:
-35/+105
Pressure (max) Bar:
150
Material:
NBR
Sliding Speed (max)- M/s:
0.5
Application:
Standard Industrial Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

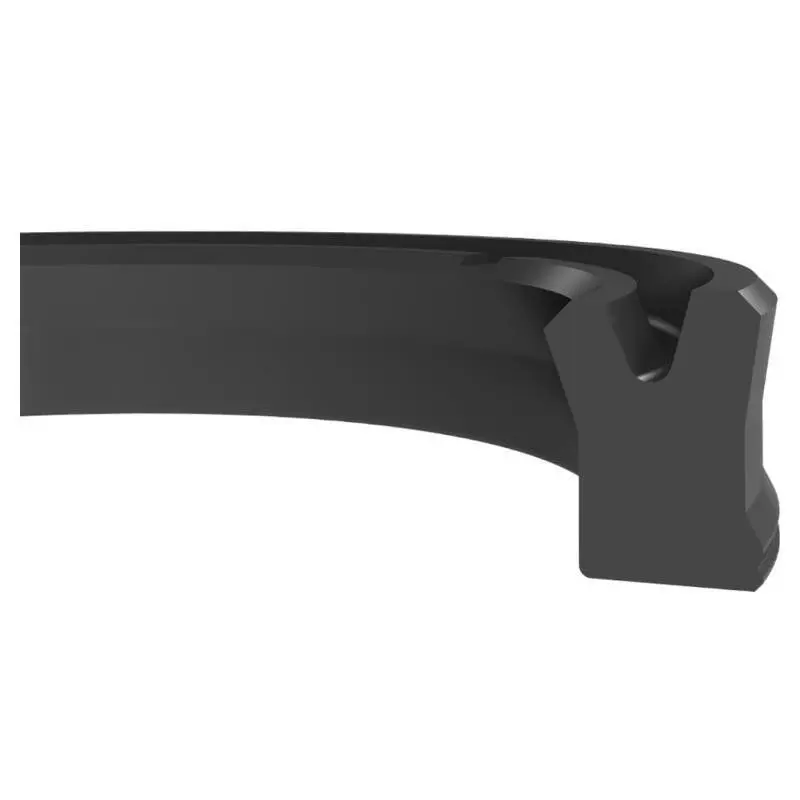

KL14 Rod Seal is an elastormer sealing solution with a special inner lip design.
Advantages
• Superior static sealing performance
• Easy installation
• Up to 250bars with a back-up ring
Area of Application
• Construction machinery
• Forklifts
• Standard industrial cylinders

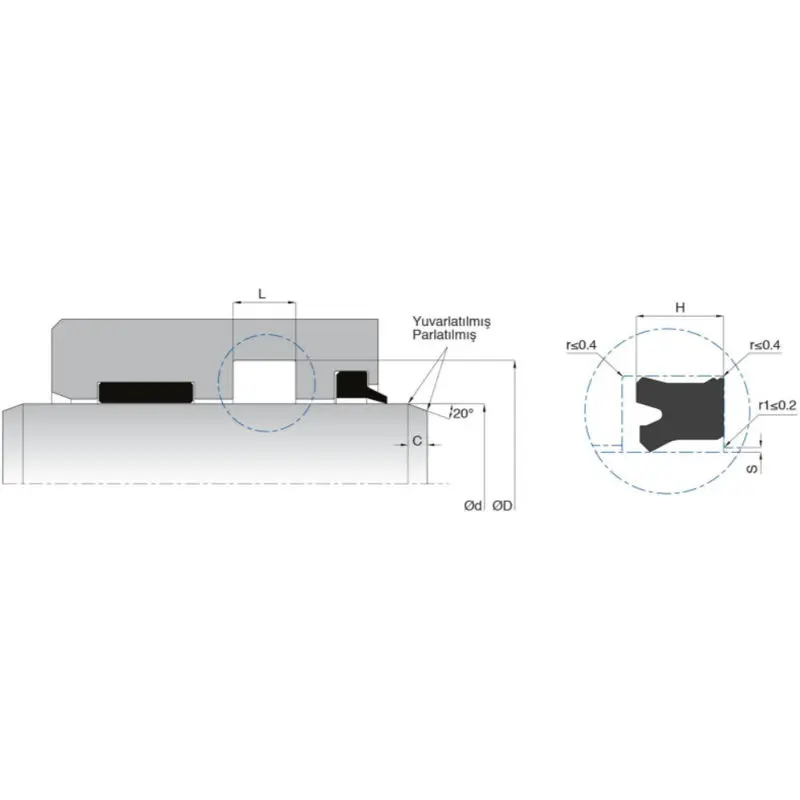

| d (f8) | D (H11) | L (+0.2/-0) | H | C | MATERIAL | |
| KL14-040 | 40 | 50 | 8 | 7 | 4.5 | NBR |
| KL14-045 | 45 | 55 | 8 | 7 | 4.5 | NBR |
| KL14-050 | 50 | 63 | 11 | 10 | 5 | NBR |
| KL14-050/1 | 50 | 63 | 8 | 7 | 5 | NBR |
| KL14-055 | 55 | 68 | 11 | 10 | 5 | NBR |
| KL14-065 | 65 | 78 | 11 | 10 | 5 | NBR |
| KL14-070 | 70 | 83 | 11 | 10 | 5 | NBR |
| KL14-075 | 75 | 88 | 11 | 10 | 5 | NBR |
| KL14-080 | 80 | 93 | 11 | 10 | 5 | NBR |
| KL14-085 | 85 | 100 | 11 | 10 | 5.5 | NBR |
| KL14-090 | 90 | 105 | 11 | 10 | 5.5 | NBR |
| KL14-095 | 95 | 110 | 11.5 | 10.5 | 5.5 | NBR |
| KL14-100 | 100 | 115 | 11 | 10 | 5.5 | NBR |
| KL14-110 | 110 | 130 | 11 | 10 | 6 | NBR |
| KL14-110/1 | 110 | 125 | 10 | 9 | 6 | NBR |
| KL14-120 | 120 | 140 | 11 | 10 | 6 | NBR |
| KL14-120/1 | 120 | 140 | 8.5 | 7.5 | 6 | NBR |
| KL14-140 | 140 | 160 | 13 | 12 | 6 | NBR |
| KL14-140/1 | 140 | 160 | 11 | 10 | 6 | NBR |
| KL14-180 | 180 | 200 | 13 | 12 | 6 | NBR |
