KL27 Double Acting Piston Seals PU / NBR Material For Hydraulic Cylinders
product detail
Product Details
Style:
Double Acting Piston Seal Hydraulic
Material:
PU / NBR
Pressure (max) Bar:
250
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Mobile Machinery / Injection Moulding Machines / Forklifts / Agricultural Machinery / Standard Industrial Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

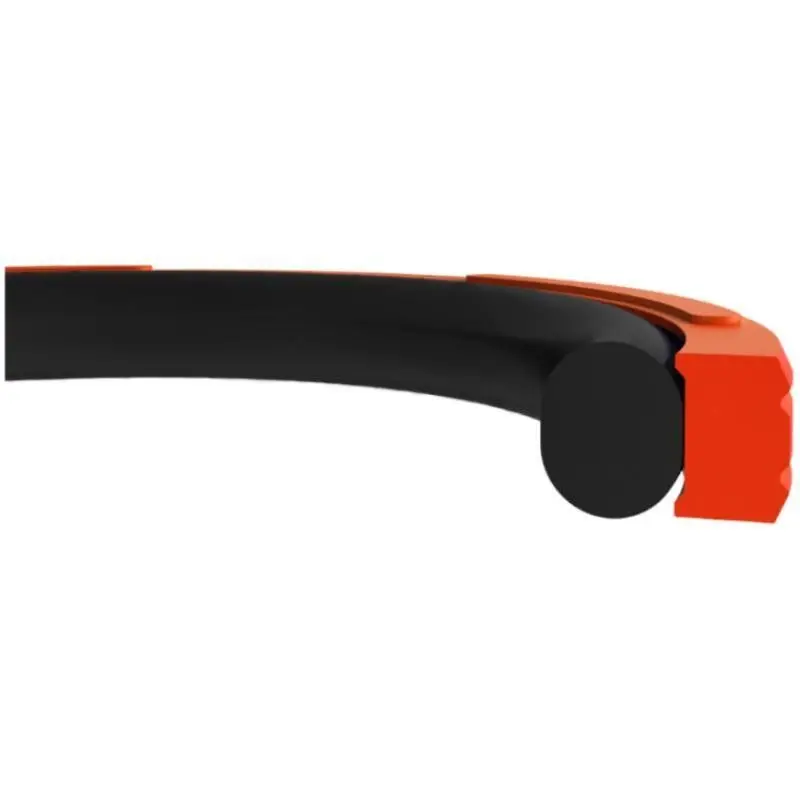

KL27 Double Acting Piston Seal Consists Of Polyurethane Special Formed Sealing Ring And Elastomer Oring Energizer Ring.
KL27 double acting piston seal consists of polyurethane special formed sealing ring and elastomer oring energizer ring. Preffered in light to medium duty applications, KL27 is an economic piston seal solution.
Advantages
• High static and dynamic sealing effect
• Simple and small groove design suitable with ISO 7425-1
• Economical sealing solution
• Easy installation
• Simple and small groove design suitable with ISO 7425-1
• Economical sealing solution
• Easy installation
Area of Application
• Mobile machinery
• Injection moulding machines
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
• Injection moulding machines
• Forklifts
• Agricultural machinery
• Standard industrial cylinders

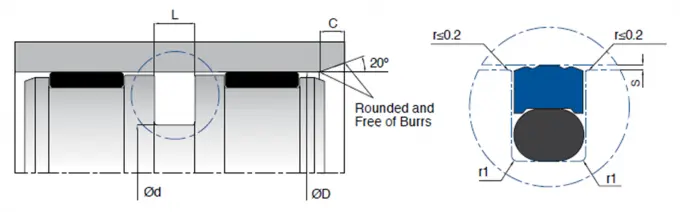

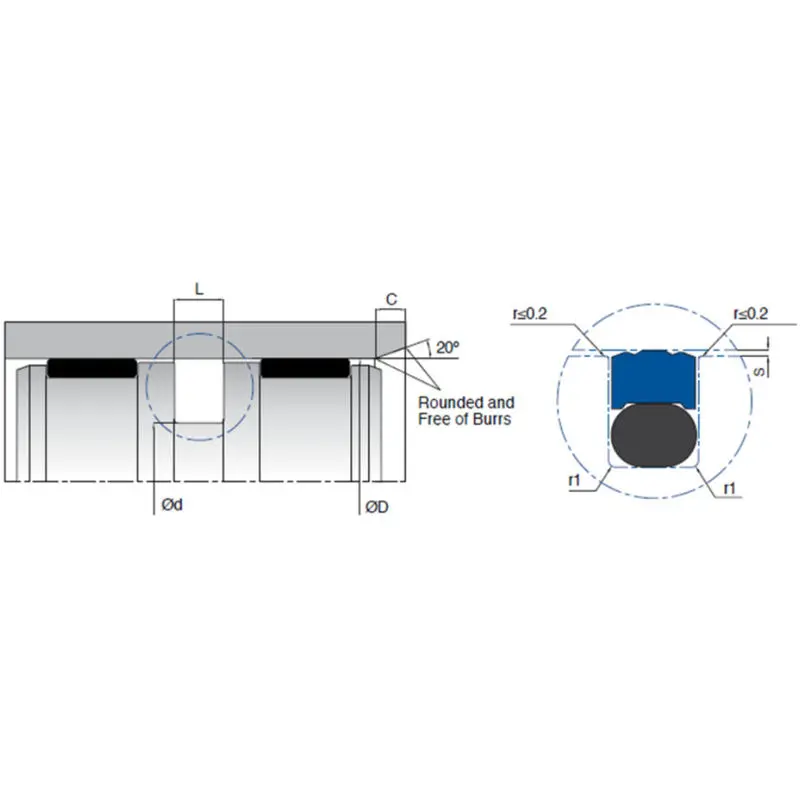

| D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | MATERIAL | |
| KL27 015-007.5 | 15 | 7.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU |
| KL27 016-008.5 | 16 | 8.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU |
| KL27 020-012.5 | 20 | 12.5 | 3.2 | 0.6 | 3 | 11.91x2.62 | PU |
| KL27 022-014.5 | 22 | 14.5 | 3.2 | 0.6 | 3 | 13.95x2.62 | PU |
| KL27 025-014 | 25 | 14 | 4.2 | 1 | 4.5 | 13.87x3x53 | PU |
| KL27 025-017.5 | 25 | 17.5 | 3.2 | 0.6 | 3 | 17.13x2.62 | PU |
| KL27 030-022.5 | 30 | 22.5 | 3.2 | 0.6 | 3 | 21.89x2.62 | PU |
| KL27 032-021 | 32 | 21 | 4.2 | 1 | 4.5 | 20.22x3x53 | PU |
| KL27 032-024.5 | 32 | 24.5 | 3.2 | 0.6 | 3 | 23.81x2.62 | PU |
| KL27 035-027.5 | 35 | 27.5 | 3.2 | 0.6 | 3 | 26.64x2.62 | PU |
| KL27 038-030.5 | 38 | 30.5 | 3.2 | 0.6 | 3 | 29.82x2.62 | PU |
| KL27 040-024.5 | 40 | 24.5 | 6.3 | 1.3 | 6 | 23.17x5.33 | PU |
| KL27 040-029 | 40 | 29 | 4.2 | 1 | 4.5 | 28.17x3.53 | PU |
| KL27 040-032.5 | 40 | 32.5 | 3.2 | 0.6 | 3 | 31.42x2.62 | PU |
| KL27 045-029.5 | 45 | 29.5 | 6.3 | 1.3 | 6 | 29.51x5.33 | PU |
| KL27 045-034 | 45 | 34 | 4.2 | 1 | 4.5 | 32.92x3.53 | PU |
| KL27 048-037 | 48 | 37 | 4.2 | 1 | 4.5 | 36.1x3.53 | PU |
| KL27 049-038 | 49 | 38 | 4.2 | 1 | 4.5 | 37.69x3.53 | PU |
| KL27 050-034.5 | 50 | 34.5 | 6.3 | 1.3 | 6 | 32.69x5.33 | PU |
| KL27 050-039 | 50 | 39 | 4.2 | 1 | 4.5 | 37.69x3.53 | PU |
| KL27 052-036.5 | 52 | 36.5 | 6.3 | 1.3 | 6 | 34.29x5.33 | PU |
| KL27 054-043 | 54 | 43 | 4.2 | 1 | 4.5 | 42.86x3.53 | PU |
| KL27 055-039.5 | 55 | 39.5 | 6.3 | 1.3 | 6 | 37.47x5.33 | PU |
| KL27 055-044 | 55 | 44 | 4.2 | 1 | 4.5 | 42.86x3.53 | PU |
| KL27 057.15-046.15 | 57.15 | 46.15 | 4.2 | 1 | 4.5 | 46.04x3.53 | PU |
| KL27 060-044.5 | 60 | 44.5 | 6.3 | 1.3 | 6 | 43.82x5.33 | PU |
| KL27 060-049 | 60 | 49 | 4.2 | 1 | 4.5 | 47.63x3.53 | PU |
| KL27 063-047.5 | 63 | 47.5 | 6.3 | 1.3 | 6 | 47x5.33 | PU |
| KL27 063-052 | 63 | 52 | 4.2 | 1 | 4.5 | 50.8x3.53 | PU |
| KL27 063.5-052.5 | 63.5 | 52.5 | 4.2 | 1 | 4.5 | 50.8x3.53 | PU |
| KL27 065-049.5 | 65 | 49.5 | 6.3 | 1.3 | 6 | 47x5.33 | PU |
| KL27 065-054 | 65 | 54 | 4.2 | 1 | 4.5 | 52.39x3.53 | PU |
| KL27 070-054.5 | 70 | 54.5 | 6.3 | 1.3 | 6 | 53.34x5.33 | PU |
| KL27 070-059 | 70 | 59 | 4.2 | 1 | 4.5 | 57.15x3.53 | PU |
| KL27 075-059.5 | 75 | 59.5 | 6.3 | 1.3 | 6 | 56.52x5.33 | PU |
| KL27 075-064 | 75 | 64 | 4.2 | 1 | 4.5 | 63.09x3.53 | PU |
| KL27 080-059 | 80 | 59 | 8.1 | 1.8 | 8 | 58x6.99 | PU |
| KL27 080-064.5 | 80 | 64.5 | 6.3 | 1.3 | 6 | 62.87x5.33 | PU |
| KL27 080-069 | 80 | 69 | 4.2 | 1 | 4.5 | 68.26x3.53 | PU |
| KL27 085-069.5 | 85 | 69.5 | 6.3 | 1.3 | 6 | 69.22x5.33 | PU |
| KL27 090-074.5 | 90 | 74.5 | 6.3 | 1.3 | 6 | 72.4x5.33 | PU |
| KL27 095-079.5 | 95 | 79.5 | 6.3 | 1.3 | 6 | 78.74x5.33 | PU |
| KL27 100-084.5 | 100 | 84.5 | 6.3 | 1.3 | 6 | 81.92x5.33 | PU |
| KL27 100-089 | 100 | 89 | 4.2 | 1 | 4.5 | 85.32x3.53 | PU |
| KL27 105-089.5 | 105 | 89.5 | 6.3 | 1.3 | 6 | 88.27x5.33 | PU |
| KL27 110-094.5 | 110 | 94.5 | 6.3 | 1.3 | 6 | 91.44x5.33 | PU |
| KL27 115-094 | 115 | 94 | 8.1 | 1.8 | 8 | 92x6.99 | PU |
| KL27 115-099.5 | 115 | 99.5 | 6.3 | 1.3 | 6 | 97.80x5.33 | PU |
| KL27 120-104.5 | 120 | 104.5 | 6.3 | 1.3 | 6 | 104.14x5.33 | PU |
| KL27 125-104 | 125 | 104 | 8.1 | 1.8 | 8 | 102x6.99 | PU |
| KL27 125-109.5 | 125 | 109.5 | 6.3 | 1.3 | 6 | 107.32x5.33 | PU |
| KL27 130-114.5 | 130 | 114.5 | 6.3 | 1.3 | 6 | 110.49x5.33 | PU |
| KL27 135-114 | 135 | 114 | 8.1 | 1.8 | 8 | 113.67x6.99 | PU |
| KL27 140-119 | 140 | 119 | 8.1 | 1.8 | 8 | 116.84x6.99 | PU |
| KL27 150-129 | 150 | 129 | 8.1 | 1.8 | 8 | 126.37x6.99 | PU |
| KL27 160-139 | 160 | 139 | 8.1 | 1.8 | 8 | 135.9x6.99 | PU |
| KL27 170-149 | 170 | 149 | 8.1 | 1.8 | 8 | 145.42x6.99 | PU |
| KL27 180-159 | 180 | 159 | 8.1 | 1.8 | 8 | 155.6x6.99 | PU |
| KL27 200-179 | 200 | 179 | 8.1 | 1.8 | 8 | 177.17x6.99 | PU |
| KL27 250-229 | 250 | 229 | 8.1 | 1.8 | 8 | 227.97x6.99 | PU |
