KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry
Collect products
KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry
KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry
KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry
KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry
KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry

KL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry

KL29X Hydraulic Piston Seals

Automotive industry Hydraulic Piston Seals

PTFE O Ring Seal Sets

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL29X

    Contact us
    Product Detail

    product detail

    Product Details
    Style:
    PTFE O Ring Seal
    Material:
    PTFE / NBR
    Pressure (max) Bar:
    400
    Temperature (max) °C:
    -30/+105
    Sliding Speed (max)- M/s:
    15.0
    Application:
    Construction Machinery / Automotive Industry
    Payment & Shipping Terms
    Minimum Order Quantity:
    100
    Packaging Details:
    Opp bags
    Delivery Time:
    7-15 work days
    Payment Terms:
    L/C, T/T, Paypal
    Supply Ability:
    10000+pcs+months

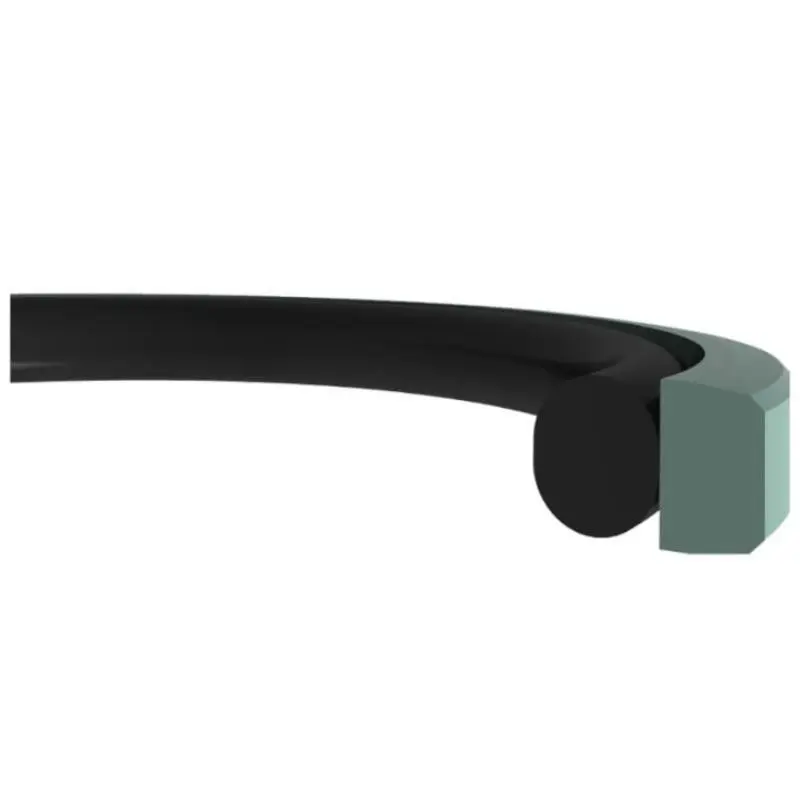

    New Design Piston Seal Sets Consists Of PTFE Sealing Ring And Energizer Elastomer Oring

    KL29X is an innovative piston seal, consists of PTFE sealing ring and energizer elastomer oring. The special design of the PTFE ring increases the extrusion resistance performance while the blow-by risk is minimized. KL29X provides low friction and minmal break-out forces in demanding hydraulic applications.

    Advantages

    • No blow-by effect
    • Low friction and stick-slip free
    • Excellent dynamic and static sealing
    • Long service life
    • High extrusion resistance
    • Reduced Blow-by risk
    • High speeds and frequencies
    • Designed for grooves according to ISO 7425/1

    Area of Application

    • Cranes
    • Injection moulding machines
    • Hydraulic press cylinders
    • Forklifts
    • Construction machinery
    • Servo cylinders
    • Hydraulic breakers
    • Wind turbines
    • Automotive industryKL29X Hydraulic Piston Seals , PTFE O Ring Seal Sets For Automotive Industry 0

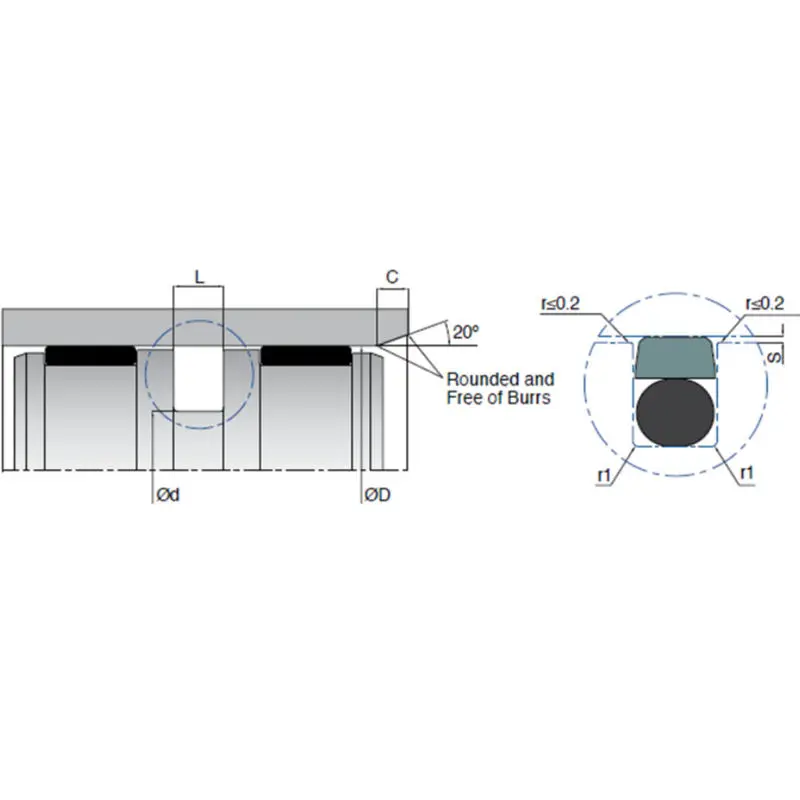

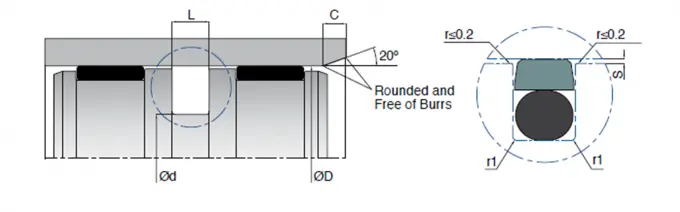

     D (H8)d (h9)L (+0.2/-0)r1CO-RingMATERIAL
    KL29X 025-017.52517.53.20.64.517.13x2.62PTFE
    KL29X 028-020.52820.53.20.64.520.29x2.62PTFE
    KL29X 030-022.53022.53.20.64.522.22x2.62PTFE
    KL29X 032-024.53224.53.20.64.523.81x2.62PTFE
    KL29X 034-026.53426.53.20.64.525.07x2.62PTFE
    KL29X 035-027.53527.53.20.64.526.64x2.62PTFE
    KL29X 040-02940294.21628.17x3.53PTFE
    KL29X 045-03445344.21632.92x3.53PTFE
    KL29X 048-03748374.21636.10x3.53PTFE
    KL29X 050-03950394.21637.69x3.53PTFE
    KL29X 055-04455444.21642.86x3.53PTFE
    KL29X 060-04960494.21647.63x3.53PTFE
    KL29X 063-05263524.21650.80x3.53PTFE
    KL29X 065-05465544.21653.57x3.53PTFE
    KL29X 070-054.57054.56.31.3853.34x5.33PTFE
    KL29X 070-05970594.21658.74x3.53PTFE
    KL29X 075-06475644.21663.09x3.53PTFE
    KL29X 080-064.58064.56.31.3862.87x5.33PTFE
    KL29X 085-069.58569.56.31.3869.22x5.33PTFE
    KL29X 090-074.59074.56.31.3872.40x5.33PTFE
    KL29X 095-079.59579.56.31.3878.74x5.33PTFE
    KL29X 100-084.510084.56.31.3881.92x5.33PTFE
    KL29X 105-089.510589.56.31.3888.27x5.33PTFE
    KL29X 110-094.511094.56.31.3891.44x5.33PTFE
    KL29X 115-099.511599.56.31.3897.80x5.33PTFE
    KL29X 120-104.5120104.56.31.38104.14x5.33PTFE
    KL29X 125-109.5125109.56.31.38107.32x5.33PTFE
    KL29X 127-111.50127111.56.31.38109.54x5.33PTFE
    KL29X 130-114.5130114.56.31.38113.67x5.33PTFE
    KL29X 140-124.5140124.56.31.38123.80x5.33PTFE
    KL29X 150-1291501298.11.810.5126.37x6.99PTFE
    KL29X 155-1341551348.11.810.5132.72x6.99PTFE
    KL29X 160-1391601398.11.810.5135.90x6.99PTFE
    KL29X 165-1441651448.11.810.5142.24x6.99PTFE
    KL29X 170-1491701498.11.810.5148.60X6.99PTFE
    KL29X 175-1541751548.11.810.5151.77x6.99PTFE
    KL29X 180-1591801598.11.810.5155.60x6.99PTFE
    KL29X 185-1641851648.11.810.5161.90x6.99PTFE
    KL29X 190-1691901698.11.810.5168.30x6.99PTFE
    KL29X 195-1741951748.11.810.5170.82x6.99PTFE
    KL29X 200-1792001798.11.810.5177.17x6.99PTFE
    KL29X 205-1842051848.11.810.5183.52X6.99PTFE
    KL29X 210-1892101898.11.810.5187.3X6.99PTFE
    KL29X 215-1942151948.11.810.5189.87x6.99PTFE
    KL29X 220-1992201998.11.810.5196.22x6.99PTFE
    KL29X 225-2042252048.11.810.5199.80x6.99PTFE
    KL29X 230-2092302098.11.810.5202.57x6.99PTFE
    KL29X 240-2192402198.11.810.5215.27X6.99PTFE
    KL29X 245-2242452248.11.810.5221.62X6.99PTFE
    KL29X 250-2292502298.11.810.5227.97x6.99PTFE
    KL29X 255-2342552348.11.810.5227.97X6.99PTFE
    KL29X 260-2392602398.11.810.5234.32x6.99PTFE
    KL29X 265-2442652448.11.810.5240.67x6.99PTFE
    KL29X 270-2492702498.11.810.5247.00x6.99PTFE
    KL29X 275-2542752548.11.810.5253.57x6.99PTFE
    KL29X 280-2592802598.11.810.5253.57x6.99PTFE
    KL29X 290-2692902698.11.810.5266.07x6.99PTFE
    KL29X 300-2793002798.11.810.5272.40x6.99PTFE
    KL29X 305-2843052848.11.810.5278.77x6.99PTFE
    KL29X 310-2893102898.11.810.5285.1x6.99PTFE
    KL29X 315-2943152948.11.810.5291.47x6.99PTFE
    KL29X 320-2993202998.11.810.5291.47x6.99PTFE
    KL29X 325-3043253048.11.810.5297.88x6.99PTFE
    KL29X 330-305.5330305.58.11.812304.17x6.99PTFE
    KL29X 340-315.5340315.58.11.812310.50x6.99PTFE
    KL29X 350-325.5350325.58.11.812323.20x6.99PTFE
    KL29X 360-335.5360335.58.11.812329.57x6.99PTFE
    KL29X 365-340.5365340.58.11.812335.90x6.99PTFE
    KL29X 370-345.5370345.58.11.812342.27x6.99PTFE
    KL29X 375-350.5375350.58.11.812342.27X6.99PTFE
    KL29X 380-355.5380355.58.11.812354.90x6.99PTFE
    KL29X 390-365.5390365.58.11.812354.90x6.99PTFE
    KL29X 400-375.5400375.58.11.812367.67x6.99PTFE
    KL29X 420-395.5420395.58.11.812393.07x6.99PTFE
