KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring
product detail
Product Details
Style:
Hydraulic Piston Seals 3 Piece
Material:
NBR / FABRIC NBR / POM
Pressure (max) Bar:
500
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Iron And Steel Industry
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
KL42 Is a 3 piece compact piston seal which consists of a fabric impregnated elastomer sealing ring and 2 POM guide rings. The sealing ring has superior abrasion resistance and low leakage performance in rough surfaces.
Advantages
• Superior abrasion resistance
• Suitable for water-based fluids
• Low dynamic and static leakage
• Long service life
• Suitable for water-based fluids
• Low dynamic and static leakage
• Long service life
Area of Application
• Mining industry
• Iron and steel industry
• Marine hydraulics
• Iron and steel industry
• Marine hydraulics

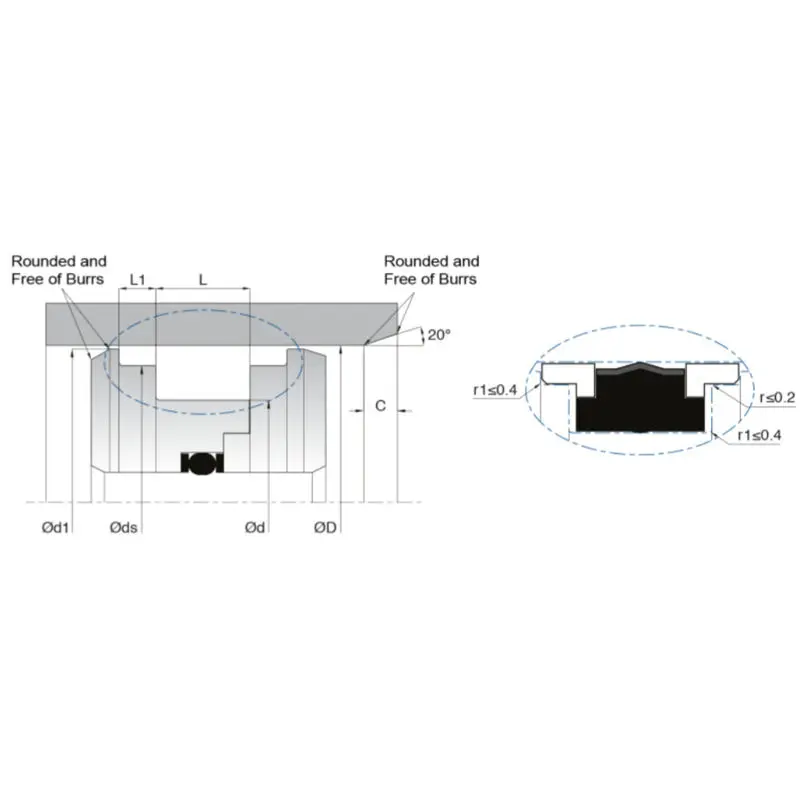

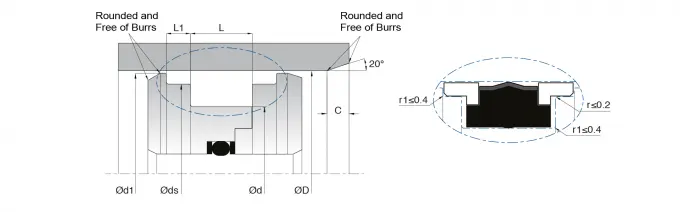

| D (H8) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | MATERIAL | |
| KL42-050-034 | 50 | 34 | 18.4 | 45.48 | 49 | 3.1 | 5 | FABRIC NBR |
| KL42-060-044 | 60 | 44 | 18.4 | 55.48 | 59 | 3.1 | 5 | FABRIC NBR |
| KL42-070-050 | 70 | 50 | 22.4 | 64.28 | 68.34 | 6.35 | 6 | FABRIC NBR |
| KL42-080-060 | 80 | 60 | 22.4 | 74.28 | 78.3 | 6.35 | 6 | FABRIC NBR |
| KL42-090-070 | 90 | 70 | 22.4 | 84.22 | 88.3 | 6.35 | 6 | FABRIC NBR |
| KL42-100-080 | 100 | 80 | 25.4 | 94.22 | 98 | 6.35 | 6 | FABRIC NBR |
| KL42-125-100 | 125 | 100 | 25.4 | 118.18 | 123 | 6.35 | 6 | FABRIC NBR |
| KL42-140-115 | 140 | 115 | 25.4 | 133.08 | 137.5 | 6.35 | 6 | FABRIC NBR |
| KL42-150-125 | 150 | 125 | 25.4 | 143.08 | 147.5 | 9.5 | 6 | FABRIC NBR |
