KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element
product detail
Product Details
Name:
Pneumatic Piston Seals
Material:
PU
Temperature (max) °C:
-30/+80
Sliding Speed (max)- M/s:
1.0
Pressure (max) Bar:
16
Application:
Recommended For Use In Cylinders According ISO 15552 And 6432 Standards And CETOP
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
KL69 Pneumatic Piston Seal Is A Single Acting Uring Sealing Element Suitable For Use In Piston Applications

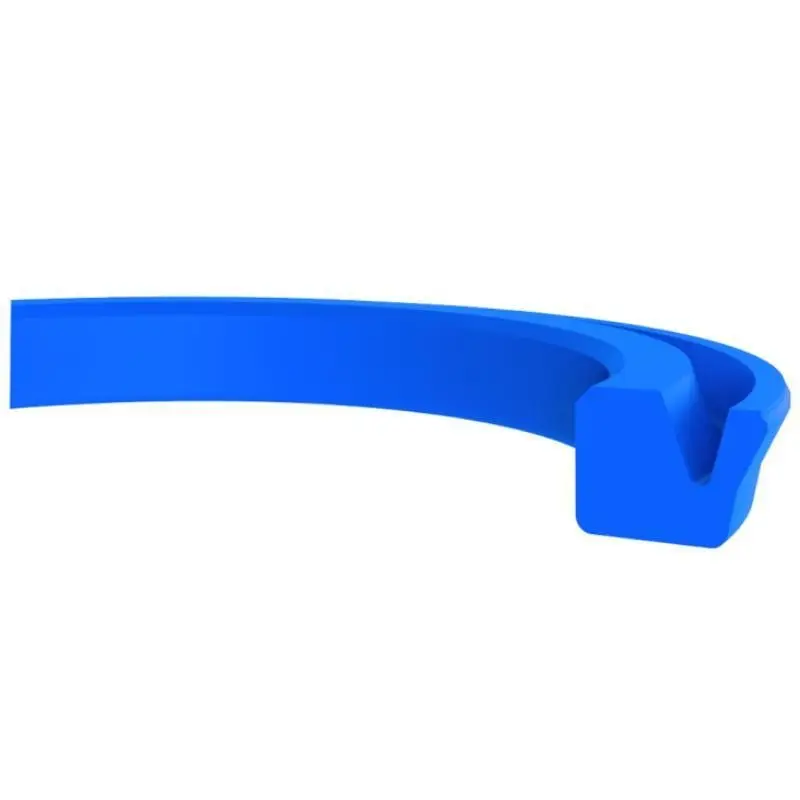

KL69F pneumatic piston seal is a single acting uring type sealing element suitable for use in piston applications with its outer sealing lip designed for low friction.
Advantages
• Low friction
• Operating in low pressures
• Can be used in small housing dimensions
• Long service life
• Easy installation
Area of Application
• Recommended for use in cylinders according ISO 15552 and 6432 standards and CETOP.

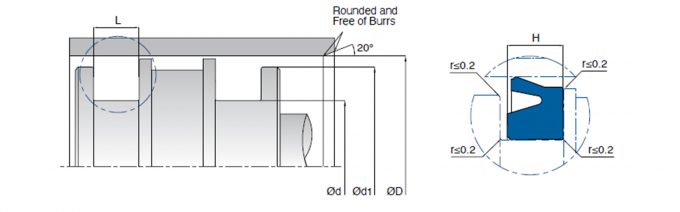

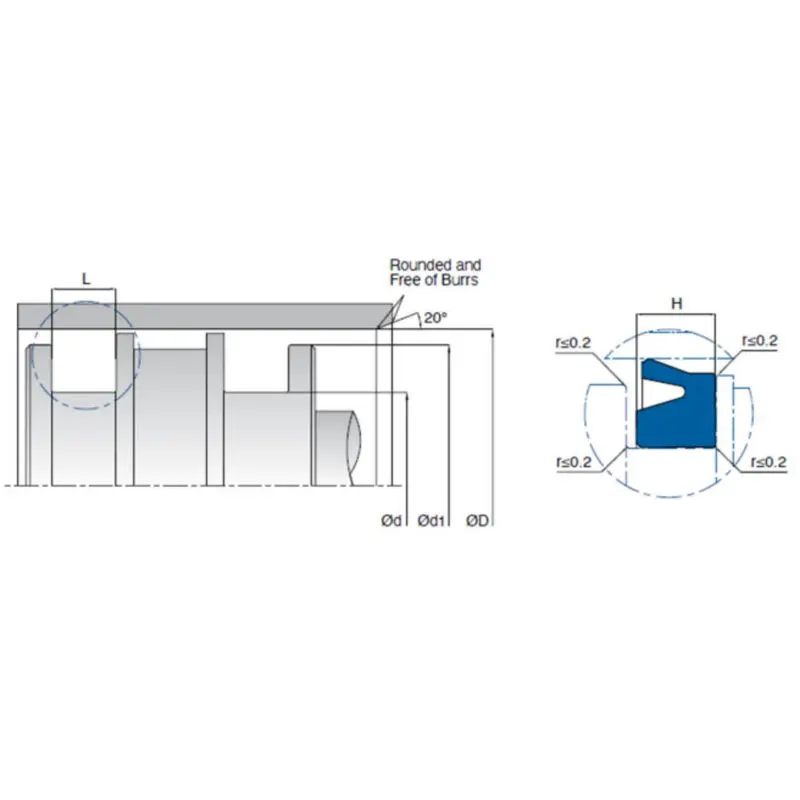

| D (H11) | d (h9) | L (+0.2/-0) | d1 (+0.2/-0) | H | MATERIAL | |
| KL69F-008/1 | 8 | 4.8 | 2.85 | 7.6 | 2.45 | PU |
| KL69F-010 | 10 | 6 | 3 | 9.6 | 2.55 | PU |
| KL69F-012 | 12 | 7 | 3 | 11.6 | 2.55 | PU |
| KL69F-012/1 | 12 | 7 | 2.85 | 11.6 | 2.45 | PU |
| KL69F-016 | 16 | 10 | 3 | 15.6 | 2.55 | PU |
| KL69F-020 | 20 | 14 | 3 | 19.6 | 2.55 | PU |
| KL69F-025 | 25 | 19 | 3.5 | 24.4 | 3.25 | PU |
| KL69F-030 | 30 | 22 | 3.5 | 29.4 | 3.25 | PU |
| KL69F-032 | 32 | 24 | 3.5 | 31.4 | 3.25 | PU |
| KL69F-040 | 40 | 32 | 3.5 | 39.4 | 3.25 | PU |
| KL69F-050 | 50 | 42 | 3.5 | 49.4 | 3.25 | PU |
| KL69F-063 | 63 | 53 | 4.5 | 62.4 | 4.25 | PU |
| KL69F-080 | 80 | 70 | 4.5 | 79.4 | 4.25 | PU |
| KL69F-100 | 100 | 90 | 4.5 | 99.4 | 4.25 | PU |
| KL69F-125 | 125 | 105 | 8.5 | 123.8 | 8.25 | PU |
| KL69F-160 | 160 | 140 | 8.5 | 158.8 | 8.25 | PU |
