KL80 Pneumatic Cylinder Rod Seals NBR / TPE Material With Superior Wiping Performance
product detail
Product Details
Name:
KL80 Pneumatic Rod Seal
Material:
NBR / TPE
Pressure (max) Bar:
16
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
1.0
Application:
Recommended For Use In Cylinders According ISO 6432, 21287.
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
KL80 Pneumatic Rod Seal With An Elastomer Sealing Ring And A Special Designed TPE Scraper With High-Strength

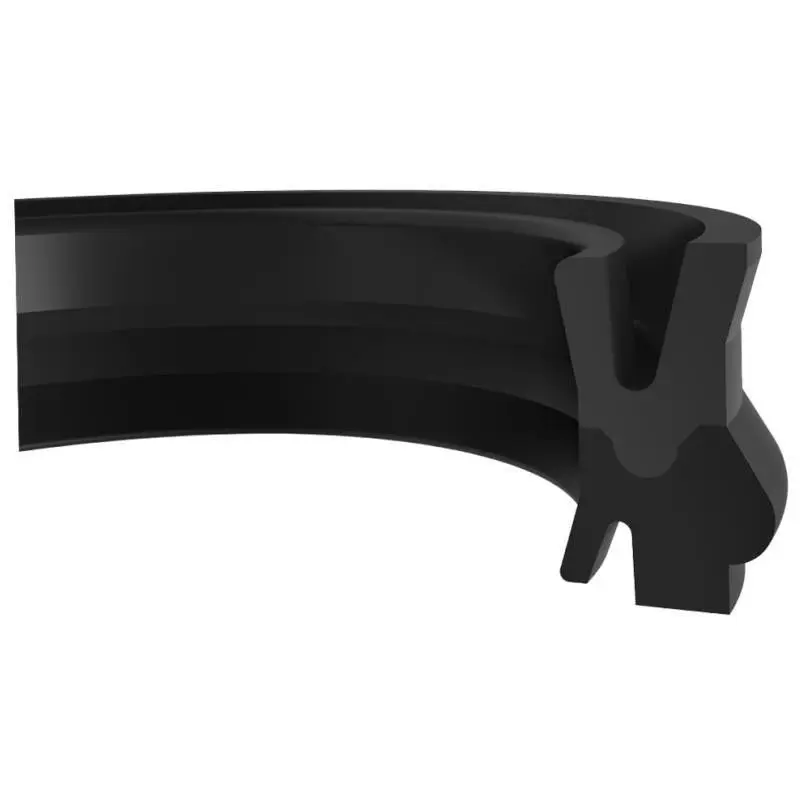

KL80 pneumatic rod seal is a single acting sealing element with an elastomer sealing ring and a special designed TPE scraper with high-strength.
Advantages
• Excellent surface scraping property in heavy duty conditions
• Good resistance to rupture, tear due to TPE scraper
• Suitable for varying operating temperatures
• Superior wiping performance
Area of Application
• Pneumatic Cylinders
• Recommended for use in cylinders according ISO 6432, 21287.

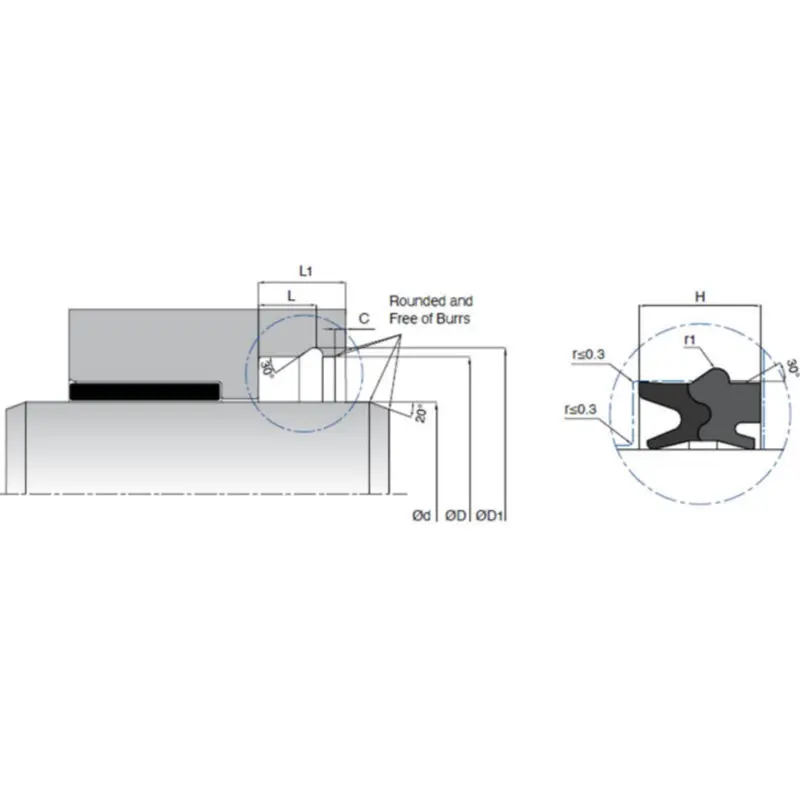

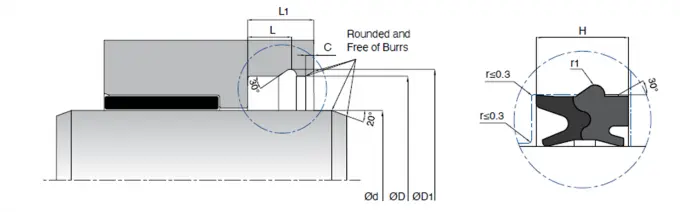

| d (f9) | D (H10) | L (+0.5/-0) | L1 (+0.2/-0) | H | D1 (+0.2/-0.1) | r1 | C | MATERIAL | |
| KL80-012 | 12 | 22 | 7.7 | 13 | 10.4 | 24 | 1.1 | 1.5 | TPE |
| KL80-014 | 14 | 24 | 7.7 | 13 | 10.4 | 26 | 1.1 | 1.5 | TPE |
| KL80-016 | 16 | 26 | 7.7 | 13 | 10.4 | 28 | 1.1 | 1.5 | TPE |
| KL80-018 | 18 | 28 | 7.7 | 13 | 11 | 30 | 1.1 | 1.5 | TPE |
| KL80-020 | 20 | 30 | 7.7 | 13 | 10.4 | 32 | 1.1 | 1.5 | TPE |
| KL80-022 | 22 | 32 | 8.9 | 13 | 11 | 34.5 | 1.4 | 2 | TPE |
| KL80-025 | 25 | 35 | 8 | 13 | 11 | 37.5 | 1.4 | 2 | TPE |
| KL80-028 | 28 | 38 | 8 | 14 | 11.5 | 40.5 | 1.4 | 2 | TPE |
| KL80-030 | 30 | 40 | 8 | 14 | 11.5 | 42.5 | 1.4 | 2 | TPE |
| KL80-032 | 32 | 42 | 8 | 13 | 11 | 44.5 | 1.4 | 2 | TPE |
| KL80-035 | 35 | 45 | 8 | 14 | 11.5 | 47.5 | 1.4 | 2 | TPE |
| KL80-040 | 40 | 50 | 8 | 13 | 11 | 52.5 | 1.4 | 2 | TPE |
| KL80-045 | 45 | 55 | 8.6 | 14 | 11.5 | 58.2 | 1.8 | 2 | TPE |
| KL80-050 | 50 | 60 | 8.6 | 14 | 11.5 | 63.2 | 1.8 | 2 | TPE |
| KL80-063 | 63 | 75 | 9.6 | 16 | 13 | 78.2 | 1.8 | 2 | TPE |
