Low Friction PTFE Wiper Seal No Stick Slip Simple Groove Design
product detail
Product Details
Name:
Low Friction PTFE Wiper Seal
Material:
PTFE / NBR
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
5.0
Area Of Application:
Iron And Steel Industry
Color:
Red / Blue / Black / Customer Color
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

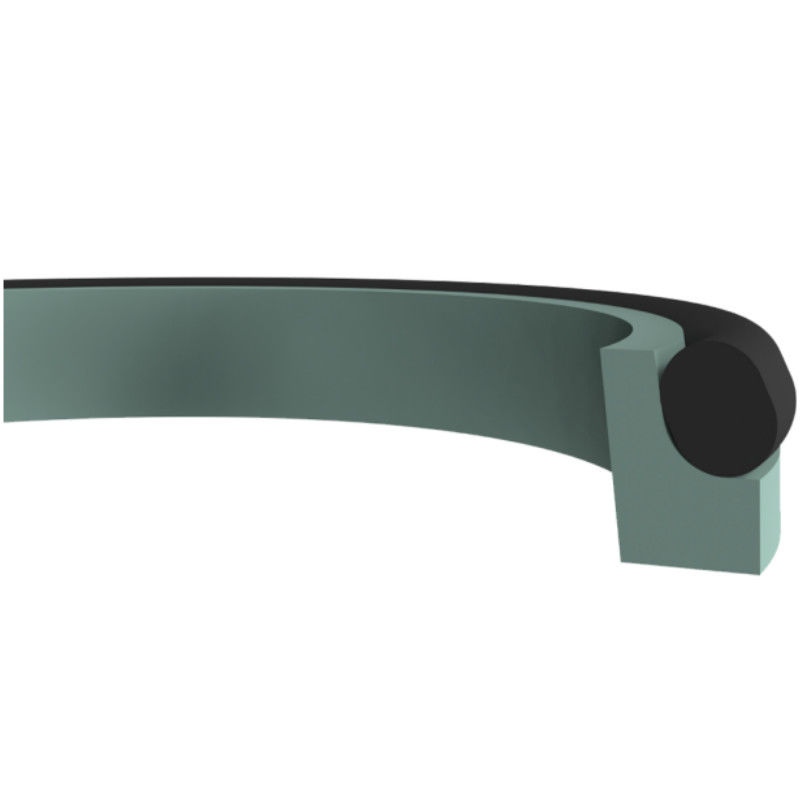

KL104 is a PTFE wiper and with an energizer oring. It can work in short gland caps thanks to small housing width. The working temperatures can change up to the oring material.
Advantages
• Low friction
• No stick-slip
• Wide range of dimensions
• Can work in high speed and frequency systems
• Simple groove design
Area of Application
• Standard industrial cylinders
• Iron and steel industry
• Injection moulding machines
• Presses

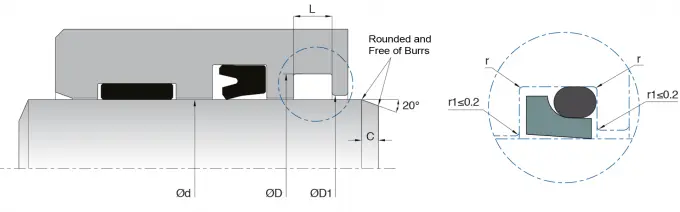

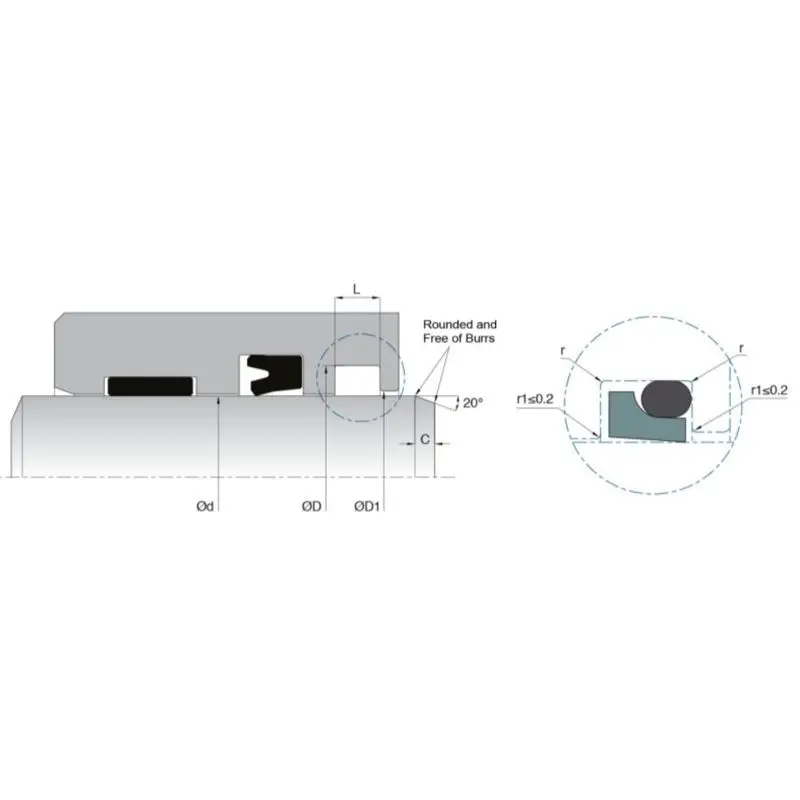

| d (f8) | D (H9) | D1 (H11) | L (+0.2/-0) | r | C | MATERIAL | |
| KL104-020 | 20 | 26.8 | 21.5 | 5 | 0.7 | 3 | PTFE |
| KL104-025 | 25 | 31.8 | 26.5 | 5 | 0.7 | 3 | PTFE |
| KL104-045 | 45 | 51.8 | 46.5 | 5 | 0.7 | 3 | PTFE |
| KL104-050 | 50 | 56.8 | 51.5 | 5 | 0.7 | 3 | PTFE |
| KL104-060 | 60 | 66.8 | 61.5 | 5 | 0.7 | 3 | PTFE |
| KL104-065 | 65 | 73.8 | 66.5 | 6 | 1 | 4 | PTFE |
| KL104-070 | 70 | 78.8 | 71.5 | 6 | 1 | 4 | PTFE |
| KL104-080 | 80 | 88.8 | 81.5 | 6 | 1 | 4 | PTFE |
| KL104-085 | 85 | 93.8 | 86.5 | 6 | 1 | 4 | PTFE |
| KL104-090 | 90 | 98.8 | 91.5 | 6 | 1 | 4 | PTFE |
| KL104-100 | 100 | 108.8 | 101.5 | 6 | 1 | 4 | PTFE |
| KL104-110 | 110 | 118.8 | 111.5 | 6 | 1 | 4 | PTFE |
| KL104-120 | 120 | 128.8 | 121.5 | 6 | 1 | 4 | PTFE |
| KL104-130 | 130 | 138.8 | 131.5 | 6 | 1 | 4 | PTFE |
| KL104-160 | 160 | 168.8 | 161.5 | 6 | 1 | 4 | PTFE |
| KL104-165 | 165 | 173.8 | 166.5 | 6 | 1 | 4 | PTFE |
| KL104-170 | 170 | 178.8 | 171.5 | 6 | 1 | 4 | PTFE |
| KL104-240 | 240 | 248.8 | 241.5 | 6 | 1 | 4 | PTFE |
| KL104-370 | 370 | 382.2 | 372 | 8.4 | 1.2 | 6 | PTFE |
