Reinforced POM Hydraulic Cylinder Piston Rings For Agricultural Machinery
product detail
Product Details
Style:
Hydraulic Cylinder Piston Rings
Material:
POM
Temperature (max) °C:
-40/+110
Sliding Speed (max)- M/s:
1.0
Application:
Agricultural Machinery / Mobile Machinery / Industrial Cylinders / Light And Medium Duty Cylinders
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

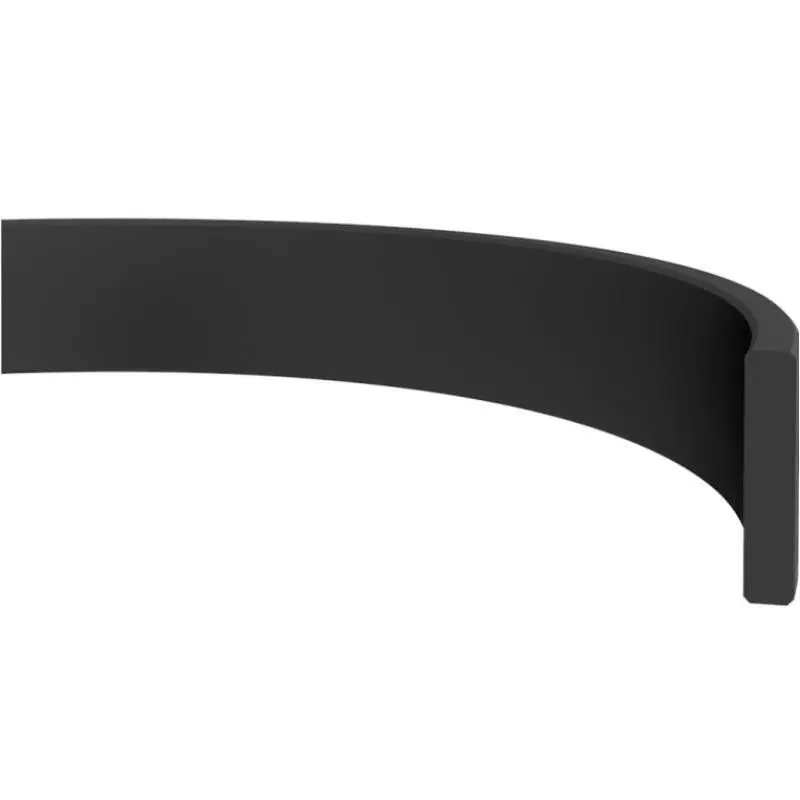

Good Load Bearing Glass-Fibre Reinforced POM Guide Ring With In Hydraulic Applications
KL52 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.
Advantages
• Easy installation
• The high form stability at operating temperature range
• Wide dimension range
• The high form stability at operating temperature range
• Wide dimension range
Area of Application
• Agricultural machinery
• Mobile machinery
• Industrial cylinders
• Light and medium duty cylinders

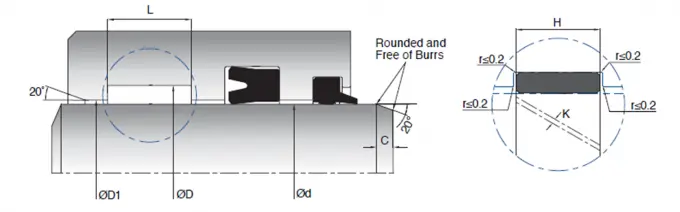

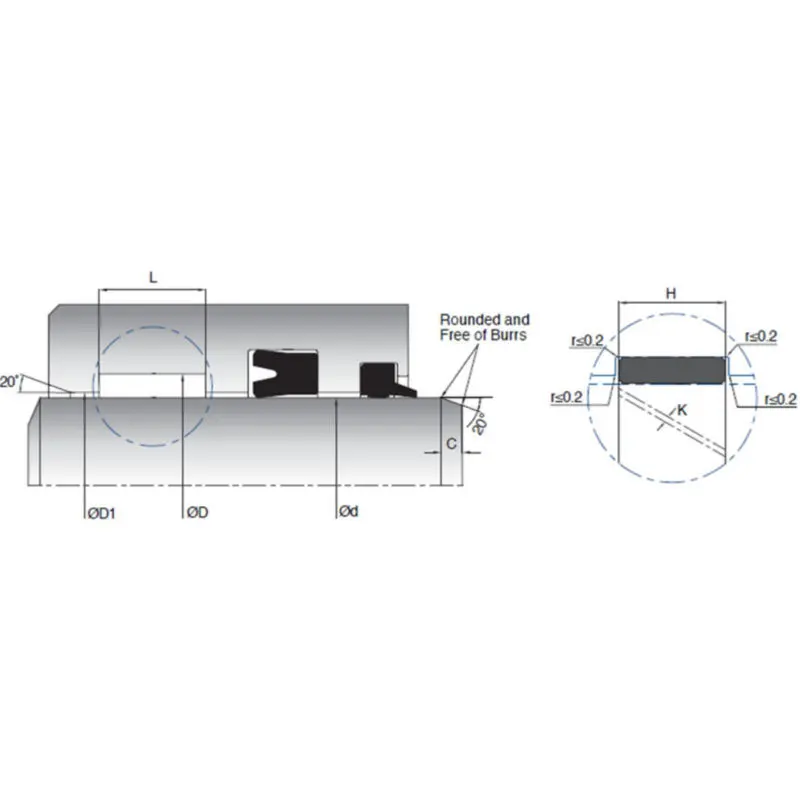

| d (f8) | D (H8) | D1 (H9) | L (+0.2/-0) | H | MATERIAL | |
| K52-008 | 8 | 11 | 8.4 | 3.3 | 3.1 | POM |
| K52-015 | 15 | 20 | 15.5 | 5.7 | 5.5 | POM |
| K52-016 | 16 | 20 | 16.4 | 9.6 | 9.4 | POM |
| K52-016/1 | 16 | 19 | 16.4 | 6 | 5.8 | POM |
| K52-018 | 18 | 22 | 18.4 | 9.6 | 9.4 | POM |
| K52-018/1 | 18 | 22 | 18.4 | 15 | 14.8 | POM |
| K52-020 | 20 | 24 | 20.4 | 9.6 | 9.4 | POM |
| K52-020/1 | 20 | 26 | 20.6 | 4 | 3.8 | POM |
| K52-020/2 | 20 | 26 | 20.6 | 9.7 | 9.5 | POM |
| K52-020/3 | 20 | 25 | 20.5 | 5.6 | 5.4 | POM |
| K52-020/5 | 20 | 23 | 20.4 | 2.5 | 2.3 | POM |
| K52-020/6 | 20 | 23 | 20.4 | 5.6 | 5.4 | POM |
| K52-022 | 22 | 26 | 22.4 | 9.6 | 9.4 | POM |
| K52-022/1 | 22 | 25 | 22.4 | 4.2 | 4 | POM |
| K52-022/2 | 22 | 27 | 22.5 | 9.7 | 9.5 | POM |
| K52-022/4 | 22 | 26 | 22.4 | 5.2 | 5 | POM |
| K52-025 | 25 | 31 | 25.6 | 9.6 | 9.4 | POM |
| K52-025/1 | 25 | 29 | 25.4 | 9.6 | 9.4 | POM |
| K52-025/2 | 25 | 30 | 25.5 | 5.6 | 5.4 | POM |
| K52-025/3 | 25 | 31 | 25.6 | 9.9 | 9.7 | POM |
| K52-025/4 | 25 | 29 | 25.4 | 6.4 | 6.2 | POM |
| K52-025/5 | 25 | 30 | 25.5 | 15.2 | 15 | POM |
| K52-025/7 | 25 | 28 | 25.4 | 5.5 | 5.3 | POM |
| K52-025/8 | 25 | 28 | 25.4 | 3.2 | 3 | POM |
| K52-025/10 | 25 | 29 | 25.4 | 5.6 | 5.4 | POM |
| K52-026 | 26 | 32 | 26.6 | 10 | 9.8 | POM |
| K52-027 | 27 | 32 | 27.5 | 5.6 | 5.4 | POM |
| K52-027/1 | 27 | 31 | 27.4 | 9.6 | 9.4 | POM |
| K52-028 | 28 | 32 | 28.4 | 9.7 | 9.5 | POM |
| K52-028/2 | 28 | 33 | 28.5 | 6.4 | 6.2 | POM |
| K52-028/3 | 28 | 33 | 28.5 | 5.7 | 5.5 | POM |
| K52-028/4 | 28 | 34 | 28.6 | 9.7 | 9.5 | POM |
| K52-028/5 | 28 | 33 | 28.5 | 9.7 | 9.5 | POM |
| K52-028/6 | 28 | 32 | 28.4 | 6.4 | 6.2 | POM |
| K52-028/7 | 28 | 32 | 28.4 | 10.2 | 10 | POM |
| K52-030 | 30 | 35 | 30.5 | 15.2 | 15 | POM |
| K52-030/1 | 30 | 34 | 30.4 | 9.7 | 9.5 | POM |
| K52-030/2 | 30 | 36 | 30.6 | 9.5 | 9.3 | POM |
| K52-030/3 | 30 | 35 | 30.5 | 9.7 | 9.5 | POM |
| K52-030/4 | 30 | 35 | 30.5 | 8.2 | 8 | POM |
| K52-030/5 | 30 | 35 | 30.5 | 5.6 | 5.4 | POM |
| K52-032 | 32 | 36 | 32.4 | 9.7 | 9.5 | POM |
| K52-032/1 | 32 | 38 | 32.6 | 9.6 | 9.4 | POM |
| K52-032/2 | 32 | 37 | 32.5 | 11.2 | 11 | POM |
| K52-032/3 | 32 | 37 | 32.5 | 5.6 | 5.4 | POM |
| K52-032/4 | 32 | 35.1 | 32.4 | 4 | 3.8 | POM |
| K52-032/5 | 32 | 36 | 32.4 | 6.4 | 6.2 | POM |
| K52-033 | 33 | 36 | 33.4 | 4 | 3.8 | POM |
| K52-035 | 35 | 40 | 35.5 | 15.2 | 15 | POM |
| K52-035/1 | 35 | 39 | 35.4 | 9.7 | 9.5 | POM |
| K52-035/2 | 35 | 40 | 35.5 | 9.9 | 9.7 | POM |
| K52-035/3 | 35 | 41 | 35.6 | 9.6 | 9.4 | POM |
| K52-035/4 | 35 | 40 | 35.5 | 5.6 | 5.4 | POM |
| K52-035/5 | 35 | 40 | 35.5 | 6.3 | 6.1 | POM |
| K52-035/6 | 35 | 40 | 35.5 | 9.7 | 9.5 | POM |
| K52-035/7 | 35 | 41 | 35.6 | 20 | 19.8 | POM |
| K52-035/8 | 35 | 39 | 35.4 | 6.5 | 6.3 | POM |
| K52-035/10 | 35 | 41 | 35.6 | 13 | 12.8 | POM |
| K52-036 | 36 | 40 | 36.4 | 9.7 | 9.5 | POM |
| K52-036/1 | 36 | 42 | 36.6 | 9.8 | 9.6 | POM |
| K52-036/2 | 36 | 41 | 36.5 | 9.7 | 9.5 | POM |
| K52-036/3 | 36 | 41 | 36.5 | 5.6 | 5.4 | POM |
| K52-036/4 | 36 | 40 | 36.4 | 6.1 | 5.9 | POM |
| K52-036/5 | 36 | 40 | 36.4 | 6.4 | 6.2 | POM |
| K52-036/7 | 36 | 40 | 36.4 | 15.2 | 15 | POM |
| K52-038 | 38 | 42 | 38.4 | 9.6 | 9.4 | POM |
| K52-038/1 | 38 | 41 | 38.4 | 21 | 20.8 | POM |
| K52-038/2 | 38 | 42 | 38.4 | 4.2 | 4 | POM |
| K52-039 | 39 | 44 | 39.5 | 15.4 | 15.2 | POM |
| K52-039/1 | 39 | 45 | 39.6 | 10 | 9.8 | POM |
| K52-040 | 40 | 45 | 40.5 | 15.2 | 15 | POM |
| K52-040/1 | 40 | 44 | 40.4 | 9.7 | 9.5 | POM |
| K52-040/2 | 40 | 46 | 40.6 | 9.8 | 9.6 | POM |
| K52-040/3 | 40 | 45 | 40.5 | 9.7 | 9.5 | POM |
| K52-040/4 | 40 | 45 | 40.5 | 20.2 | 20 | POM |
| K52-040/5 | 40 | 45 | 40.5 | 5 | 4.8 | POM |
| K52-040/6 | 40 | 45 | 40.5 | 5.6 | 5.4 | POM |
| K52-040/7 | 40 | 46 | 40.6 | 13 | 12.8 | POM |
| K52-040/8 | 40 | 44 | 40.4 | 6.5 | 6.3 | POM |
| K52-040/9 | 40 | 45 | 40.5 | 9.8 | 9.6 | POM |
| K52-040/10 | 40 | 46 | 40.6 | 9.7 | 9.5 | POM |
| K52-040/11 | 40 | 45 | 40.5 | 9.9 | 9.7 | POM |
| K52-040/12 | 40 | 45 | 40.5 | 8.2 | 8 | POM |
| K52-043 | 43 | 48 | 43.5 | 5.8 | 5.6 | POM |
| K52-044.45 | 44.45 | 50.8 | 45.05 | 19.25 | 19.05 | POM |
| K52-045 | 45 | 50 | 45.5 | 15.2 | 15 | POM |
| K52-045/1 | 45 | 51 | 45.6 | 9.7 | 9.5 | POM |
| K52-045/2 | 45 | 50 | 45.5 | 9.7 | 9.5 | POM |
| K52-045/3 | 45 | 51 | 45.6 | 12.7 | 12.5 | POM |
| K52-045/4 | 45 | 49 | 45.4 | 20 | 19.8 | POM |
| K52-045/5 | 45 | 50 | 45.5 | 5.6 | 5.4 | POM |
| K52-045/6 | 45 | 50 | 45.5 | 9.9 | 9.7 | POM |
| K52-045/7 | 45 | 48 | 45.4 | 4 | 3.8 | POM |
| K52-045/8 | 45 | 51 | 45.6 | 20 | 19.8 | POM |
| K52-045/9 | 45 | 51 | 45.6 | 8.2 | 8 | POM |
| K52-045/10 | 45 | 50 | 45.5 | 8.2 | 8 | POM |
| K52-046 | 46 | 50 | 46.4 | 15.2 | 15 | POM |
| K52-046/1 | 46 | 50 | 46.4 | 4.2 | 4 | POM |
| K52-048 | 48 | 54 | 48.6 | 9.8 | 9.6 | POM |
| K52-048/1 | 48 | 53 | 48.5 | 9.6 | 9.4 | POM |
| K52-050 | 50 | 55 | 50.5 | 15.2 | 15 | POM |
| K52-050/1 | 50 | 56 | 50.6 | 9.7 | 9.5 | POM |
| K52-050/2 | 50 | 56 | 50.6 | 12.7 | 12.5 | POM |
| K52-050/3 | 50 | 55 | 50.5 | 8.2 | 8 | POM |
| K52-050/4 | 50 | 55 | 50.5 | 20.2 | 20 | POM |
| K52-050/5 | 50 | 55 | 50.5 | 9.7 | 9.5 | POM |
| K52-050/6 | 50 | 55 | 50.5 | 5.6 | 5.4 | POM |
| K52-050/8 | 50 | 55 | 50.5 | 9.9 | 9.7 | POM |
| K52-050/10 | 50 | 53 | 50.4 | 5.6 | 5.4 | POM |
| K52-050/11 | 50 | 56 | 50.6 | 20.2 | 20 | POM |
| K52-050/12 | 50 | 56 | 50.6 | 8.2 | 8 | POM |
| K52-050.8 | 50.8 | 57.15 | 51.4 | 19.25 | 19.05 | POM |
| K52-050.8/1 | 50.8 | 53.98 | 51.2 | 25.6 | 25.4 | POM |
| K52-050.8/2 | 50.8 | 57.15 | 51.4 | 12.8 | 12.6 | POM |
| K52-055 | 55 | 60 | 55.5 | 15.2 | 15 | POM |
| K52-055/1 | 55 | 61 | 55.6 | 9.7 | 9.5 | POM |
| K52-055/2 | 55 | 60 | 55.5 | 8.2 | 8 | POM |
| K52-055/3 | 55 | 60 | 55.5 | 20.2 | 20 | POM |
| K52-055/4 | 55 | 61 | 55.6 | 12.7 | 12.5 | POM |
| K52-055/5 | 55 | 60 | 55.5 | 9.7 | 9.5 | POM |
| K52-055/6 | 55 | 60 | 55.5 | 5.6 | 5.4 | POM |
| K52-055/7 | 55 | 60 | 55.5 | 5.8 | 5.6 | POM |
| K52-055/8 | 55 | 60 | 55.5 | 9.9 | 9.7 | POM |
| K52-056 | 56 | 62 | 56.6 | 12.7 | 12.5 | POM |
| K52-056/1 | 56 | 60 | 56.4 | 9.8 | 9.6 | POM |
| K52-056/2 | 56 | 61 | 56.5 | 9.7 | 9.5 | POM |
| K52-056/3 | 56 | 60 | 56.4 | 8.1 | 7.9 | POM |
| K52-056/4 | 56 | 62 | 56.6 | 20.2 | 20 | POM |
| K52-056/6 | 56 | 61 | 56.5 | 9.9 | 9.7 | POM |
| K52-056/7 | 56 | 62 | 56.6 | 8.2 | 8 | POM |
| K52-058 | 58 | 63 | 58.5 | 9.7 | 9.5 | POM |
| K52-058/1 | 58 | 63 | 58.5 | 5.6 | 5.4 | POM |
| K52-058/2 | 58 | 63 | 58.5 | 10 | 9.8 | POM |
| K52-058/3 | 58 | 63 | 58.5 | 15.2 | 15 | POM |
| K52-060 | 60 | 65 | 60.5 | 15.2 | 15 | POM |
| K52-060/1 | 60 | 66 | 60.6 | 12.7 | 12.5 | POM |
| K52-060/2 | 60 | 65 | 60.5 | 9.7 | 9.5 | POM |
| K52-060/3 | 60 | 65 | 60.5 | 20.2 | 20 | POM |
| K52-060/4 | 60 | 65 | 60.5 | 8.2 | 8 | POM |
| K52-060/5 | 60 | 66 | 60.6 | 9.9 | 9.7 | POM |
| K52-060/6 | 60 | 65 | 60.5 | 5.5 | 5.3 | POM |
| K52-060/7 | 60 | 64 | 60.4 | 19.5 | 19.3 | POM |
| K52-060/8 | 60 | 64 | 60.4 | 10.2 | 10 | POM |
| K52-060/9 | 60 | 66 | 60.6 | 9.7 | 9.5 | POM |
| K52-060/10 | 60 | 65 | 60.5 | 9.5 | 9.3 | POM |
| K52-060/11 | 60 | 65 | 60.5 | 9.9 | 9.7 | POM |
| K52-060/12 | 60 | 65 | 60.5 | 24.7 | 24.5 | POM |
| K52-060/13 | 60.3 | 63.33 | 60.7 | 15 | 14.8 | POM |
| K52-060/14 | 60 | 65 | 60.5 | 4.2 | 4 | POM |
| K52-060/15 | 60 | 66 | 60.6 | 20.2 | 20 | POM |
| K52-060/16 | 60 | 66 | 60.6 | 8.2 | 8 | POM |
| K52-062 | 62 | 65 | 62.4 | 20 | 19.8 | POM |
| K52-063 | 63 | 69 | 63.6 | 12.7 | 12.5 | POM |
| K52-063/1 | 63 | 68 | 63.5 | 9.7 | 9.5 | POM |
| K52-063/2 | 63 | 67 | 63.4 | 6.5 | 6.3 | POM |
| K52-063/4 | 63 | 69 | 63.6 | 30.2 | 30 | POM |
| K52-063/5 | 63 | 68 | 63.5 | 30.2 | 30 | POM |
| K52-063/6 | 63 | 69 | 63.6 | 9.2 | 9 | POM |
| K52-063.5 | 63.4 | 66.68 | 63.8 | 25.2 | 25 | POM |
| K52-065 | 65 | 70 | 65.5 | 15.2 | 15 | POM |
| K52-065/1 | 65 | 71 | 65.6 | 12.7 | 12.5 | POM |
| K52-065/2 | 65 | 70 | 65.5 | 5.6 | 5.4 | POM |
| K52-065/3 | 65 | 70 | 65.5 | 7 | 6.8 | POM |
| K52-065/4 | 65 | 70 | 65.5 | 9.9 | 9.7 | POM |
| K52-065/5 | 65 | 70 | 65.5 | 9.7 | 9.5 | POM |
| K52-066 | 66 | 70 | 66.4 | 10 | 9.8 | POM |
| K52-067 | 67 | 72 | 67.5 | 5.6 | 5.4 | POM |
| K52-069.85 | 69.85 | 76.2 | 70.45 | 19.25 | 19.05 | POM |
| K52-070 | 70 | 75 | 70.5 | 15.2 | 15 | POM |
| K52-070/1 | 70 | 76 | 70.6 | 12.7 | 12.5 | POM |
| K52-070/2 | 70 | 75 | 70.5 | 5.6 | 5.4 | POM |
| K52-070/3 | 70 | 76 | 70.6 | 25.2 | 25 | POM |
| K52-070/4 | 70 | 76 | 70.6 | 10.2 | 10 | POM |
| K52-070/5 | 70 | 75 | 70.5 | 9.7 | 9.5 | POM |
| K52-070/7 | 70 | 75 | 70.5 | 30.2 | 30 | POM |
| K52-070/8 | 70 | 75 | 70.5 | 9.9 | 9.7 | POM |
| K52-070/9 | 70 | 75 | 70.5 | 39.7 | 39.5 | POM |
| K52-070/12 | 70 | 75 | 70.5 | 20.2 | 20 | POM |
| K52-072 | 72 | 80 | 72.6 | 6.2 | 6 | POM |
| K52-072/1 | 72 | 78 | 72.6 | 12.7 | 12.5 | POM |
| K52-075 | 75 | 80 | 75.5 | 15.2 | 15 | POM |
| K52-075/1 | 75 | 81 | 75.6 | 12.7 | 12.5 | POM |
| K52-075/2 | 75 | 80 | 75.5 | 8.2 | 8 | POM |
| K52-075/3 | 75 | 80 | 75.5 | 9.7 | 9.5 | POM |
| K52-075/4 | 75 | 80 | 75.5 | 5.6 | 5.4 | POM |
| K52-075/6 | 75 | 83 | 75.6 | 9.7 | 9.5 | POM |
| K52-075/7 | 75 | 81 | 75.6 | 19.2 | 19 | POM |
| K52-075/8 | 75 | 80 | 75.5 | 9.9 | 9.7 | POM |
| K52-075/9 | 75 | 80 | 75.5 | 25.2 | 25 | POM |
| K52-080 | 80 | 85 | 80.5 | 15.2 | 15 | POM |
| K52-080/1 | 80 | 86 | 80.6 | 12.7 | 12.5 | POM |
| K52-080/2 | 80 | 84 | 80.4 | 9.5 | 9.3 | POM |
| K52-080/3 | 80 | 85 | 80.5 | 9.7 | 9.5 | POM |
| K52-080/4 | 80 | 86 | 80.6 | 25 | 24.8 | POM |
| K52-080/5 | 80 | 85 | 80.5 | 20 | 19.8 | POM |
| K52-080/6 | 80 | 84 | 80.4 | 8.3 | 8.1 | POM |
| K52-080/7 | 80 | 86 | 80.6 | 30.2 | 30 | POM |
| K52-080/8 | 80 | 85 | 80.5 | 9.9 | 9.7 | POM |
| K52-080/9 | 80 | 85 | 80.5 | 5.6 | 5.4 | POM |
| K52-080/10 | 80 | 84 | 80.4 | 15 | 14.8 | POM |
| K52-080/11 | 80 | 85 | 80.5 | 9.5 | 9.3 | POM |
| K52-080/12 | 80 | 85 | 80.5 | 24.7 | 24.5 | POM |
| K52-084 | 84 | 90 | 84.6 | 15.2 | 15 | POM |
| K52-085 | 85 | 90 | 85.5 | 15.2 | 15 | POM |
| K52-085/1 | 85 | 91 | 85.6 | 12.7 | 12.5 | POM |
| K52-085/2 | 85 | 90 | 85.5 | 5.7 | 5.5 | POM |
| K52-085/3 | 85 | 90 | 85.5 | 9.9 | 9.7 | POM |
| K52-085/4 | 85 | 90 | 85.5 | 9.7 | 9.5 | POM |
| K52-086 | 86 | 92 | 86.6 | 12.7 | 12.5 | POM |
| K52-090 | 90 | 95 | 90.5 | 15.2 | 15 | POM |
| K52-090/1 | 90 | 96 | 90.6 | 12.7 | 12.5 | POM |
| K52-090/2 | 90 | 95 | 90.5 | 9.7 | 9.5 | POM |
| K52-090/3 | 90 | 95 | 90.5 | 5.8 | 5.6 | POM |
| K52-090/4 | 90 | 94 | 90.4 | 15.2 | 15 | POM |
| K52-090/6 | 90 | 96 | 90.6 | 40 | 39.8 | POM |
| K52-090/7 | 90 | 96 | 90.6 | 30.2 | 30 | POM |
| K52-090/8 | 90 | 95 | 90.5 | 9.9 | 9.7 | POM |
| K52-094 | 94 | 100 | 94.6 | 13 | 12.8 | POM |
| K52-094/1 | 94 | 100 | 94.6 | 15.2 | 15 | POM |
| K52-095 | 95 | 100 | 95.5 | 15.2 | 15 | POM |
| K52-095/1 | 95 | 101 | 95.6 | 12.7 | 12.5 | POM |
| K52-095/2 | 95 | 100 | 95.5 | 9.7 | 9.5 | POM |
| K52-095/3 | 95 | 100 | 95.5 | 5.6 | 5.4 | POM |
| K52-095/4 | 95 | 103 | 95.6 | 9.7 | 9.5 | POM |
| K52-095/6 | 95 | 100 | 95.5 | 8.2 | 8 | POM |
| K52-100 | 100 | 105 | 100.5 | 15.2 | 15 | POM |
| K52-100/1 | 100 | 106 | 100.6 | 12.7 | 12.5 | POM |
| K52-100/2 | 100 | 104 | 100.4 | 15.2 | 15 | POM |
| K52-100/3 | 100 | 105 | 100.5 | 9.9 | 9.7 | POM |
| K52-100/4 | 100 | 104 | 100.4 | 15 | 14.8 | POM |
| K52-100/5 | 100 | 105 | 100.5 | 15 | 14.8 | POM |
| K52-100/6 | 100 | 105 | 100.5 | 9.7 | 9.5 | POM |
| K52-104 | 104 | 110 | 104.6 | 10.2 | 10 | POM |
| K52-105 | 105 | 110 | 105.5 | 15.2 | 15 | POM |
| K52-105/1 | 105 | 110 | 105.5 | 8.2 | 8 | POM |
| K52-105/2 | 105 | 110 | 105.5 | 9.7 | 9.5 | POM |
| K52-105/4 | 105 | 115 | 105.6 | 17.2 | 17 | POM |
| K52-105/5 | 105 | 110 | 105.5 | 9.9 | 9.7 | POM |
| K52-110 | 110 | 116 | 110.6 | 12.7 | 12.5 | POM |
| K52-110/1 | 110 | 115 | 110.5 | 9.7 | 9.5 | POM |
| K52-110/2 | 110 | 115 | 110.5 | 20.2 | 20 | POM |
| K52-110/3 | 110 | 116 | 110.6 | 7.7 | 7.5 | POM |
| K52-110/5 | 110 | 116 | 110.6 | 25.6 | 25.4 | POM |
| K52-115 | 115 | 120 | 115.5 | 15.2 | 15 | POM |
| K52-115/1 | 115 | 121 | 115.6 | 12.7 | 12.5 | POM |
| K52-115/2 | 115 | 120 | 115.5 | 9.7 | 9.5 | POM |
| K52-115/3 | 115 | 120 | 115.5 | 15 | 14.8 | POM |
| K52-120 | 120 | 125 | 120.5 | 15.2 | 15 | POM |
| K52-120/1 | 120 | 126 | 120.6 | 12.7 | 12.5 | POM |
| K52-120/2 | 120 | 125 | 120.5 | 9.7 | 9.5 | POM |
| K52-120/3 | 120 | 125 | 120.5 | 9.9 | 9.7 | POM |
| K52-125 | 125 | 131 | 125.6 | 12.7 | 12.5 | POM |
| K52-125/1 | 125 | 130 | 125.5 | 15.2 | 15 | POM |
| K52-125/2 | 125 | 130 | 125.5 | 7.2 | 7 | POM |
| K52-125/3 | 125 | 130 | 125.5 | 9.9 | 9.7 | POM |
| K52-125/4 | 125 | 130 | 125.5 | 15 | 14.8 | POM |
| K52-130 | 130 | 135 | 130.5 | 15.2 | 15 | POM |
| K52-130/1 | 130 | 136 | 130.6 | 12.7 | 12.5 | POM |
| K52-135 | 135 | 140 | 135.5 | 9.7 | 9.5 | POM |
| K52-135/1 | 135 | 140 | 135.5 | 15.2 | 15 | POM |
| K52-140 | 140 | 145 | 140.5 | 15.2 | 15 | POM |
| K52-140/1 | 140 | 146 | 140.6 | 12.7 | 12.5 | POM |
| K52-140/2 | 140 | 145 | 140.5 | 9.9 | 9.7 | POM |
| K52-140/3 | 140 | 145 | 140.5 | 25 | 24.8 | POM |
| K52-146 | 146 | 150 | 146.4 | 10.2 | 10 | POM |
| K52-150 | 150 | 155 | 150.5 | 15.2 | 15 | POM |
| K52-150/1 | 150 | 156 | 150.6 | 12.7 | 12.5 | POM |
| K52-150/2 | 150 | 154 | 150.4 | 15.2 | 15 | POM |
| K52-150/4 | 150 | 160 | 150.6 | 35 | 34.8 | POM |
| K52-150/5 | 150 | 155 | 150.5 | 25 | 24.8 | POM |
| K52-150/6 | 150 | 156 | 150.6 | 19.2 | 19 | POM |
| K52-155 | 155 | 160 | 155.5 | 15.2 | 15 | POM |
| K52-155/1 | 155 | 160 | 155.5 | 9.7 | 9.5 | POM |
| K52-160 | 160 | 165 | 160.5 | 15.2 | 15 | POM |
| K52-160/1 | 160 | 166 | 160.6 | 12.7 | 12.5 | POM |
| K52-160/2 | 160 | 166 | 160.6 | 19.1 | 18.9 | POM |
| K52-170 | 170 | 175 | 170.5 | 15.2 | 15 | POM |
| K52-175 | 175 | 180 | 175.5 | 9.7 | 9.5 | POM |
| K52-180 | 180 | 185 | 180.5 | 15.2 | 15 | POM |
| K52-180/1 | 180 | 186 | 180.6 | 19.2 | 19 | POM |
| K52-190 | 190 | 195 | 190.5 | 15.2 | 15 | POM |
| K52-195 | 195 | 200 | 195.5 | 15.2 | 15 | POM |
| K52-200 | 200 | 206 | 200.6 | 19.2 | 19 | POM |
| K52-200/1 | 200 | 205 | 200.5 | 15.2 | 15 | POM |
| K52-210 | 210 | 216 | 210.6 | 19.2 | 19 | POM |
| K52-220 | 220 | 226 | 220.6 | 19.2 | 19 | POM |
