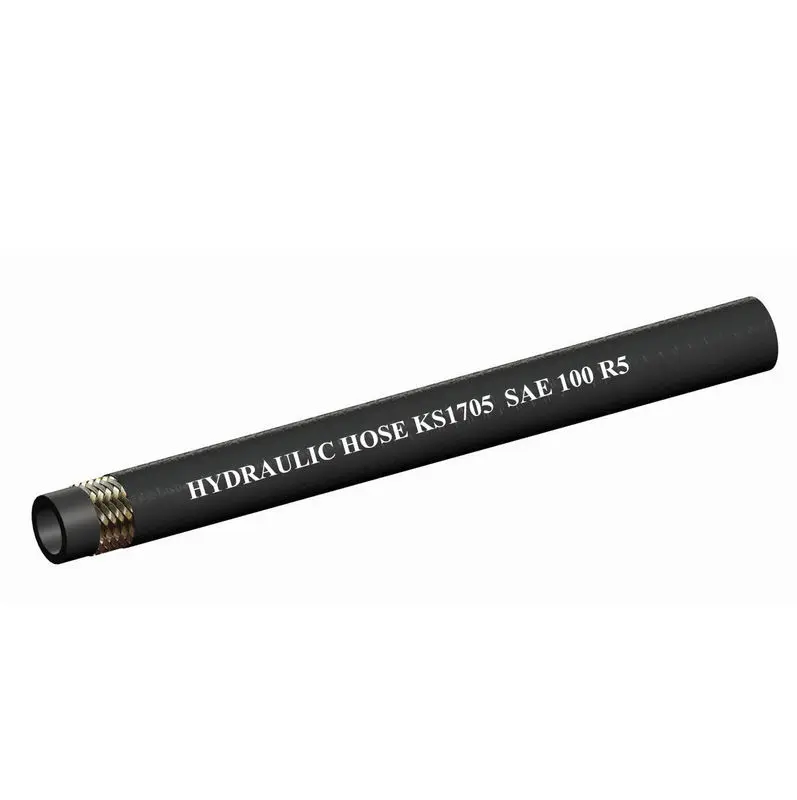

SAE 100R5 Hydraulic Hose Wire Braid Textile Cover

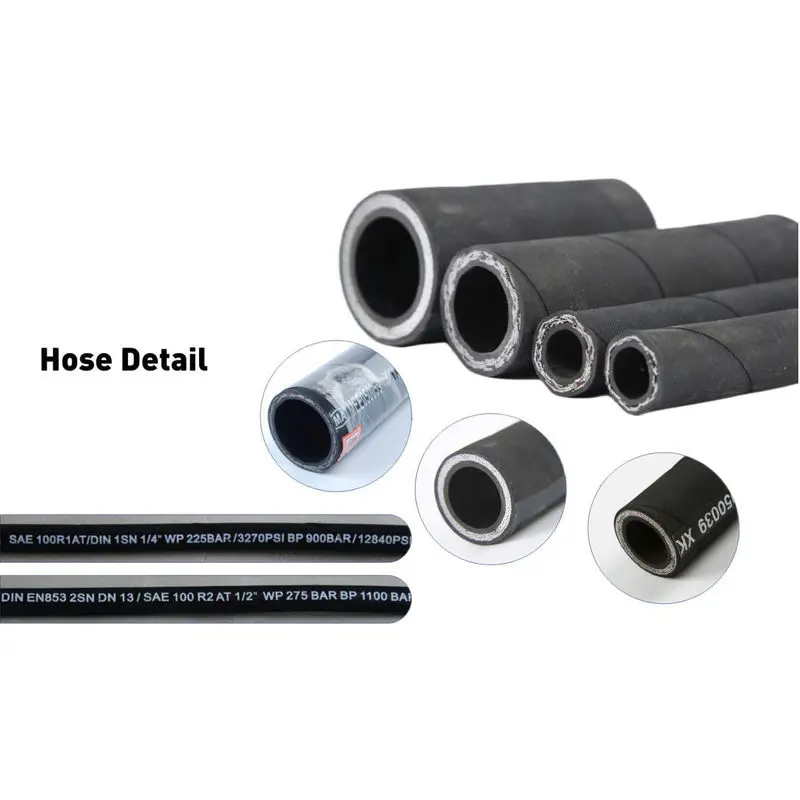

TUBE:
Oil-resistant synthetic rubber inner layer + wire braid + Textile Cover
Reinforcement:
One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid to improve tube and cover adhesion.
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)

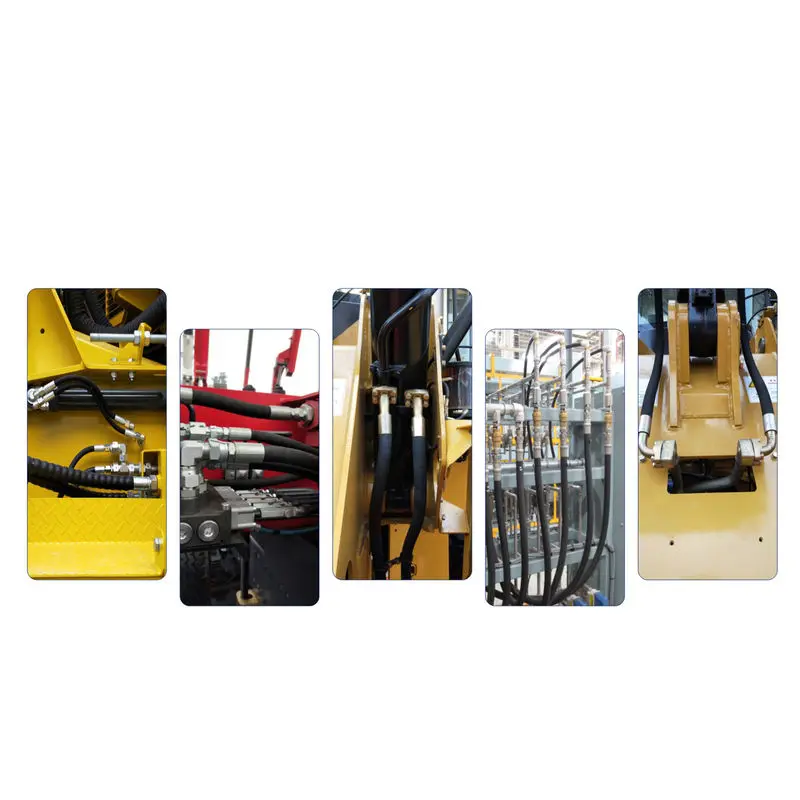

Applications:Suitable for petroleum-based hydraulic oil.
TYPE | Dash size | I.D | O.D | Working pressure | Proof pressure | Min Burst pressure | Min Bend radius | W.T | ||||||||
W.P | P. P | B.P | Min B.R | |||||||||||||
mm | 1/16 | Inch | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
KS1705-03 | 5 | -3 | 3/16 | 4.8 | 5.5 | 12.7 | 13.7 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 2.95 | 75 | 0.24 |
KS1705-04 | 6.3 | -4 | 1/4 | 6.4 | 7.2 | 14.3 | 15.3 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.35 | 85 | 0.28 |
KS1705-05 | 8 | -5 | 5/16 | 7.9 | 8.7 | 16.7 | 17.6 | 15.7 | 2270 | 31.5 | 4570 | 63 | 9135 | 3.94 | 100 | 0.35 |
KS1705-06 | 11 | -6 | 13/32 | 10.3 | 11.1 | 18.9 | 20.0 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 4.53 | 115 | 0.38 |
KS1705-08 | 12.5 | -8 | 1/2 | 12.7 | 13.7 | 22.8 | 24.0 | 12.2 | 1770 | 24.5 | 3550 | 49 | 7105 | 5.51 | 140 | 0.51 |
KS1705-10 | 16 | -10 | 5/8 | 15.9 | 17.0 | 26.8 | 28.0 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 6.50 | 165 | 0.68 |
KS1705-16 | 22 | -16 | 7/8 | 22.2 | 23.3 | 30.6 | 32.2 | 5.6 | 810 | 11.2 | 1620 | 22.4 | 3250 | 7.28 | 185 | 0.70 |
KS1705-20 | 29 | -20 | 1-3/8 | 28.6 | 29.8 | 37.3 | 38.9 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 9.06 | 230 | 0.80 |
KS1705-24 | 35 | -24 | 1-1/4 | 34.9 | 36.1 | 43.7 | 45.2 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 10.43 | 265 | 0.93 |
KS1705-32 | 46 | -32 | 1-13/16 | 46.0 | 47.2 | 55.2 | 57.6 | 2.4 | 350 | 4.9 | 700 | 9.8 | 1420 | 13.19 | 335 | 1.32 |
KS1705-40 | 60 | -40 | 2-3/8 | 603.0 | 61.9 | 71.8 | 74.2 | 2.4 | 350 | 4.9 | 700 | 9.8 | 1420 | 24.02 | 610 | 2.96 |
KS1705-48 | 76 | -48 | 3 | 76.2 | 77.8 | 89.3 | 91.7 | 1.4 | 200 | 2.8 | 410 | 5.6 | 810 | 33.07 | 840 | 4.10 |
