Single Acting Forklift Hydraulic Cylinder Seals Replacement
product detail
Product Details
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
250
Material:
NBR / FABRIC NBR
Sliding Speed (max)- M/s:
0.5
Style:
Hydraulic Rod Seals
Application:
Standard Industrial Cylinders / Mobile Machinery
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

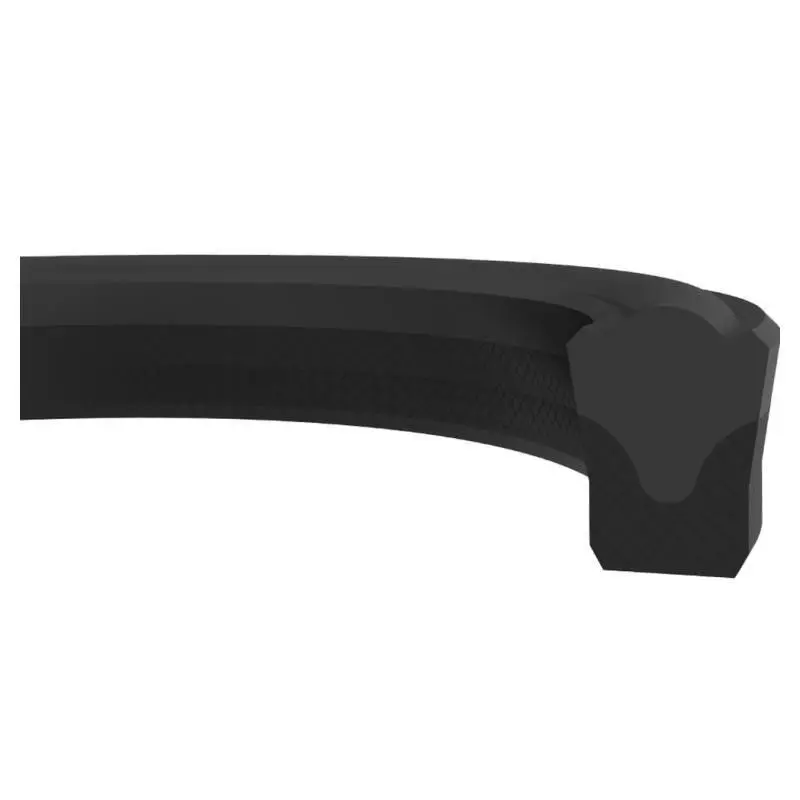

KL13 is a single acting rod seal consisting of fabric elastomer at the back side and elastomer at the front side. It can be used in standard cylinder applications.
Advantages
•High extrusion resistance
• Optimum performace under variable
pressure levels
Area of Application
• Mobile machinery
• Standard industrial cylinders

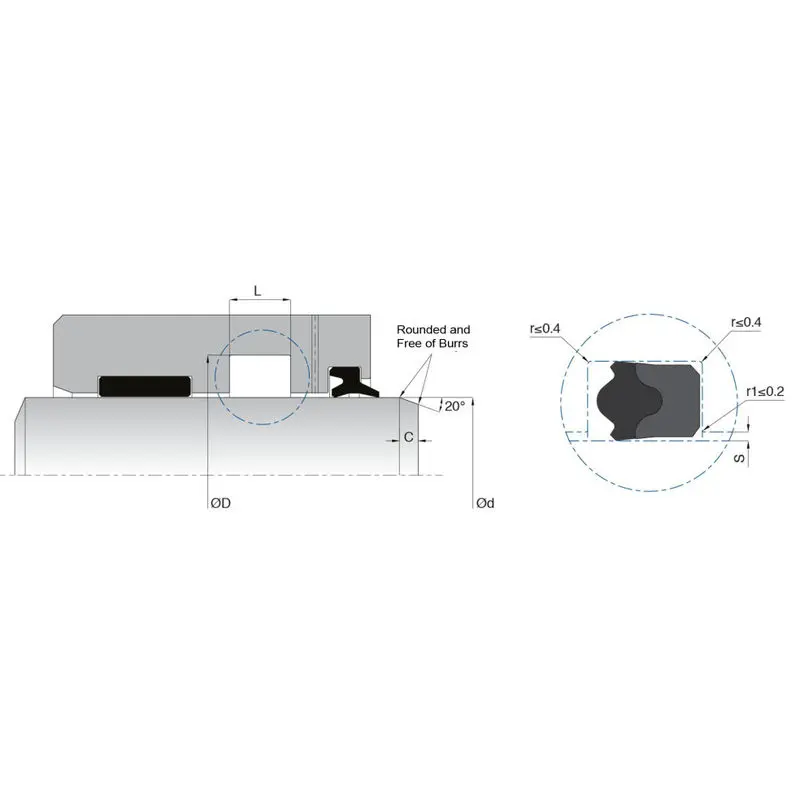

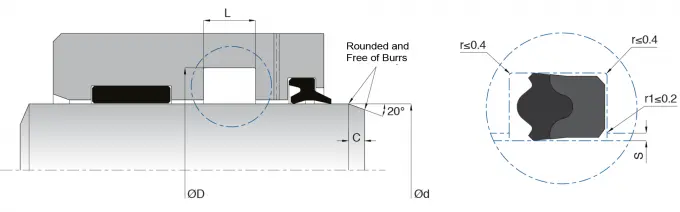

| d (f8) | D (H8) | L (+0.2/-0) | C | MATERIAL | |
| KL13-020 | 20 | 28 | 6.3 | 2.5 | NBR |
| KL13-022 | 22 | 30 | 6.3 | 2.5 | NBR |
| KL13-025 | 25 | 33 | 6.3 | 2.5 | NBR |
| KL13-028 | 28 | 36 | 6.3 | 2.5 | NBR |
| KL13-030 | 30 | 38 | 6.3 | 2.5 | NBR |
| KL13-030/1 | 30 | 42 | 9 | 3 | NBR |
| KL13-035 | 35 | 43 | 6.3 | 2.5 | NBR |
| KL13-040 | 40 | 48 | 6.3 | 2.5 | NBR |
| KL13-045 | 45 | 55 | 8 | 3 | NBR |
| KL13-050 | 50 | 60 | 8 | 3 | NBR |
| KL13-055 | 55 | 65 | 8 | 3 | NBR |
| KL13-060 | 60 | 70 | 8 | 3 | NBR |
| KL13-065 | 65 | 77 | 9.5 | 3 | NBR |
| KL13-110 | 110 | 125 | 12 | 4.5 | NBR |
