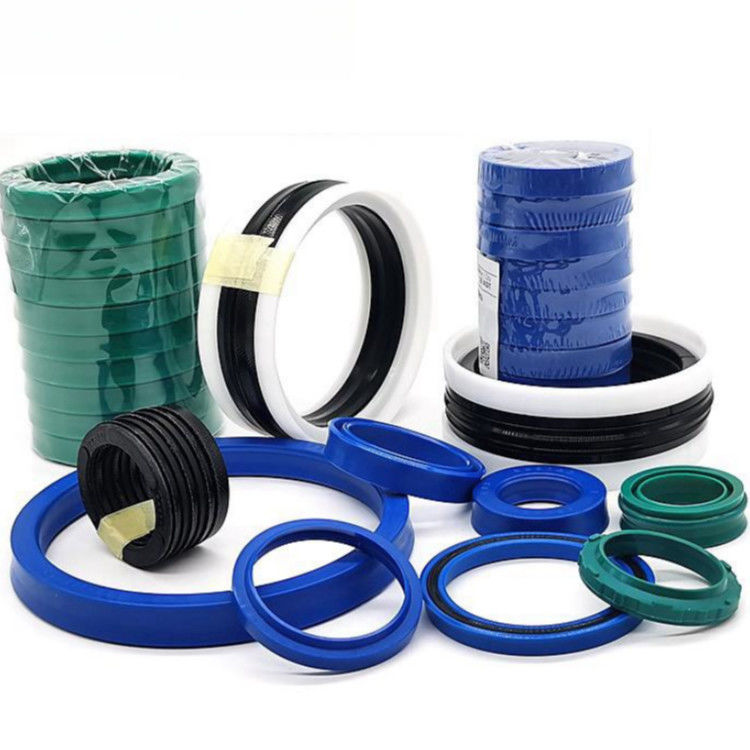

Single Acting U Cup Piston Seal / Polyurethane Hydraulic Seals For Light Duty Cylinders
product detail
Product Details
Style:
U Cup Piston Seal
Temperature (max) °C-1:
-40/+100
Temperature (max) °C-2:
-30/+105
Material:
PU / NBR
Pressure (max) Bar:
400/150
Sliding Speed (max)- M/s:
0.5
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

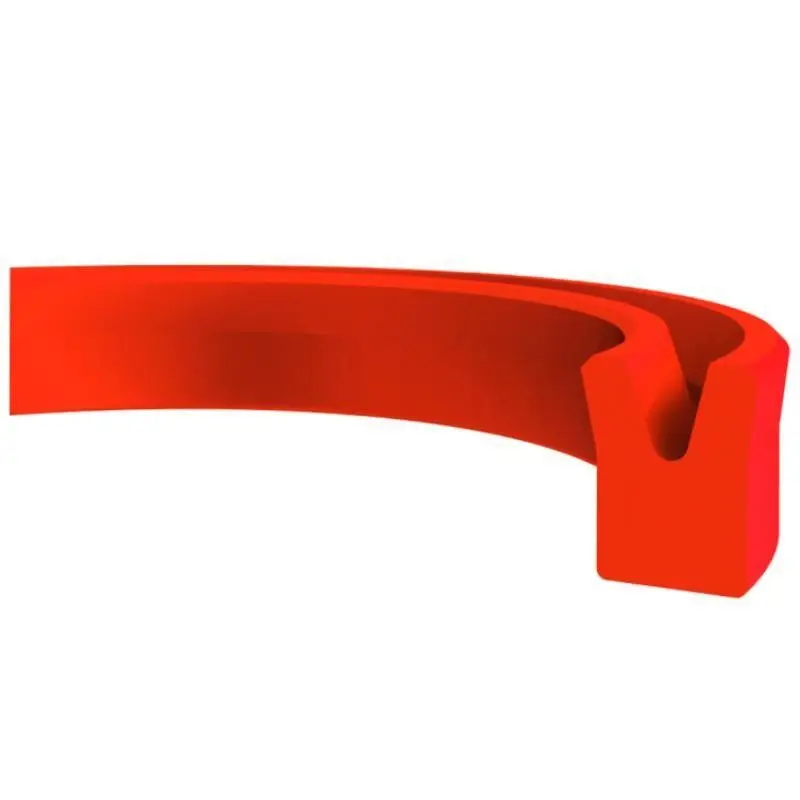

Single Acting Symmetrical U-Cup Be Produced From Polyurethane Material For Use In Light Duty Cylinders.
KL20 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage.
Advantages
• Wide range of dimensions
• Economical sealing solution
• Good dynamic and static sealing
• Good locking feature
• Economical sealing solution
• Good dynamic and static sealing
• Good locking feature
Area of Application
• Standard industrial cylinders
• Agricultural cylinders
• Agricultural cylinders

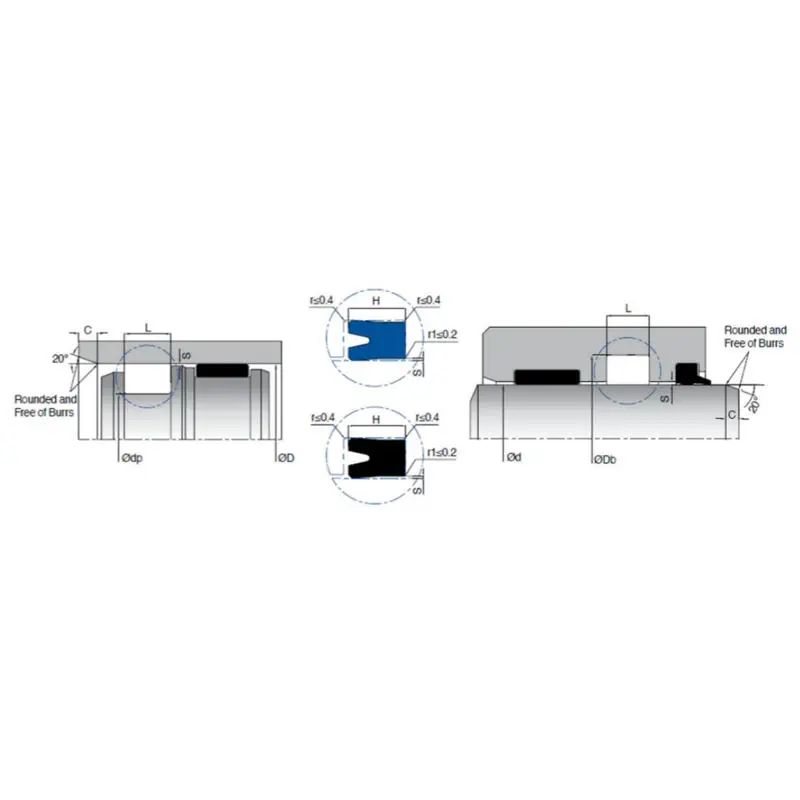

| d(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MATERIAL | |
| K20-003/5 | 3 | 8 | 5 | 4.5 | 3 | NB |
| K20-004 | 4 | 10 | 6 | 5 | 3.5 | NB |
| K20-004/2 | 4 | 12 | 4.5 | 4 | 4.5 | NB |
| K20-004/3 | 4 | 10 | 4.5 | 4 | 3.5 | NB |
| K20-004/3 PU | 4 | 10 | 4.5 | 4 | 3.5 | PU |
| K20-004/4 | 4 | 7.5 | 3.5 | 3 | 2.5 | NB |
| K20-004/6 | 4 | 10 | 7 | 6 | 3.5 | NB |
| K20-004/6 PU | 4 | 10 | 7 | 6 | 3.5 | PU |
| K20-005/2 | 5 | 11 | 6 | 5 | 3.5 | NB |
| K20-005/2 PU | 5 | 11 | 6 | 5 | 3.5 | PU |
| K20-005/4 | 5 | 10 | 6 | 5 | 3 | NB |
| K20-005/4 PU | 5 | 10 | 6 | 5 | 3 | PU |
| K20-005/5 | 5 | 9 | 2.9 | 2.4 | 2.5 | NB |
| K20-005/6 | 5 | 12 | 6 | 5 | 4 | NB |
| K20-005/6 PU | 5 | 12 | 6 | 5 | 4 | PU |
| K20-005/8 | 5 | 12 | 4.5 | 4 | 4 | NB |
| K20-006 | 6 | 9 | 2.5 | 2 | 2 | NB |
| K20-006/1 | 6 | 12 | 7 | 6 | 3.5 | NB |
| K20-006/1 PU | 6 | 12 | 7 | 6 | 3.5 | PU |
| K20-006/2 | 6 | 12 | 8 | 7 | 3.5 | NB |
| K20-006/2 PU | 6 | 12 | 8 | 7 | 3.5 | PU |
| K20-006/3 | 6 | 10 | 3.5 | 3 | 2.5 | NB |
| K20-006/3 PU | 6 | 10 | 3.5 | 3 | 2.5 | PU |
| K20-006/6 | 6 | 12 | 4.5 | 4 | 3.5 | NB |
| K20-006/6 PU | 6 | 12 | 4.5 | 4 | 3.5 | PU |
| K20-006/9 | 6 | 13 | 6.5 | 5.5 | 4 | NB |
| K20-006/9 PU | 6 | 13 | 6.5 | 5.5 | 4 | PU |
| K20-006/12 | 6 | 14 | 4.5 | 4 | 4 | NB |
| K20-006/12 PU | 6 | 14 | 4.5 | 4 | 4 | PU |
| K20-006/14 | 6 | 12 | 6 | 5 | 3.5 | NB |
| K20-007/5 | 7 | 12 | 4.5 | 4 | 3 | NB |
| K20-008 | 8 | 18 | 9 | 8 | 5.5 | NB |
| K20-008 PU | 8 | 18 | 9 | 8 | 5.5 | PU |
| K20-008/1 | 8 | 14 | 7 | 6 | 3.5 | NB |
| K20-008/1 PU | 8 | 14 | 7 | 6 | 3.5 | PU |
| K20-008/2 | 8 | 16 | 7 | 6 | 4.5 | NB |
| K20-008/2 PU | 8 | 16 | 7 | 6 | 4.5 | PU |
| K20-008/3 | 8 | 16 | 9 | 8 | 4.5 | NB |
| K20-008/3 PU | 8 | 16 | 9 | 8 | 4.5 | PU |
| K20-008/5 | 8 | 14 | 4.5 | 4 | 3.5 | NB |
| K20-008/5 PU | 8 | 14 | 4.5 | 4 | 3.5 | PU |
| K20-008/8 | 8 | 12 | 6 | 5 | 2.5 | NB |
| K20-008/10 | 8 | 15 | 7 | 6 | 4 | NB |
| K20-008/16 | 8 | 12 | 4.5 | 4 | 2.5 | NB |
| K20-008/16 PU | 8 | 12 | 4.5 | 4 | 2.5 | PU |
| K20-009/1 | 9 | 19 | 7 | 6 | 5.5 | NB |
| K20-009/1 PU | 9 | 19 | 7 | 6 | 5.5 | PU |
| K20-009/2 | 9 | 16 | 4.5 | 4 | 4 | NB |
| K20-009/2 PU | 9 | 16 | 4.5 | 4 | 4 | PU |
