Water Resistant Single Acting Rod Seals Low Swelling With Adjustable Housing
product detail
Product Details
Name:
Single Acting Rod Seals
Material:
FABRIC NBR
Pressure (max) Bar:
250
Temperature (max) °C:
-30/+80
Sliding Speed (max)- M/s:
2.0
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Can be customized according to needs
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months

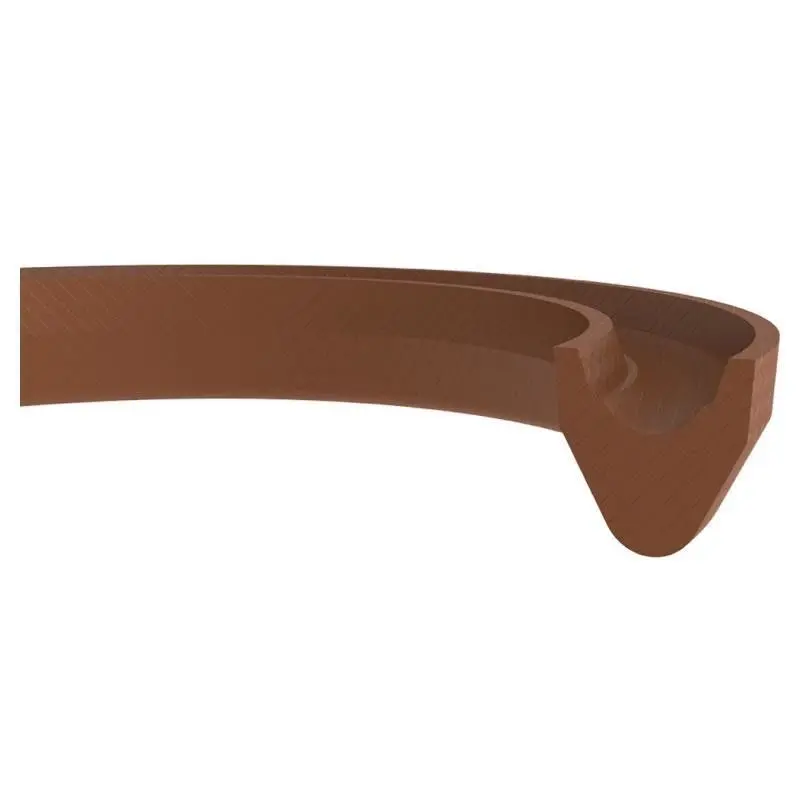

KL108 Chevron rings are single acting rod seals made by water resistant fabric impregnated elastomer, specially designed for water and wateroil mixture. They are high pressure pump seals working at high pressure washers.
The rod seal is designed to ensure that pressurized fluid does not leak out of the system as the rod cycles back and forth (dynamic pressure sealing). The rod seal is the most critical seal on any type of fluid power equipment. A leaking rod seal not only reduces equipment performance, but also causes environmental issues.
Advantages
• High speeds
• Water compatibility and low swelling
• Long service life
• Adjustable housing
• High abrasion resistance
• Insensibility against shock loads and pressure peaks
• Low compression set
Area of Application
• Pressure washers

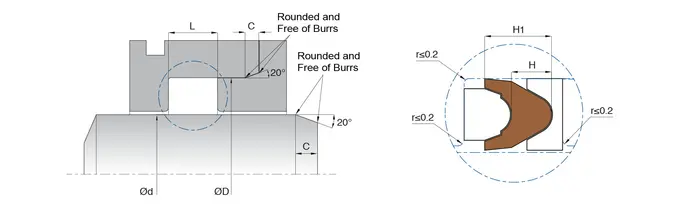

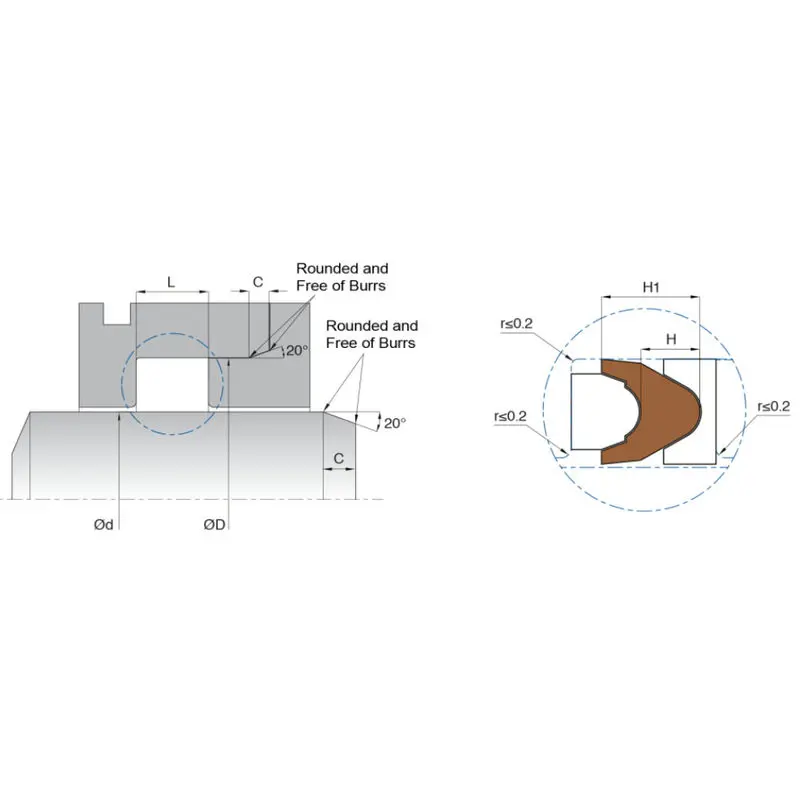

| d (f7) | D (H9) | H | H1 | C | MATERIAL | |
| KL108-024 | 15 | 24 | 3 | 5 | 6 | FABRIC NBR |
| KL108-025 | 15 | 25 | 3 | 5 | 6 | FABRIC NBR |
| KL108-026 | 18 | 26 | 3 | 5 | 6 | FABRIC NBR |
| KL108-028 | 15 | 28 | 4 | 6.5 | 7 | FABRIC NBR |
| KL108-028/1 | 18 | 28 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108028/2 | 18 | 28 | 4 | 6 | 6 | FABRIC NBR |
| KL108-030 | 15 | 30 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-030/1 | 16 | 30 | 4 | 7 | 8 | FABRIC NBR |
| KL108-030/2 | 18 | 30 | 3.5 | 6 | 7 | FABRIC NBR |
| KL108-030/3 | 20 | 30 | 3.3 | 5.5 | 6 | FABRIC NBR |
| KL108-032 | 18 | 32 | 4.6 | 7.1 | 8 | FABRIC NBR |
| KL108-032/1 | 20 | 32 | 4.5 | 6.7 | 7 | FABRIC NBR |
| KL108-032/2 | 22 | 32 | 3.3 | 5.7 | 6 | FABRIC NBR |
| KL108-034 | 18 | 34 | 4 | 6 | 8 | FABRIC NBR |
| KL108-034/1 | 20 | 34 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-035 | 20 | 35 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-035/1 | 22 | 35 | 4.5 | 7 | 7 | FABRIC NBR |
| KL108-035/2 | 24 | 35 | 4 | 6 | 7 | FABRIC NBR |
| KL108-035/3 | 25 | 35 | 3.3 | 5.5 | 6 | FABRIC NBR |
| KL108-037 | 25 | 37 | 3.6 | 6.7 | 7 | FABRIC NBR |
| KL108-037/1 | 20 | 37 | 4.5 | 7.5 | 9 | FABRIC NBR |
| KL108-038 | 22 | 38 | 3.5 | 8.5 | 8 | FABRIC NBR |
| KL108-038/1 | 25 | 38 | 4.6 | 7 | 7 | FABRIC NBR |
| KL108-038/2 | 28 | 38 | 4.1 | 6.1 | 6 | FABRIC NBR |
| KL108-045 | 30 | 45 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-048 | 36 | 48 | 3.5 | 6 | 7 | FABRIC NBR |
| KL108-048/1 | 38 | 48 | 3.5 | 6 | 6 | FABRIC NBR |
| KL108-050/1 | 40 | 50 | 3.5 | 6 | 6 | FABRIC NBR |
| KL108-055 | 40 | 55 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-056 | 36 | 56 | 6 | 10 | 9 | FABRIC NBR |
| KL108-060 | 45 | 60 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-060/1 | 50 | 60 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108-065 | 50 | 65 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-065/1 | 55 | 65 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108-070 | 55 | 70 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-076 | 60 | 76 | 5 | 8 | 8 | FABRIC NBR |
| KL108-080 | 65 | 80 | 4.5 | 7.5 | 8 | FABRIC NBR |
