Wear Resistant Hydraulic Rod Seals KL05 PU / POM Material For Mobile Cylinder
product detail
Product Details
Style:
Hydraulic Cylinder Seals
Temperature (max) °C:
-40/+100
Material:
PU / POM
Sliding Speed (max)- M/s:
0.5
Application:
Construction Machinery / Cranes
Pressure (max) Bar:
400
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months

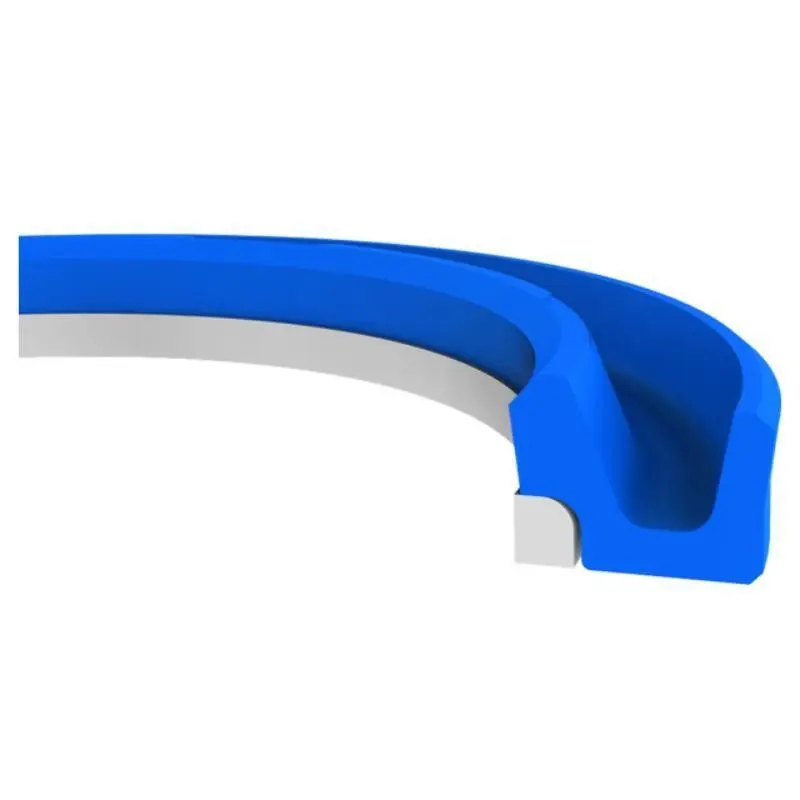

KL05 Buffer Seal Sets Consists Of A TPU Sealing Ring And Thermoplastic Back-Up Ring Which Is Resistant For Peak Pressure
KL05 buffer ring works as tandem with a main rod seal. KL05 consists of a TPU sealing ring and thermoplastic back-up ring which is resistant for peak pressures in hydraulic applications and offers additional safety for the complete system.
Advantages
• No hydrodynamic pressure
• Low static and dynamic friction
• Designed for grooves according to ISO 7425/2
• Excellent system protection at pressure peaks
• High wear resistance
Area of Application
• Medium and heavy duty cylinders
• Presses
• Construction machinery
• Mobile Cylinders
• Cranes

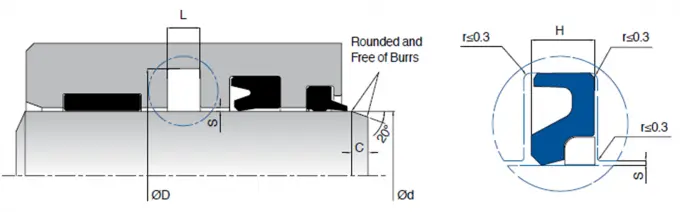

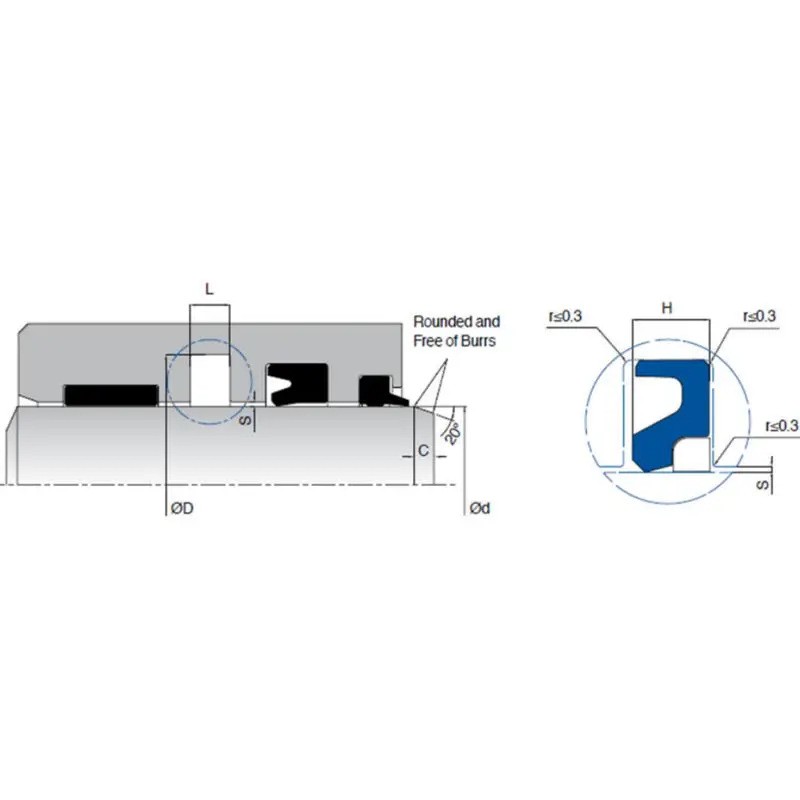

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL05-030 | 30 | 40.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-032 | 32 | 42.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-035 | 35 | 45.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-036 | 36 | 46.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-038 | 38 | 48.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-040 | 40 | 55.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-040/1 | 40 | 50.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-045 | 45 | 60.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-045/1 | 45 | 55.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-048 | 48 | 63.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-050 | 50 | 65.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-050/1 | 50 | 60.7 | 4.2 | 3.9 | 5.5 | PU |
| KL05-055 | 55 | 70.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-055/1 | 55 | 70.1 | 6.3 | 5.8 | 5.5 | PU |
| KL05-056 | 56 | 71.1 | 6.3 | 5.8 | 5.5 | PU |
| KL05-056/1 | 56 | 71.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-060 | 60 | 75.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-060/1 | 60 | 75.1 | 6.3 | 5.8 | 5.5 | PU |
| KL05-063 | 63 | 78.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-065 | 65 | 80.5 | 6.3 | 5.8 | 5.5 | PU |
| KL05-070 | 70 | 85.5 | 6.3 | 5.8 | 6 | PU |
| KL05-070/1 | 70 | 85.1 | 6.3 | 5.8 | 6 | PU |
| KL05-075 | 75 | 90.5 | 6.3 | 5.8 | 6 | PU |
| KL05-075/1 | 75 | 90.1 | 6.3 | 5.8 | 6 | PU |
| KL05-078 | 78 | 93.1 | 6.3 | 5.8 | 6 | PU |
| KL05-080 | 80 | 95.5 | 6.3 | 5.8 | 6 | PU |
| KL05-085 | 85 | 100.5 | 6.3 | 5.8 | 6 | PU |
| KL05-090 | 90 | 105.5 | 6.3 | 5.8 | 6 | PU |
| KL05-095 | 95 | 110.5 | 6.3 | 5.8 | 6 | PU |
| KL05-100 | 100 | 115.5 | 6.3 | 5.8 | 6 | PU |
| KL05-105 | 105 | 120.5 | 6.3 | 5.8 | 6 | PU |
| KL05-110 | 110 | 125.5 | 6.3 | 5.8 | 6 | PU |
| KL05-115 | 115 | 130.5 | 6.3 | 5.8 | 6 | PU |
| KL05-120 | 120 | 135.5 | 6.3 | 5.8 | 6 | PU |
| KL05-125 | 125 | 140.5 | 6.3 | 5.8 | 6 | PU |
| KL05-130 | 130 | 145.5 | 6.3 | 5.8 | 6 | PU |
